Memphis Shades MEM 9958 Instructions-Parts List

Sportshield mounting kit for h/w victory

TOOLS REQUIRED: 3/16" Allen wrench (provided)

Install the mounting plates onto the windshield using the pre-assembled bolts on the mounting plates. The

rubber grommet should be inserted through the holes in the windshield so that the flat round part of the

washer lays flat on each side of the windshield. On each plate, get both tabs started before you tighten

them. (see Figure 1.1 & 1.2)

Loosely install the four fork clamps 1-3/4" inches apart. (see Figure 2)

Loosen the four mounting bolts that are to hold the mounting plates to the fork clamps, and slide the

mounting plates onto the fork clamps. (see Figure 3)

Adjust the height, angle, and alignment of the shield. Carefully check clearance from steering stop to stop,

and tighten all mounting bolts.

WARNING: This is a quick disconnect kit. Always tighten down all mounting bolts after removing or

installing the windshield every time.

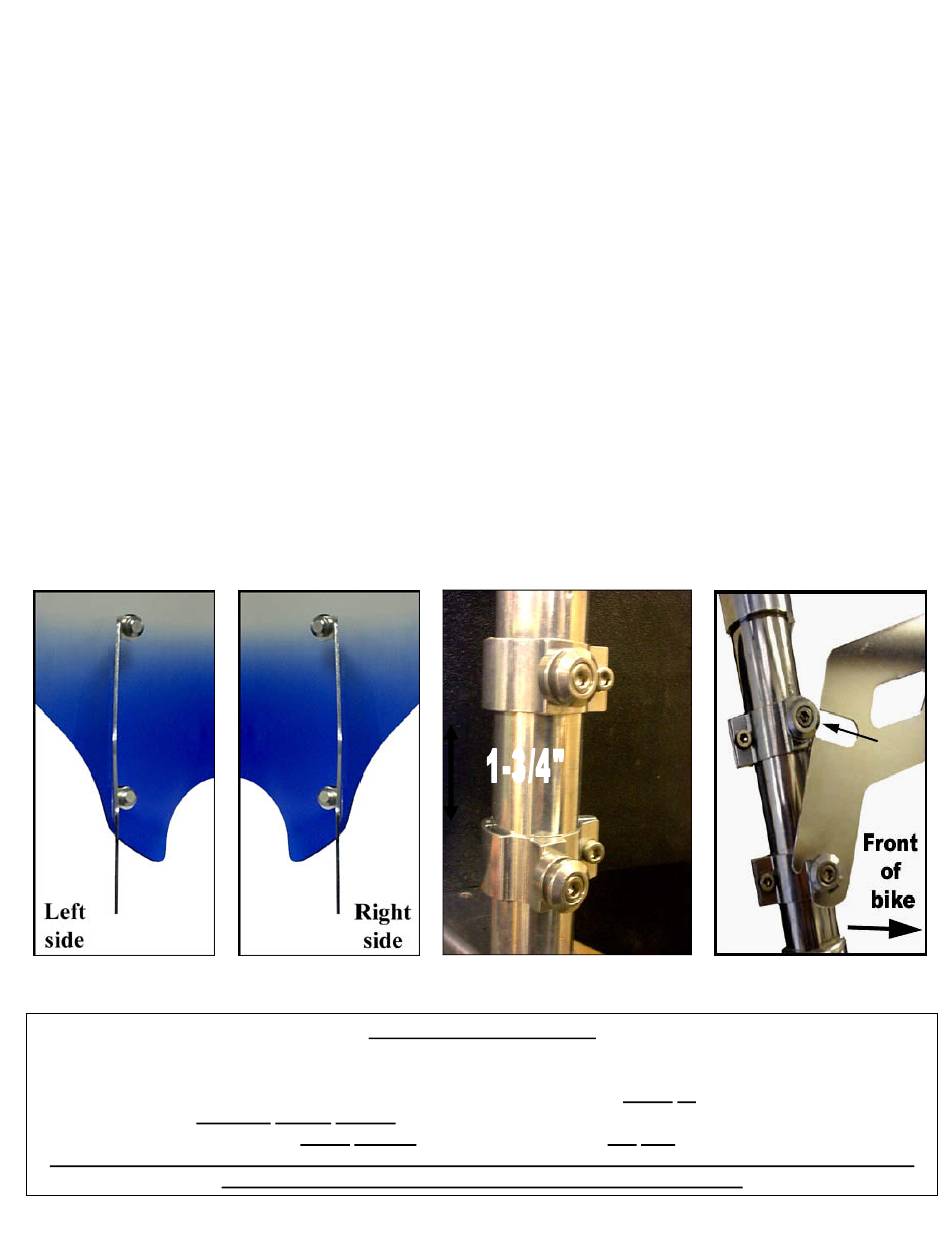

Fig. 1.1 Left side plate

To clean your windshield, use only warm water and a mild non-abrasive, dishwashing liquid. Use a soft cloth,

such as a T-shirt or flannel cloth. To protect your windshield, please use Novus #2 to remove minor scratches,

or use a polish like Memphis Shades Shinola which is specially designed for plastic windshields; glass cleansing

agents will cause severe damage to your windshield and will void your warranty.

Never use any glass products, petroleum based chemicals, or cleaning agents with ammonia, bleach or any harsh

SPORTSHIELD MOUNTING KIT FOR H/W VICTORY

INSTRUCTIONS / PARTS LIST

Note: *(Wide) – Tabs point in towards each other.

Fig. 1.2 Right side plate Fig. 2 fork clamps

chemicals. This includes Rain-X, brake fluid, acetone, and gasoline.

MEM 9958

Fig. 3 Plate mounting
