Memphis Shades MEM-9941 Mounting Instructions

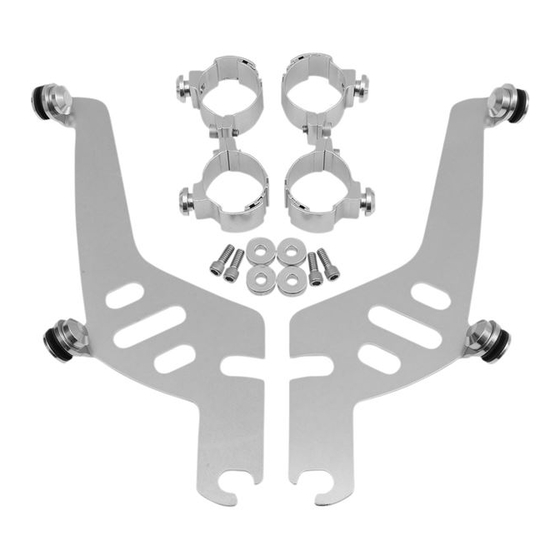

MEM-9941 METRIC WIDE SPORTS SHIELD MOUNTING KIT
Read and follow these directions carefully.
During installation, make certain that when turning the
forks, there can be no interference with wiring or cables
AND, that the windshield can not hit the gas tank,
through the windshield's full range of adjustment.
This is a quick change kit, ALWAYS tighten all mounting
bolts after removing or installing the windshield!
The improper installation of this kit and related compo-
nents could result in serious injury or death.
No additional tools required for this kit.
1. Cover gas tank and front fender with a towel to avoid
damage during installation.
2. Install the windshield mounting plates onto the windshield,
using the bolts that are pre-assembled on the mounting plates.
The Santoprene grommets should be inserted through the
holes in the windshield so that the flat round part of the grom-
met lies flat on each side of the plastic. The tabs point in to-
wards the headlight when installed correctly. (see figure 1 and
4)
3. Loosely install the four Fork Clamps on the forks, approxi-
mately 2" apart. (see figure 2)
4. Loosen the four anchor bolts that are to hold the windshield
to the Fork Clamps, and slip the windshield mounting plates
and windshield onto the fork clamps. (see figure 3)
5. Adjust the height, angle and alignment of the windshield
and tighten ALL bolts.
Note: The Tabs point in towards the headlight when
installed correctly. (see figure 4 page 2)
REMEMBER: This is a quick change kit. ALWAYS
tighten all mounting bolts after removing or installing
the windshield!

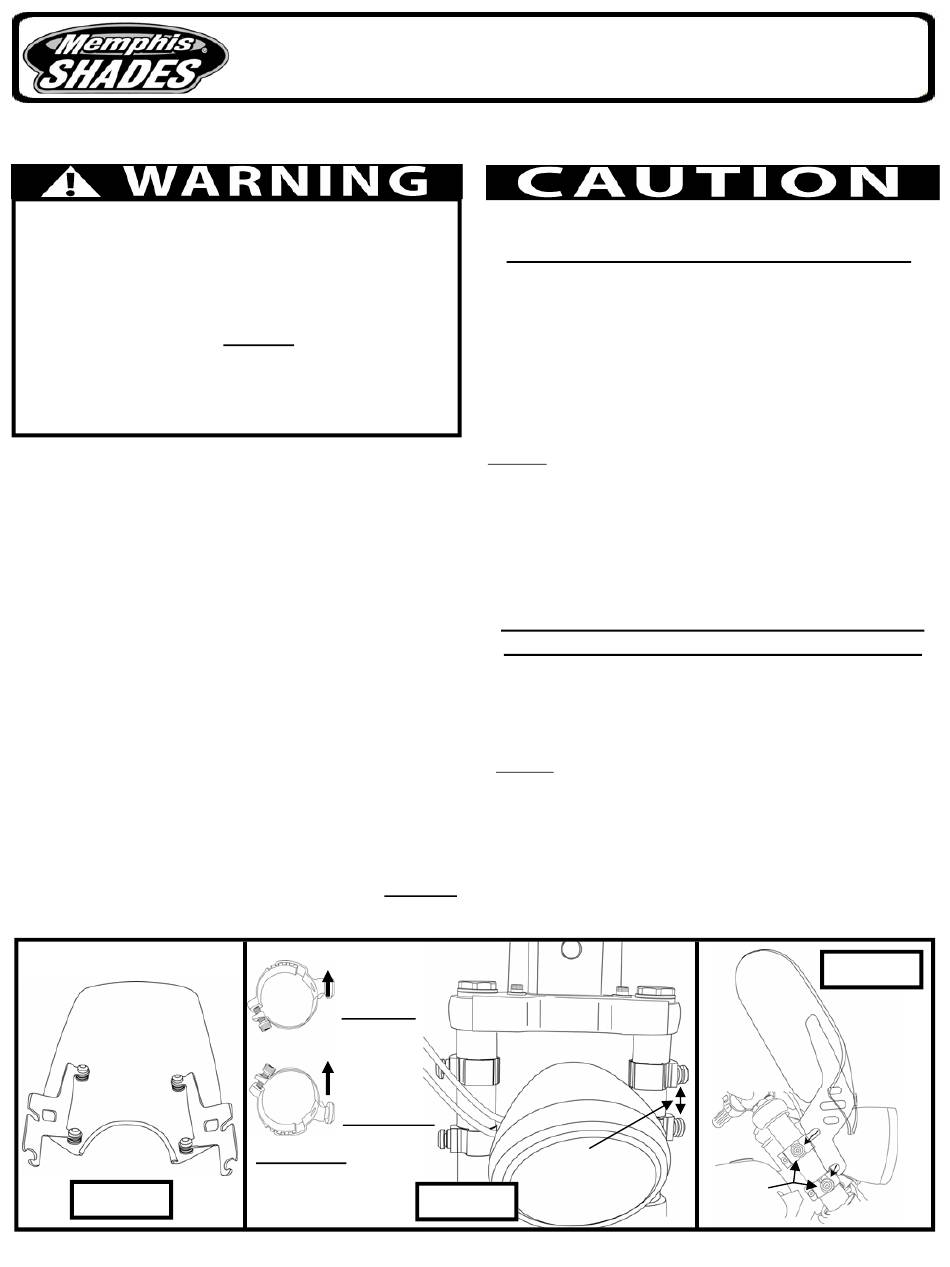

Figure 1
MOUNTING INSTRUCTIONS
Throttle side,
front of bike
CORRECT
Throttle side,
front of bike
INCORRECT
WARNING:
"Mounting clamps
backwards will cause
Figure 2
damage to your tank."
IMPORTANT CARE AND CLEANING INSTRUCTIONS
Memphis Shades Windshields and Lowers are made of
Lucite® acrylic, and will last for years with proper care.
Clean your windshield with plenty of soapy water — mild
dishwashing liquid is best — and a soft cotton cloth. Use your
bare hand to feel and dislodge bugs, or cover with a wet soapy
towel and let it soak. Don't use paper towels and don't scrape
with anything. Small scratches can be removed with NOVUS
# 2.
NEVER use any glass cleaning products, petroleum based
chemicals, or cleaning agents with ammonia, bleach or any
other harsh chemicals. This includes (but not limited to)
RainX, brake fluid, acetone, paint thinner, benzene and
gasoline. "If it hurts your nose, it will hurt the plastic."
Glass cleansing agents will cause severe damage
to your windshield, and will void your warranty.
NOTE: At certain times of the day the Sunlight can reflect
off the curvature of a windshield and cause extreme heat
build-up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an opaque
object over the instruments or adjust the windshield to avoid
reflections.
Space
Approx.
2" apart.
Figure 3
Anchor
Bolts
MEM9941 11-13-07
