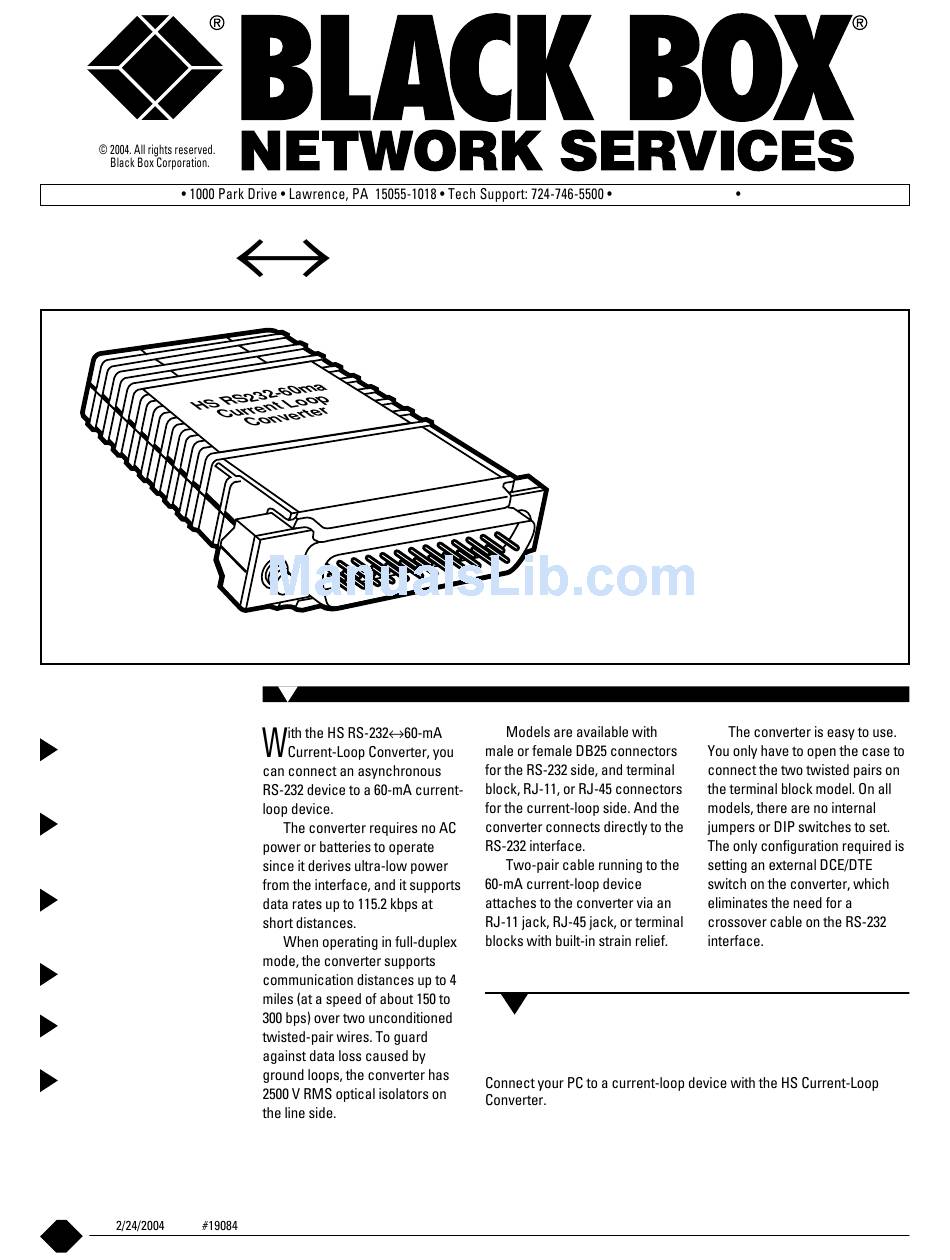

Black Box Corporation
www.blackbox.com e-mail: info@blackbox.com
HS RS-232
60-MA CURRENT-LOOP CONVERTERS
Connect an async
RS-232 device to a
60-mA Current-Loop device.
Key Features
Only one converter is
needed for each 60-mA
conversion to RS-232.
Connect to the current
loop via two twisted
pairs.
External switch
to set DTE/DCE
configuration.
Operate in full-duplex
mode only.
Support data rates up
Typical Application
to 115.2 kbps.
Models available with
male or female DB25
RS-232 connectors
and terminal block,
RJ-11, or RJ-45 current
loop connectors.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box CL080A-F
Summary of Contents for Black Box CL080A-F
- Page 1 Black Box Corporation www.blackbox.com e-mail: info@blackbox.com HS RS-232 60-MA CURRENT-LOOP CONVERTERS Connect an async RS-232 device to a 60-mA Current-Loop device. Key Features Only one converter is needed for each 60-mA conversion to RS-232. Connect to the current loop via two twisted pairs.
-
Page 2: Specifications
The diagram at right shows the current-loop connection of the strain-relief assembly. Specifications Transmission Line: Distance (Maximum): Isolation: Maximum Speed: Temperature Range: Surge Suppression: Humidity: Altitude: Interfaces: Power Supply: Connectors: Size: Weight: Technically Speaking Ordering Information ITEM CODE...
