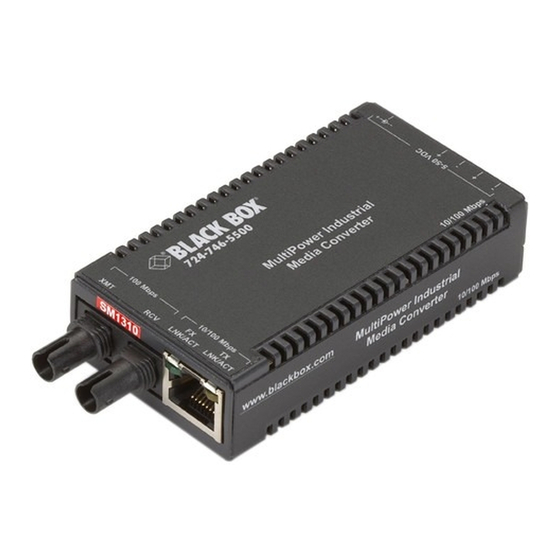

MultiPower Industrial Media Converters
Choose from four different ways
to power these hardened media converters.
LIC022A-R2
LIC026A-R2
LIC023A-R2
LIC027A-R2
LIC024A-R2
LIC052A-R2
LIC025A-R2
LIC053A-R2
LIC054A-R2
LIC055A-R2
LIC056A-R2
LIC057A-R2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIC022A-R2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Black Box LIC022A-R2

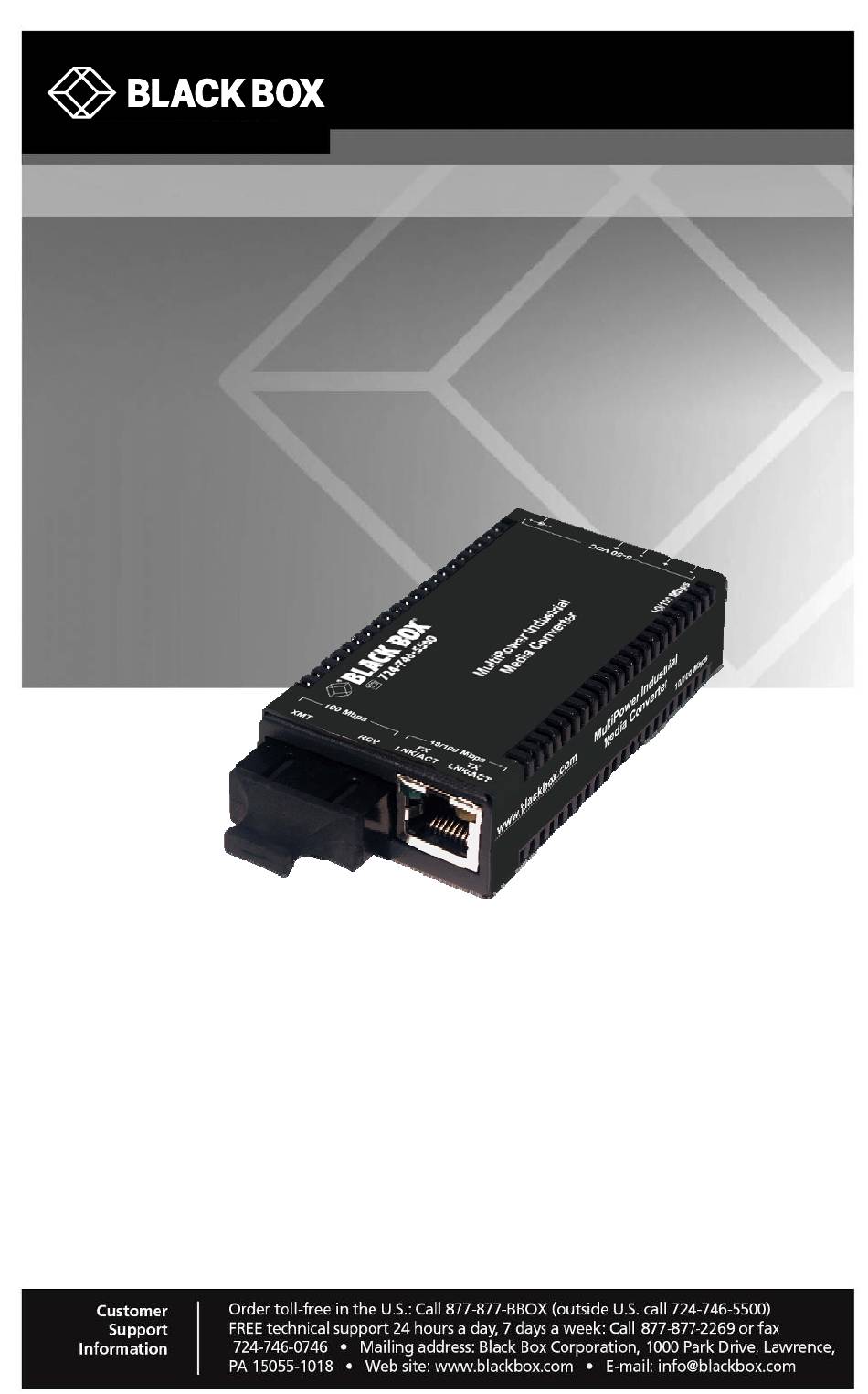

  • Page 1 LIC022A-R2 LIC026A-R2 LIC054A-R2 LIC023A-R2 LIC027A-R2 LIC055A-R2 LIC024A-R2 LIC052A-R2 LIC056A-R2 LIC025A-R2 LIC053A-R2 LIC057A-R2 MultiPower Industrial Media Converters Choose from four different ways to power these hardened media converters.
  • Page 2 TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Page 2 877-877-2269 | blackbox.com...
  • Page 3 Class B certified device. This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada. LIC022A-R2 877-877-2269 | blackbox.com Page 3...
  • Page 4 Following these steps through proper disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about proper disposal, please contact local authorities, waste disposal services, or the point of purchase for this equipment. Page 4 877-877-2269 | blackbox.com LIC022A-R2...
  • Page 5: Table Of Contents

    Powering the MultiPower Industrial Media Converters ......10 About Power over Ethernet (PoE) and MultiPower Industrial Media Converters.................... 10 DC Terminal Block Wiring Instructions..........10 Operation....................11 Contacting Black Box ................12 Fiber Optic Cleaning Guidelines ............13 Electrostatic Discharge Precautions ............ 14 LIC022A-R2 877-877-2269 | blackbox.com...
  • Page 6: Part Numbers

    Part Numbers Part Numbers Part Description Number LIC022A-R2 TP-TX/FX-MM1300-ST (5 km) LIC023A-R2 TP-TX/FX-MM1300-SC (5 km) LIC024A-R2 TP-TX/FX-SM1310/PLUS-ST (30 km) LIC025A-R2 TP-TX/FX-SM1310/PLUS-SC (30 km) LIC026A-R2 TP-TX/FX-SM1310/LONG-ST (80 km) LIC027A-R2 TP-TX/FX-SM1310/LONG-SC (80 km) LIC052A-R2 TP-TX/SSFX-SM1310-SC (1310xmt/1550rcv) (20km) LIC053A-R2 TP-TX/SSFX-SM1550-SC (1550xmt/1310rcv) (20km) LIC054A-R2...
  • Page 7: Specifications

    DC configurations -13°F to +185°F (-25°C to +85°C) With AC wall adapter +14°F to +122°F (-10°C to +50°C) Storage Temperature -40°F to +185°F (-40°C to +85°C) Humidity 5% to 95% (non-condensing) Dimensions 0.83"Hx1.80"Wx3.35"D (2.11x4.57x8.51 cm) LIC022A-R2 877-877-2269 | blackbox.com Page 7...
  • Page 8: Overview: About The Multipower Industrial Media Converters

    (-10ºC to +50ºC when using the AC adapter). When installing the MultiPower Industrial Media Converters in an 18 slot tray or using DC power, the temperature range supported is -13°F to +185°F (-25°F to +85°F). Page 8 877-877-2269 | blackbox.com LIC022A-R2...
  • Page 9: Install The Multipower Industrial Media Converters

    When installing multiple MultiPower Industrial Media Converters on a DIN rail, the end user can connect to one DC input source, and then cascade from one DC block to the next, until reaching the maximum current available. LIC022A-R2 877-877-2269 | blackbox.com Page 9...
  • Page 10: Powering The Multipower Industrial Media Converters

    (for example: 48 volts) take precautions to limit the voltage at the units terminal block. When turning on high voltage DC circuits, initial voltages may momentarily exceed the unit’s specification. Page 10 877-877-2269 | blackbox.com LIC022A-R2...
  • Page 11: Operation

    Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port. TX LNK/ACT Glows amber when a link is established on the copper port; blinks amber when activity is detected on the copper port. LIC022A-R2 877-877-2269 | blackbox.com Page 11...
  • Page 12: Contacting Black Box

    Chapter 5: Contacting Black Box 5. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 877-877-2269 or Fax: 724-746-0746...
  • Page 13: Fiber Optic Cleaning Guidelines

    2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device.
  • Page 14: Electrostatic Discharge Precautions

    Chapter 7: Electrostatic Discharge Precautions 7. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1.
  • Page 15 Notes LIC022A-R2 877-877-2269 | blackbox.com Page 15...
  • Page 16 877-877-2269 LIC022A-R2 Rev. 1 55-80722BB-00 Rev. B3...
