Appendix B: Additional wiring considerations | PoE: Magnetic lock, ASM and PIR

PoE: Magnetic lock, ASM and PIR

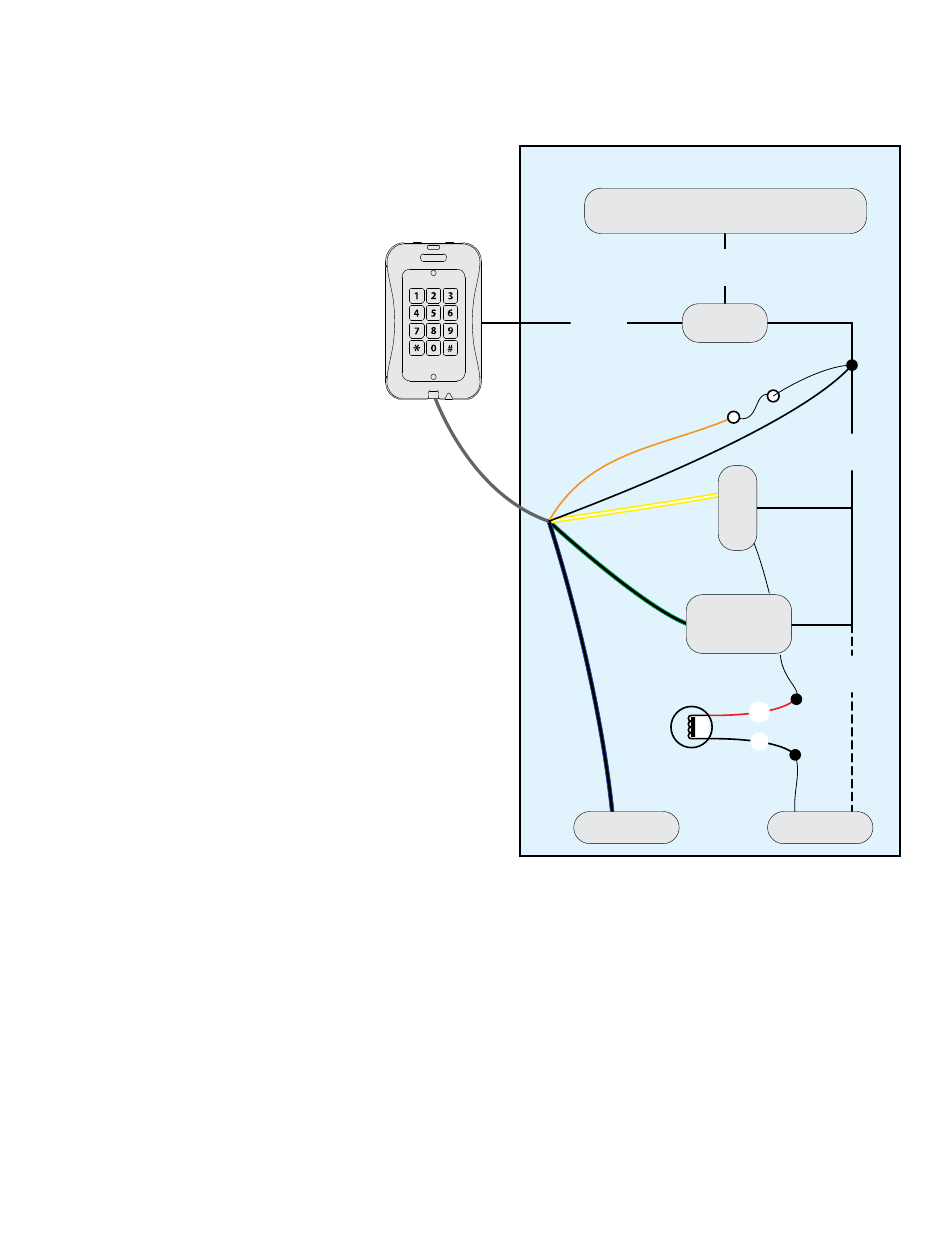

Typical Reader Controller install with:
• Magnetic lock
• ASM
• PIR motion detector
• In-rush supressor
• Door open sensor
• PoE splitter
• Input power
• PoE to the PoE splitter
• 12VDC from splitter to components
Installation tips
• PoE splitter and fuse isolated the magnetic
lock's power source to the inside of the
facility
Advanced Security Module (ASM)
• See
wiring on page 14 for more information.
• Splitter 12V to ASM power input and
ASM relay common contact
• ACC-IRS-4700 - Red wire goes to the 12V
supply (PoE splitter)
• 0.5 Amp fast-acting fuse: Littelfuse PN:
0208.500MXP or equivalent
• In-line fuse- holder: Littelfuse PN: 150274 or
equivalent
21 • Schlage • Reader controller
Inside facility
PoE equipped network switch
Cat 5
w/ PoE
Cat 5 PoE
w/o PoE splitter
0.5 A
fast-acting fuse
ASM
PIR motion
detector
(REX)
In-rush suppressor
PN: ACC-IRS-4700
(+)
(-)
Door sense
switch
12VDC
(2 wires)
Gnd
(1 wire)
Magnetic
lock
