Wiring | Lock wiring using PoE

Lock wiring using PoE

The Reader Controller supports a simplified configuration when PoE is
being used to supply the lock's power.
1. Connect the red wire on the Reader Controller to the positive lead
of the electric lock. See
wiring
2. Connect the negative lead of the lock to the black wire on the
Reader Controller.
3. See Managing inductive load challenges
info regarding the use of the BackEMF diode.

Door sensor wiring

Connecting the Reader Controller to a door sensor allows the host
access control system to detect if the door is ajar. Then the host access
control system can create alarms based on the door's state.
First, connect one terminal of the door sensor to the reader's blue wire.
Then connect the door sensor's other terminal to the Reader
Controller's common ground wire (black).
13 • Schlage • Reader controller

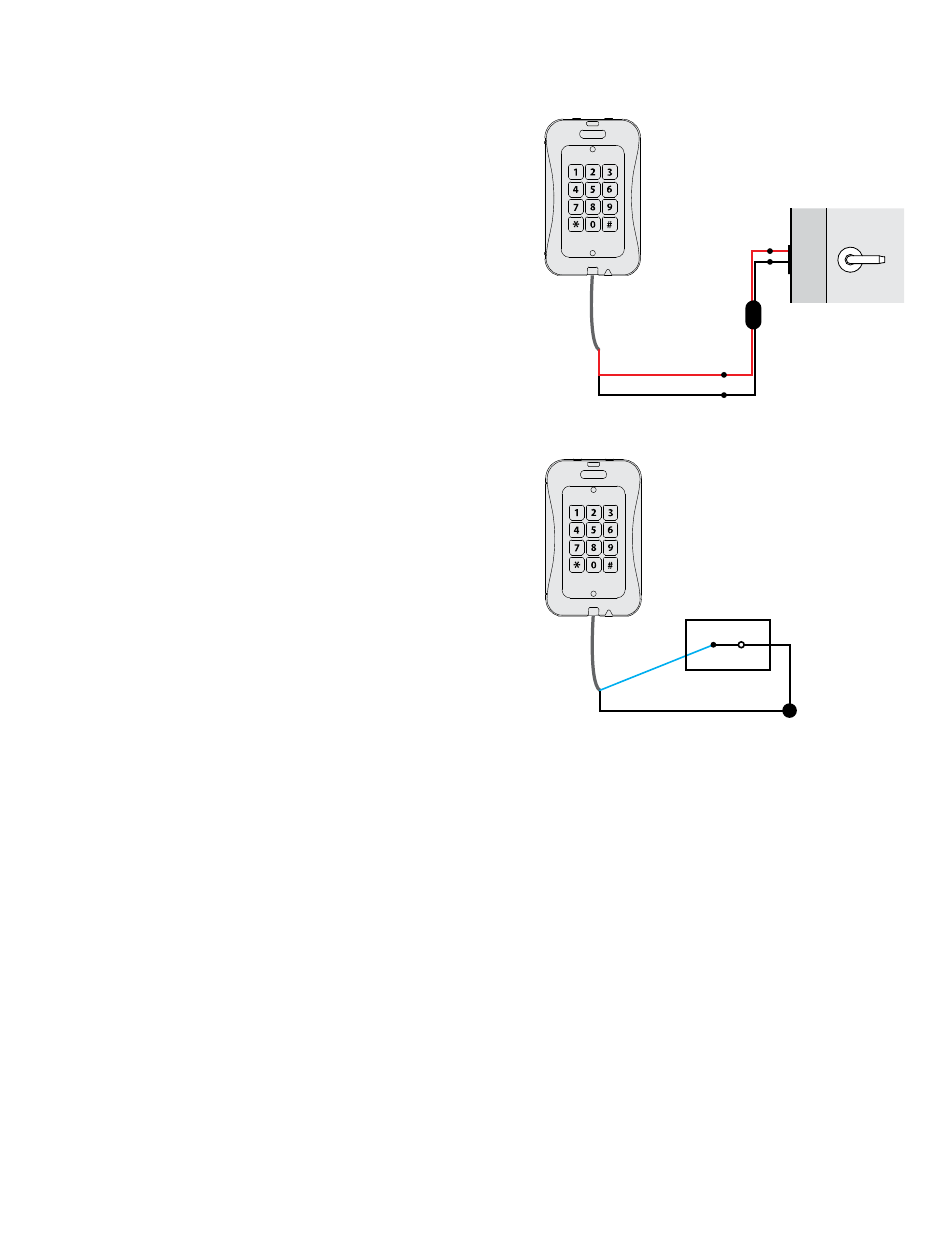

Figure 2.4: Typical fail-secure door lock
on page 20 for more
BackEMF
Protection Diode
Figure 2.4: Typical fail-secure door lock wiring
Door sensor
(normally closed)
Figure 2.5: Door sensor wiring
Lock and strike
