Appendix A: Power options | Dual power sources

Dual power sources

Typical Reader Controller install
with:
• Redundant power supplies
• Input power: PoE
• Input power: 12VDC
Solution highlights
• Improve the ACS fault-tolerance
design by supplying the Reader
Controller with electrical power
from two independent power
sources.
• With this design, if the Reader
Controller's connection to the
PoE nework switch is lost, the
Reader Controller will
automatically begin to draw its
power from the DC power
source.
Installation tips
• Schottky Diode:
• Manufacturer: Vishay/
General Semiconductor
• P/N: SB560-E3/54 or equivalent
• Install the BackEMF diode
• Red wire will provide the lock with +12VDC
18 • Schlage • Reader controller
BackEMF
protection
diode
Lock strike

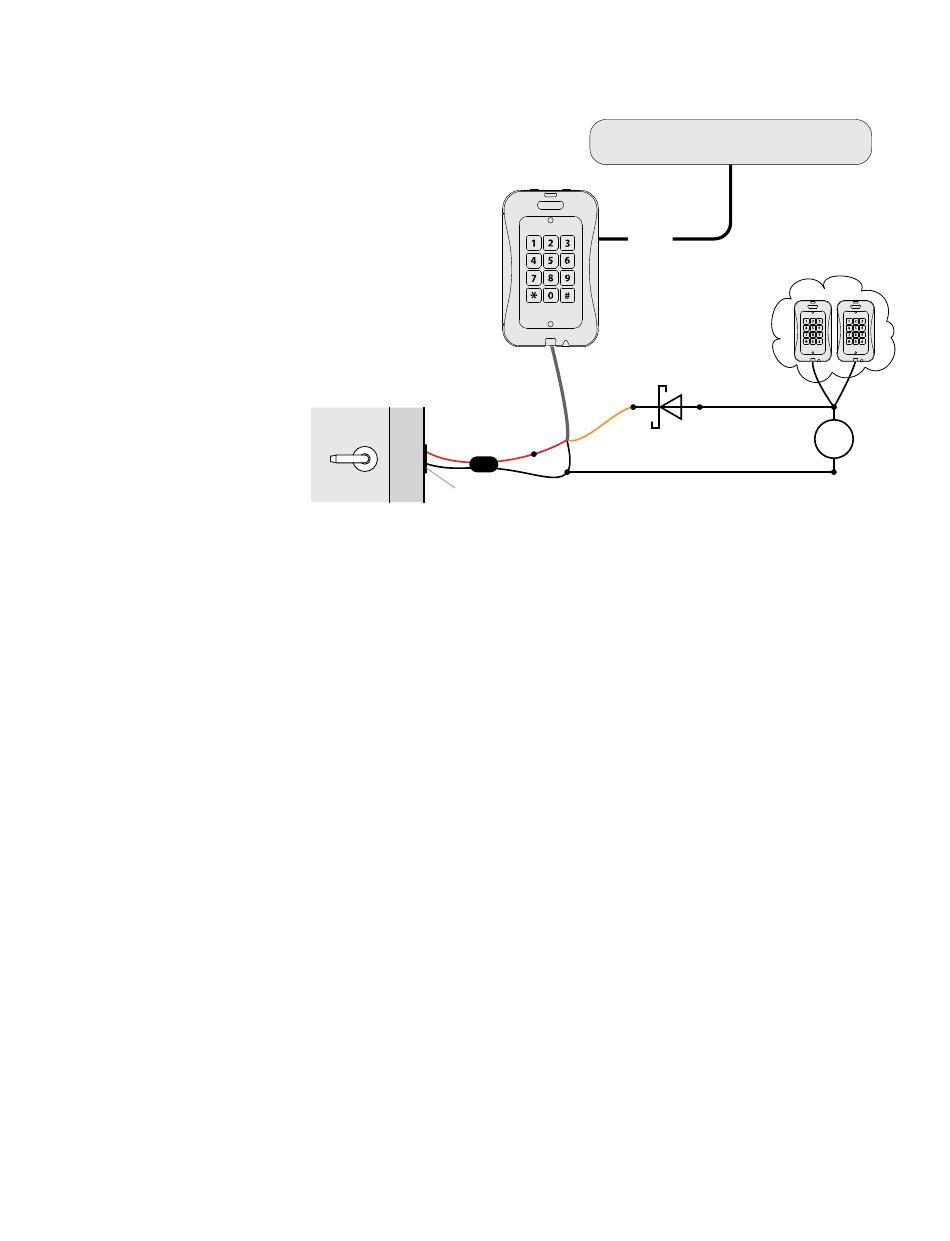

Figure 4.2: Dual power sources wiring
PoE equipped network switch
Cat 5
with PoE
Back-flow protection
Pigtail
diode (Schottky)
Additional reader
controllers
12VDC
+
regulated
-
power supply
