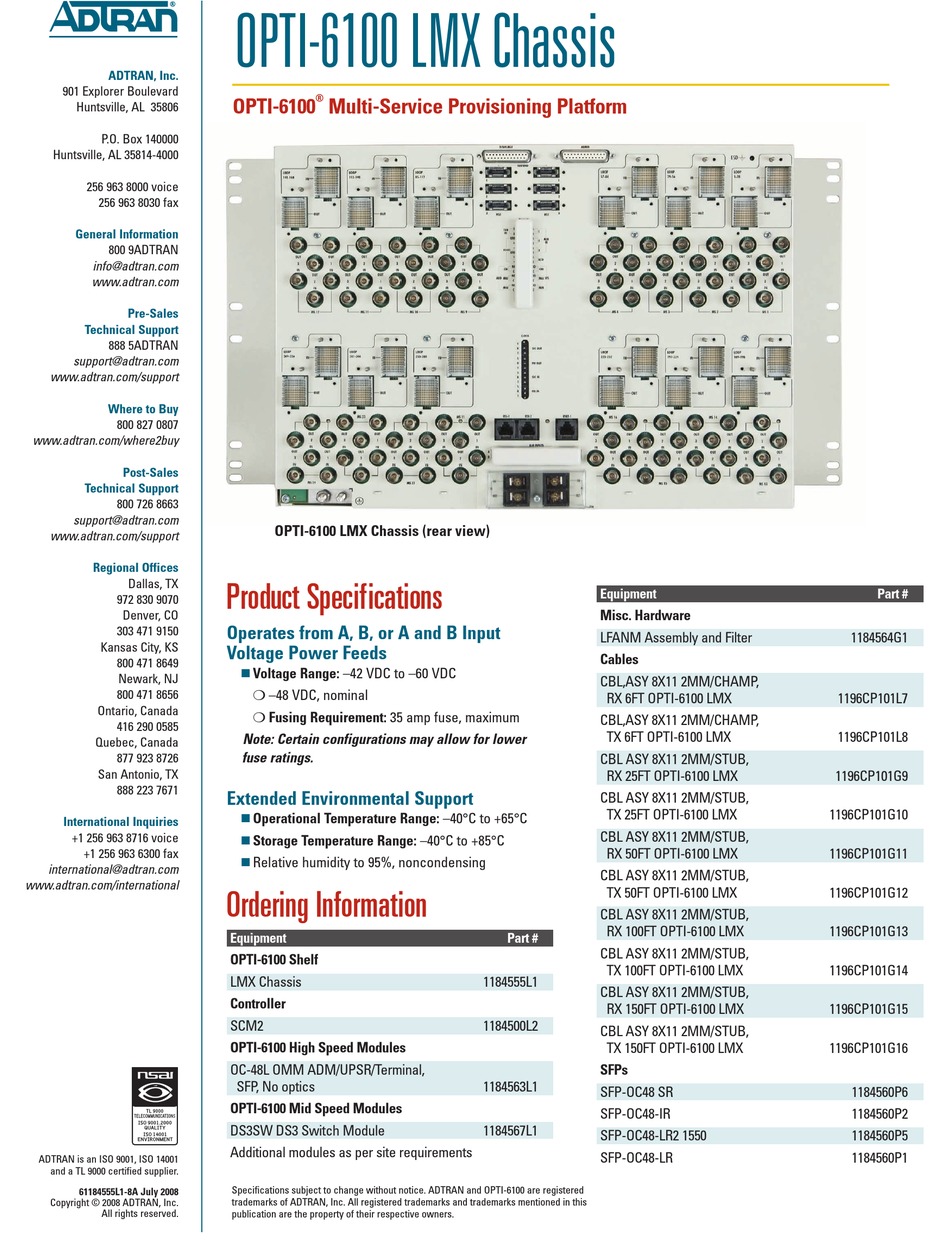

OPTI-6100 LMX Chassis
®
OPTI-6100 Multi-Service Provisioning Platform
OPTI-6100 LMX Chassis (rear view)
Product Specifications
Operates from A, B, or A and B Input
Voltage Power Feeds
Voltage Range: –42 VDC to –60 VDC
■
m –48 VDC, nominal
m Fusing Requirement: 35 amp fuse, maximum
Note: Certain configurations may allow for lower
fuse ratings.
Extended Environmental Support
Operational Temperature Range: –40°C to +65°C
■
Storage Temperature Range: –40°C to +85°C
■
Relative humidity to 95%, noncondensing
■
Ordering Information
Equipment
OPTI-6100 Shelf
LMX Chassis
Controller
SCM2
OPTI-6100 High Speed Modules
OC-48L OMM ADM/UPSR/Terminal,
SFP, No optics
OPTI-6100 Mid Speed Modules
DS3SW DS3 Switch Module
Additional modules as per site requirements
Specifications subject to change without notice. ADTRAN and OPTI-6100 are registered
trademarks of ADTRAN, Inc. All registered trademarks and trademarks mentioned in this
publication are the property of their respective owners.
Equipment
Misc. Hardware
LFANM Assembly and Filter
Cables
CBL,ASY 8X11 2MM/CHAMP,
RX 6FT OPTI-6100 LMX
CBL,ASY 8X11 2MM/CHAMP,
TX 6FT OPTI-6100 LMX
CBL ASY 8X11 2MM/STUB,
RX 25FT OPTI-6100 LMX
CBL ASY 8X11 2MM/STUB,
TX 25FT OPTI-6100 LMX
CBL ASY 8X11 2MM/STUB,
RX 50FT OPTI-6100 LMX
CBL ASY 8X11 2MM/STUB,
TX 50FT OPTI-6100 LMX
CBL ASY 8X11 2MM/STUB,
RX 100FT OPTI-6100 LMX
Part #
CBL ASY 8X11 2MM/STUB,
TX 100FT OPTI-6100 LMX
1184555L1
CBL ASY 8X11 2MM/STUB,
RX 150FT OPTI-6100 LMX
1184500L2
CBL ASY 8X11 2MM/STUB,
TX 150FT OPTI-6100 LMX
SFPs
1184563L1
SFP-OC48 SR
SFP-OC48-IR
1184567L1
SFP-OC48-LR2 1550
SFP-OC48-LR
Part #
1184564G1
1196CP101L7
1196CP101L8
1196CP101G9
1196CP101G10
1196CP101G11
1196CP101G12
1196CP101G13
1196CP101G14
1196CP101G15
1196CP101G16
1184560P6
1184560P2
1184560P5
1184560P1
