Navistar IC Bus Electric CE Series Instruction Sheet page 5

High-Voltage Labels (cont.)

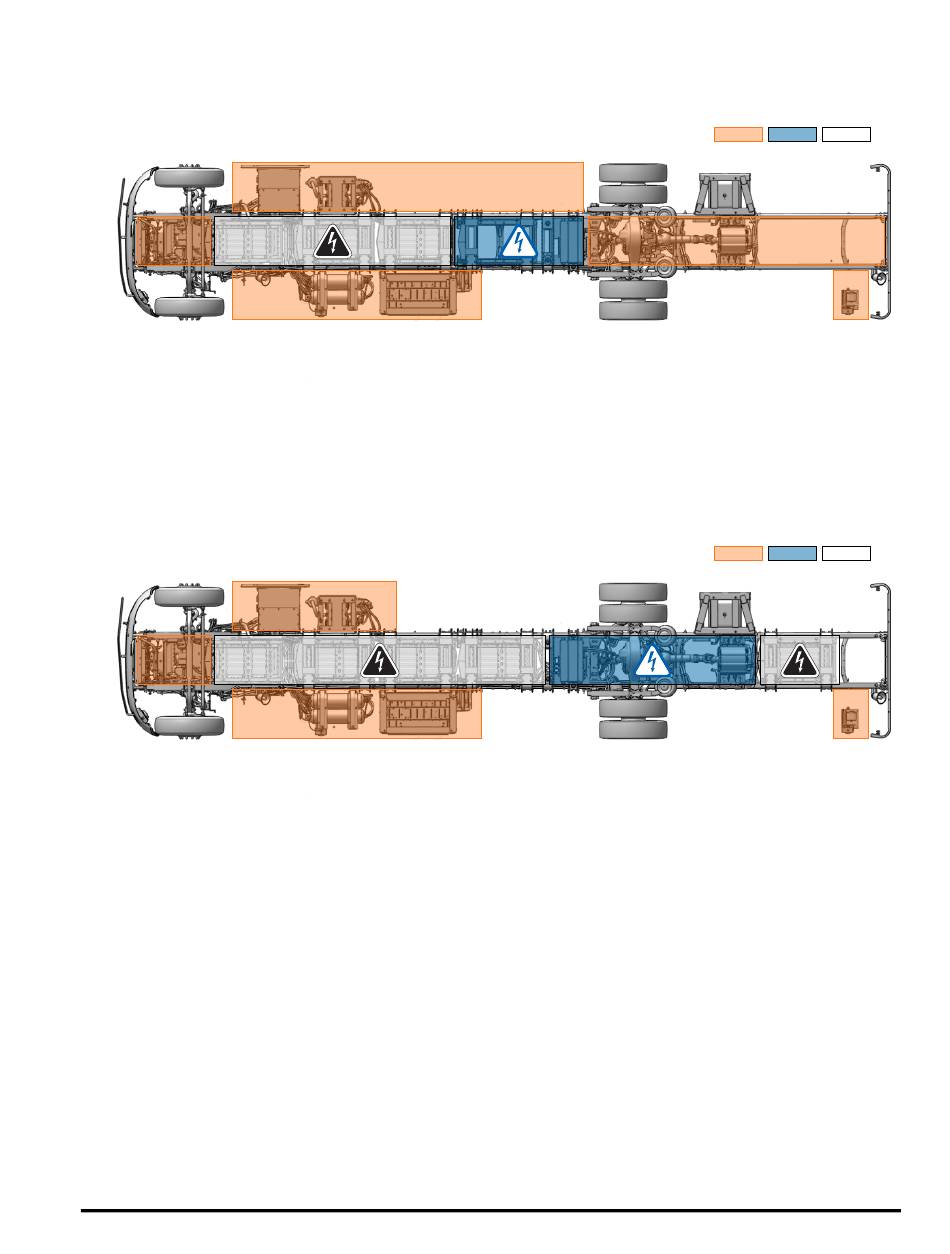

Figure 4. High-Voltage Isolation Levels / Zones for 2-String Vehicles (Viewed from Bottom)
If there are no high-voltage battery stacks between the rear wheels of the vehicle and the rear bumper, the level
2 and 3 zones are located as shown in Figure 4. This is called a "2-String" configuration.
Figure 5. High-Voltage Isolation Levels / Zones for 3-String Vehicles (Viewed from Bottom)
If there is a battery stack between the rear wheels of the vehicle and the rear bumper, the level 2 and 3 zones
are located as shown in Figure 5. This is called a "3-String" configuration.
© 2021 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
3
3
5
2
2
LEVEL 1 LEVEL 2 LEVEL 3
0000469815
LEVEL 1 LEVEL 2 LEVEL 3
3
0000469816
4328785R1
