Vehicle Systems and Components

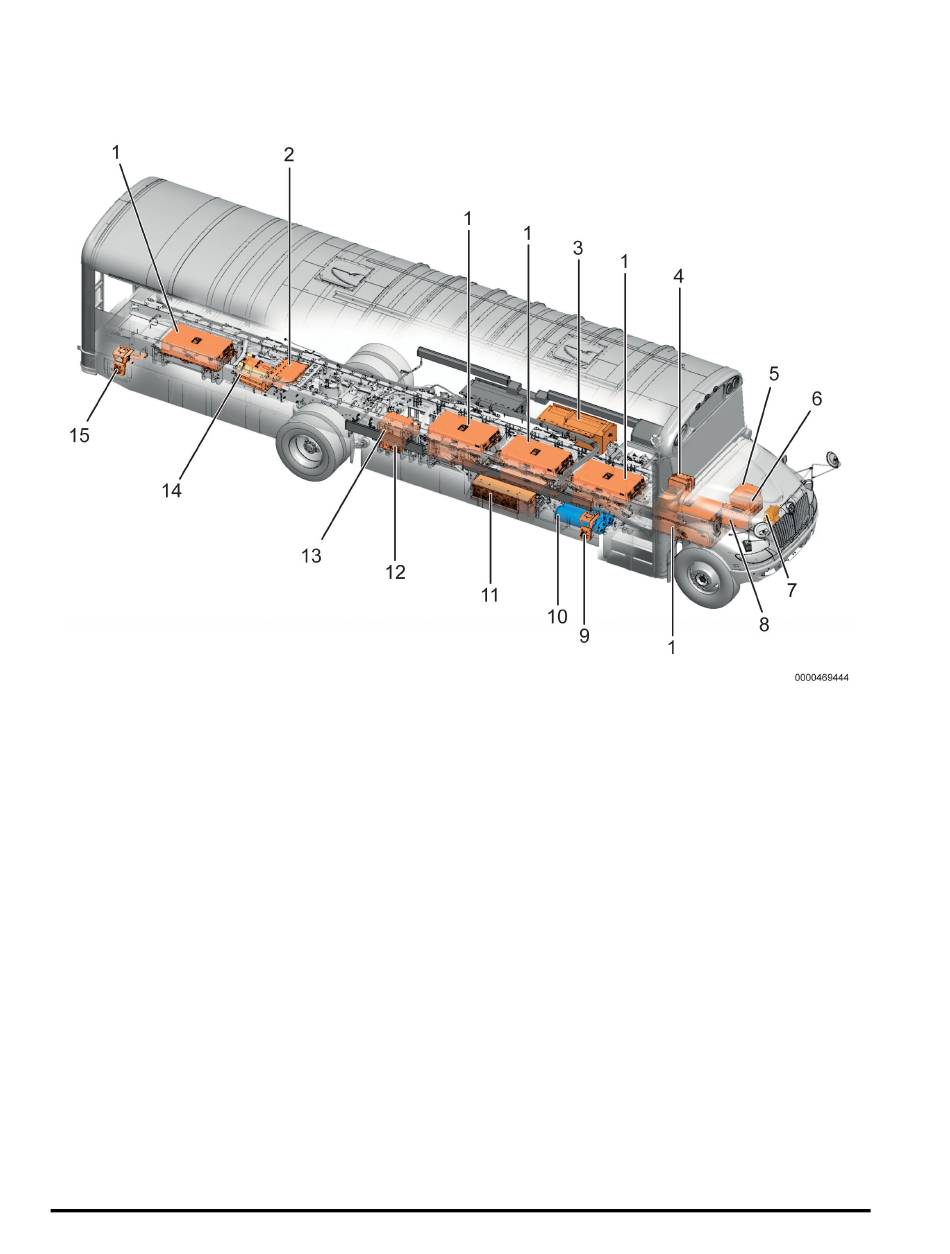

Figure 9. Vehicle Overview
1. High-voltage battery pack (up to five total, dependent on vehicle options)
2. Traction Power Inverter Module (TPIM)
3. Auxiliary Heater
4. DCDC converters and 12V batteries (DCDC)
5. 5kW 2-in-1 inverter
6. 11kW Onboard Charger (OBC) (2)
7. High-voltage power steering pump
8. High-Voltage Distribution Unit (HVDU)
9. Charge port front (AC & DC) and Onboard Charging Interface (OCI) module
10. Air brake pressure tanks
11. Battery Thermal Management System (BTMS)
12. High-Voltage Distribution Module (HVDM)
13. S-box
14. Drive motor
15. Charge port rear (AC & DC) and Onboard Charging Interface (OCI) Module
