Vehicle Systems and Components (cont.)

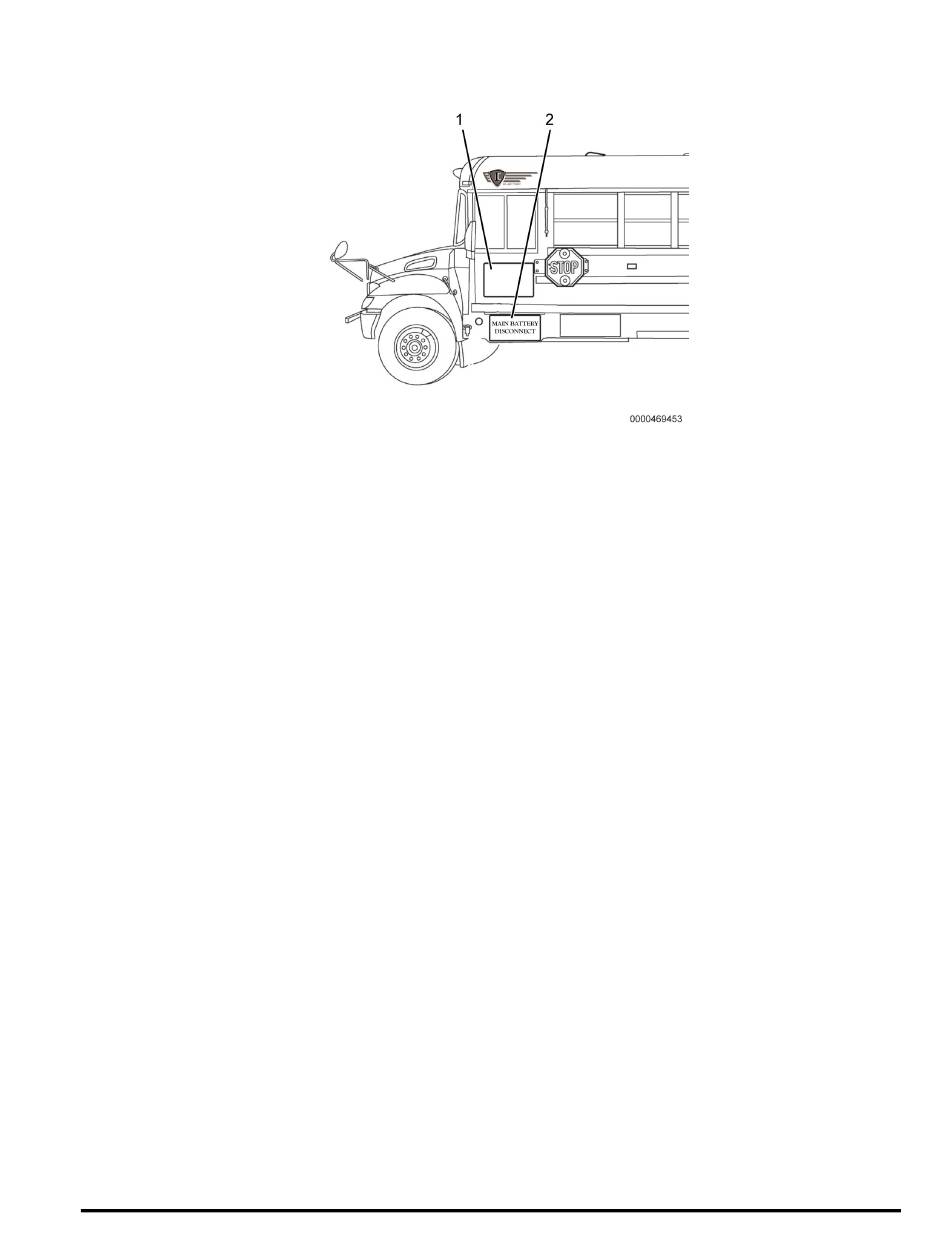

Figure 10. Service Access Covers
1.
High-voltage service disconnect cover
2.
12V battery disconnect cover
The High-Voltage and 12V Battery Service access covers (Figure 10, Items 1 & 2) are located on the driver side
of the vehicle. Each cover is equipped with a lock. In an emergency situation, if keys are not available, access
covers must be opened by force.
© 2021 Navistar, Inc. All rights reserved. All marks are trademarks of their respective owners.
11
4328785R1
