For Toughbook 55 Laptop Computers
Description
TrimLine Dock for Panasonic FZ55 Laptop, NPT
TrimLine Dock for Panasonic FZ55 Laptop, DPT
TrimLine Cradle for Panasonic FZ55 Laptop
call us at 1-888-869-7652 | info@precisionmounts.com

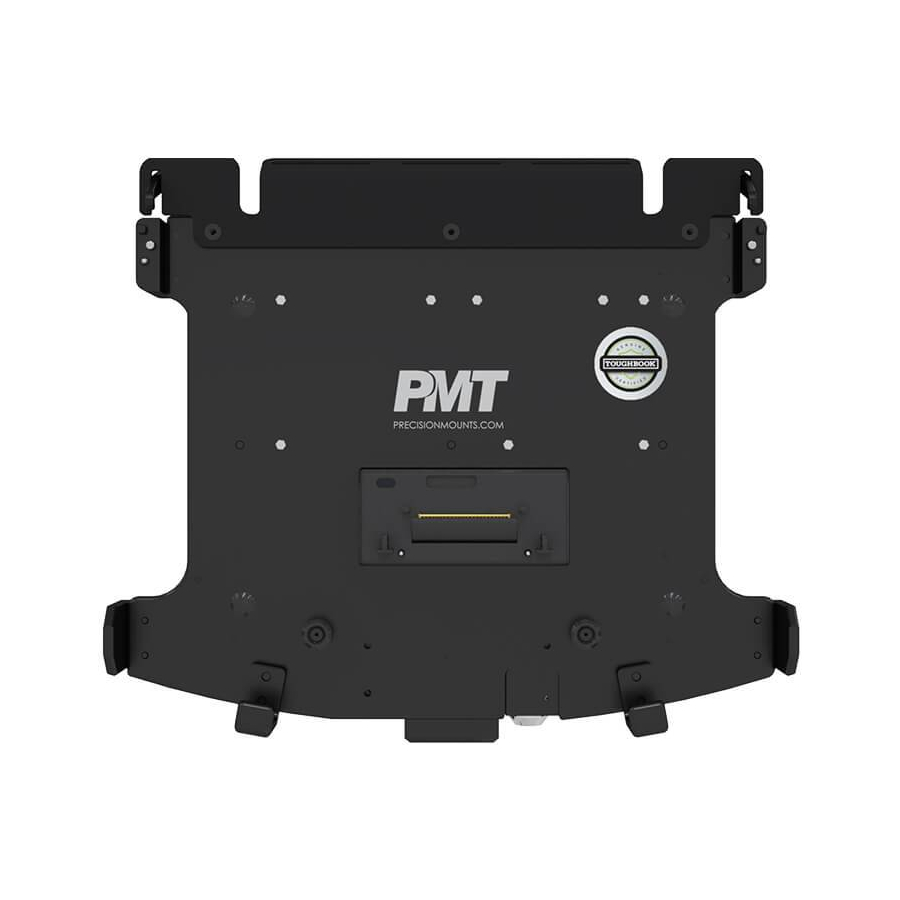

TrimLine Vehicle Dock
User Guide
www.precisionmounts.com
Part Number
AS7. P055.100
AS7. P055.102
AS7. P055.104
Advertisement
Table of Contents
Related Manuals for PMT TrimLine AS7. P055.100
Summary of Contents for PMT TrimLine AS7. P055.100
- Page 1 TrimLine Vehicle Dock For Toughbook 55 Laptop Computers User Guide Description Part Number TrimLine Dock for Panasonic FZ55 Laptop, NPT AS7. P055.100 TrimLine Dock for Panasonic FZ55 Laptop, DPT AS7. P055.102 TrimLine Cradle for Panasonic FZ55 Laptop AS7. P055.104 www.precisionmounts.com call us at 1-888-869-7652 | info@precisionmounts.com...
- Page 2 SERVICING [ENTRETIEN]: • If the dock does not work as intended, please contact PMT for troubleshooting or to schedule a service. [Si le dock ne fonctionne pas comme prévu, contactez PMT pour le dépannage ou pour planifier un service.] •...
- Page 3 Description of Parts and Layout Note: All pictures used in this guide are of Dual Pass Thru (DPT) (Part no: AS7.P055.102). However processes and information relate to other variants of the same dock mentioned in previous page. Front View Trigger Pins(X2) Rear Grounding Pins(X2) Back Hook (X2)
- Page 4 Description of Parts Continued Rear View (with mounting plate) Power External Antenna Ethernet HDMI 15.6V DC IN Switch EXT ANT 1 EXT ANT 2 Cable Management USB 3.0 (X2) Serial Port Plate...
- Page 5 Docking the Laptop Step 1: Ensure that the dock is unlocked and unlatched. If locked, insert key and rotate lock 90 degrees counter-clockwise. If latched, push the latch inside such that the back hooks move all the way out. Step 2: Lead the front of the handle into the front hooks on the dock such that the pockets on keyboard line up with the front hooks.
- Page 6 PMT. Use the supplied #¼-20 hardware the cables or connections. for attaching it to the mount. Use tie straps to secure opposite cable ends to another location in the vehicle.
- Page 7 Regulatory Certification Information AS7.P055.102 Regulatory Model #: PMT Model #'s & Description: AS7.P055.100 Dock-Toughbook 55 Laptop-No RF AS7.P055.102 Dock-Toughbook 55 Laptop-Dual RF AS7.P055.104 Cradle-Toughbook 55 Laptop Certifications: EN ISO / IEC 17050-1:2004 CSA C22.2 NO.60950-1 ICES-003 / CISPR 32 / EN 50498...
