Getting started with the X-NUCLEO-SNK1M1 USB Type-C™ Power Delivery Sink
Introduction
The
X-NUCLEO-SNK1M1
expansion board allows evaluating the features of
protection for V
and CC lines suitable for Sink applications.
BUS
The expansion board is designed to be stacked on top of any STM32 Nucleo-64 development board exploiting the
characteristics of the USB Type-C and Power Delivery (UCPD) peripheral embedded in their microcontrollers.
It can also be stacked on other STM32 Nucleo development boards not supporting the UCPD peripheral to demonstrate the
Type-C basic operations (attach, detach and power supply current capability recognition).
The
X-NUCLEO-SNK1M1
provides an effective demonstration of the dead battery operation, thanks to the integrated
ST715PU33R
LDO linear regulator that supplies the connected
via a USB Type-C connector.
The
X-NUCLEO-SNK1M1
is compliant with the latest USB Type-C and Power Delivery specifications and is also USB-IF
certified as a 100 W solution supporting Programmable Power Supply (PPS) function.
The companion software package (X-CUBE-TCPP) contains the application examples for development boards embedding
UCPD-based microcontrollers
Note:
Before running any demo, set CC1 J1, CC2 J2, JP3 and JP4 jumpers according to the configuration described in
Section 1.3 Demo application
UM2773 - Rev 1 - March 2021
For further information contact your local STMicroelectronics sales office.
expansion board based on TCPP01-M12 for STM32 Nucleo
(NUCLEO-G071RB
and NUCLEO-G474RE) and for non-UCPD ones (NUCLEO-L412RB-P).

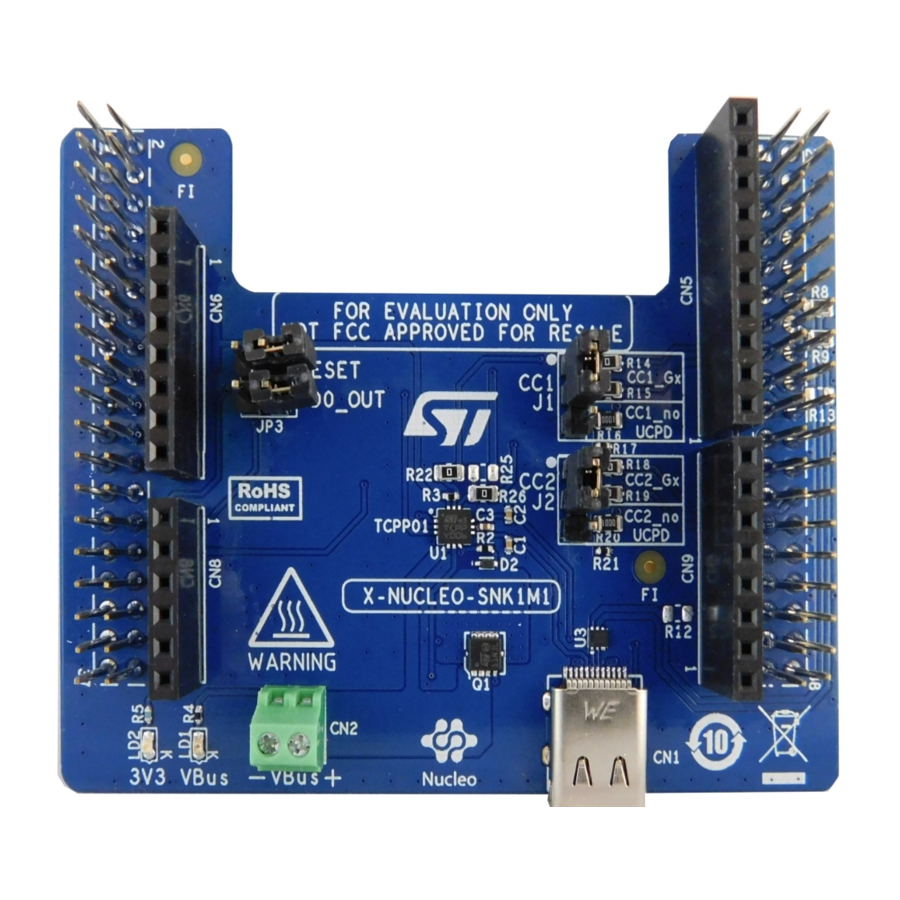

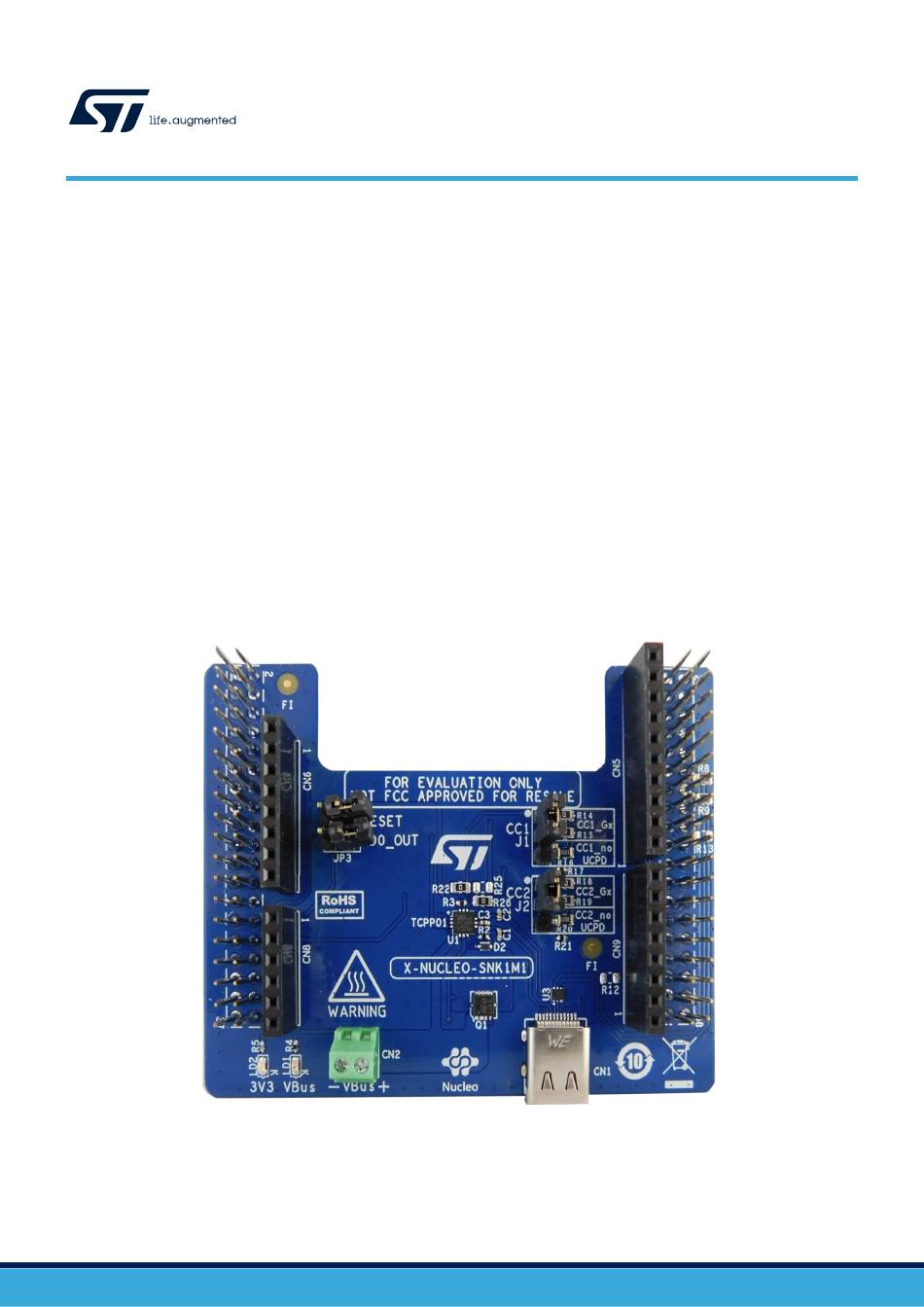

Figure 1.
X-NUCLEO-SNK1M1 expansion board
setup.
TCPP01-M12
and the USB Type-C overvoltage
STM32 Nucleo development board
UM2773
User manual
when a Source is attached
