How to use STM32 Nucleo expansion board based on the STSAFE-A110 secure
Introduction
The
X-NUCLEO-SAFEA1B
expansion board is based on the
Nucleo
development board.
The on-board STSAFE-A110 is customized with a standard profile for evaluation and is compatible with the Arduino UNO R3
connector.
The
X-NUCLEO-SAFEA1B
expansion board is used with free
containing sample code to demonstrate how to implement security applications.
UM3195 - Rev 1 - June 2023
For further information contact your local STMicroelectronics sales office.
STSAFE-A110
X-CUBE-SAFEA1

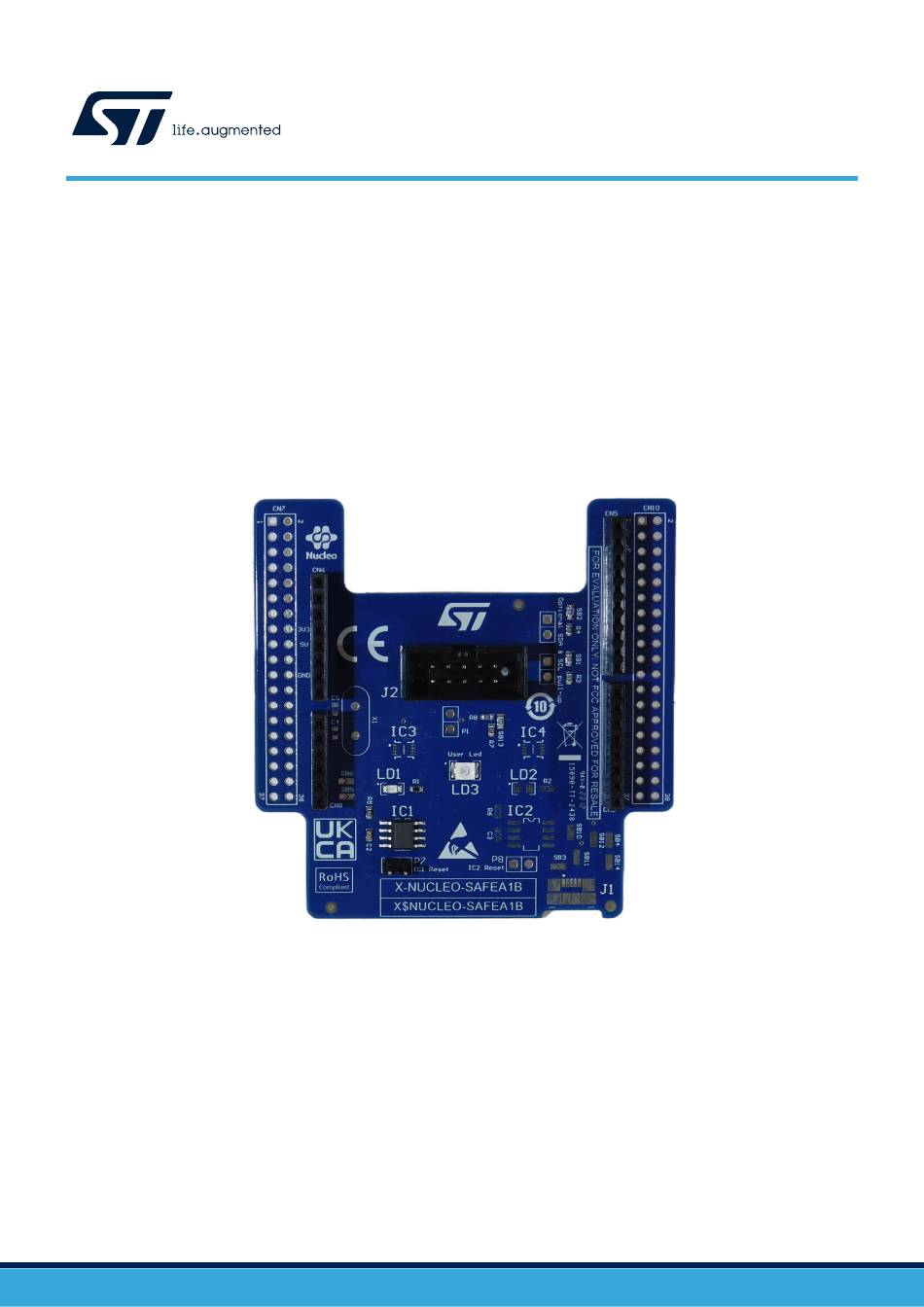

Figure 1.
X-NUCLEO-SAFEA1B
secure element. It can be used with any
or
X-CUBE-SBSFU
software packages
UM3195
User manual
element
STM32
www.st.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST X-NUCLEO-SAFEA1B
Summary of Contents for ST X-NUCLEO-SAFEA1B
- Page 1 UM3195 User manual How to use STM32 Nucleo expansion board based on the STSAFE-A110 secure element Introduction X-NUCLEO-SAFEA1B expansion board is based on the STSAFE-A110 secure element. It can be used with any STM32 Nucleo development board. The on-board STSAFE-A110 is customized with a standard profile for evaluation and is compatible with the Arduino UNO R3 connector.
-
Page 2: Getting Started
STM32 Nucleo development board through the matching Arduino UNO R3 connector pins. Note: Handle the X-NUCLEO-SAFEA1B with care and avoid bending or damaging the pins as the board has male/ female pass-through connectors and ESD sensitive components. System requirements To complete the system setup, you need: •... -
Page 3: Hardware Description
Can be used to put STSAFE-A110 secure element in reset mode Can be used to drive the STSAFE-A110 reset pin via the STM32 MCU PC0 GPIO Connector X-NUCLEO-SAFEA1B Nucleo expansion board has an HE10 extension connector (J2) to mount an additional STSAFE-A1xx secure element. Note: If you use the connector to accommodate new generation STSAFE-A devices, be sure that you insert jumper P7 to place the current STSAFE-A110 secure element soldered on the board in reset mode. -
Page 4: Stm32L4 Series Microcontroller Software
The update process is a secure operation using the STSAFE-A110 to prevent unauthorized updates and access to confidential on-device data. It is available for the STM32L4 Series microcontrollers with examples provided for the B-L475E-IOT01A discovery kit with the X-NUCLEO-SAFEA1B expansion. UM3195 - Rev 1 page 4/16... -
Page 5: Schematic Diagrams
Schematic diagrams Figure 2. X-NUCLEO-SAFEA1 circuit schematic - STSAFE-A chips RESET-C1 RESET-C1 100nF/25V STSAFE-A110 SO8N STSAFE-A110 UFDFPN8 3x2 RESET-C2 RESET-C2 100nF/25V STSAFE-A110 UFDFPN8 3x2 STSAFE-A110 SO8N... - Page 6 Figure 3. X-NUCLEO-SAFEA1 circuit schematic - Arduino and morpho connectors CN10 SPI_CLK CN5-6 PA12 PA11 SPI_NSS 21 22 23 24 21 22 23 24 SPI_MISO 29 30 SPI_MOSI PA10 35 36 35 36 Header 19x2 Header 19x2...
- Page 7 Figure 4. X-NUCLEO-SAFEA1 circuit schematic - LEDs and jumpers SPI_MISO SPI_CLK SPI_MOSI SPI_NSS Header 5X2 male SCL pull-up Sel SCL CN5-6 SDA pull-up Sel SDA pull-up pull-up (CN5-Pin 9) (CN5-Pin 10) SB13 61.9R User Led 820R Amber LED RESET-C1 Green LED (CN8-Pin 6) RST1 CMD RST1...
-
Page 8: Bill Of Materials
UM3195 Bill of materials Bill of materials Table 2. X-NUCLEO-SAFEA1B bill of materials Item Q.ty Reference Part/Value Description Manufacturer Order code 0.1 µF 0603 [1608 Multilayer ceramic Metric] 25 V ± 10 % Multicomp MC0603B104K250CT capacitor SMD X7R Multilayer ceramic 0.1 µF 0603 [1608... - Page 9 UM3195 Bill of materials Item Q.ty Reference Part/Value Description Manufacturer Order code 2.54 mm, 10 contacts, Wire-to-board header, 303 Series, 30310-6002HB connector through hole, 2 rows 473, 80 way, 2 row, P7, P8 Connector Stelvio Kontek 613080262822 straight pin header 61.9 ohm 0603 [1608 Thick film resistor MULTICOMP...
-
Page 10: Board Versions
Board versions Board versions Table 3. X-NUCLEO-SAFEA1 versions Finished good Schematic diagrams Bill of materials X$NUCLEO-SAFEA1B X$NUCLEO-SAFEA1B bill of X-NUCLEO-SAFEA1B X$NUCLEO-SAFEA1B schematic diagrams materials 1. This code identifies the X-NUCLEO-SAFEA1B evaluation board first version. UM3195 - Rev 1 page 10/16... -
Page 11: Regulatory Compliance Information
UM3195 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 12: Revision History
UM3195 Revision history Table 4. Document revision history Date Revision Changes 13-Jun-2023 Initial release. UM3195 - Rev 1 page 12/16... -
Page 13: Table Of Contents
UM3195 Contents Contents Getting started ..............2 Hardware requirements . - Page 14 X-NUCLEO-SAFEA1B.........
- Page 15 Table 1. X-NUCLEO-SAFEA1B expansion board jumper and solder bridge functions ......3 Table 2.
- Page 16 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
