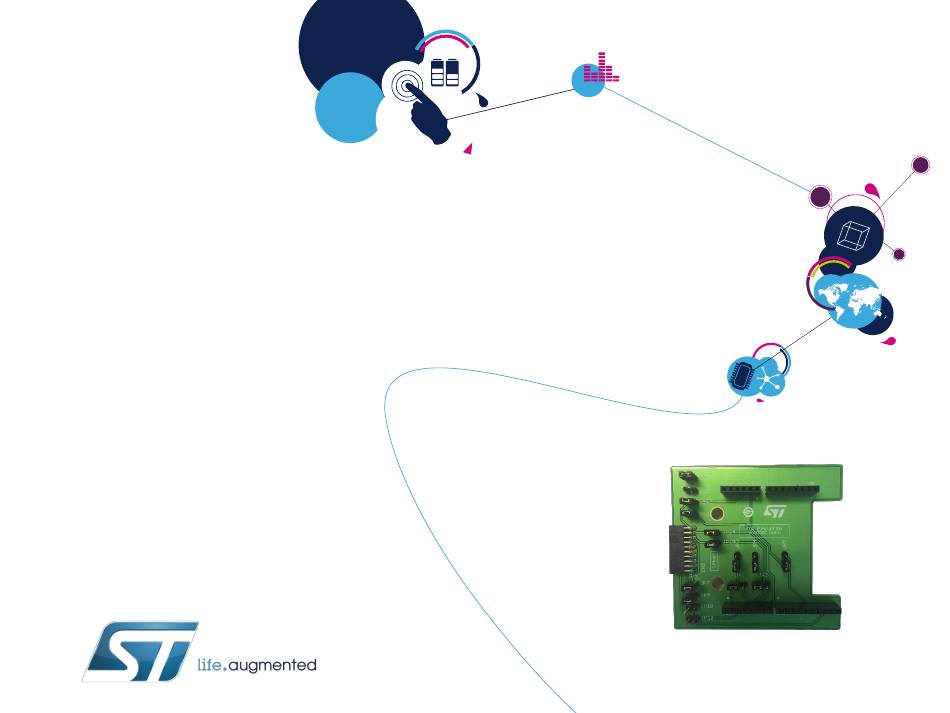

- Page 1 Quick Start Guide STMod+ connector expansion board for STM32 Nucleo (X-NUCLEO-STMODA1) Version 1.0 (Apr 20, 2018)
- Page 2 Quick Start Guide Contents X-NUCLEO-STMODA1: STMod+ connector expansion board for STM32 Nucleo Hardware overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
-
Page 3: Hardware Overview
X-NUCLEO-STMODA1 passive adaptation board between Arduino Uno and STMod+ connectors. • It provides an easy-to-use solution for expanding the Arduino UNO based ST ecosystem with devices using STMod+ connector. • X-NUCLEO-STMODA1 includes comprehensive set of jumpers that allows to modify the way the connector mapping is operated, allowing to be compatible with a wider range of STM32 Nucleo board. - Page 4 Quick Start Guide Contents X-NUCLEO-STMODA1: STMod+ connector expansion board for STM32 Nucleo Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
-
Page 5: Hardware Prerequisites
• 1x Discovery kit IoT node, low-power wireless, BLE, NFC, SubGHz, Wi-Fi (B-L475E-IOT01) • 1x STMod+ connector expansion board for STM32 Nucleo (X-NUCLEO-STMODA1) • 1x Cellular STMod+ modem with its antenna (modem used in P-L496G-CELL02) • 1x LTE Antenna (Taoglas TG.08.0113) B-L475E-IOT01 •... -
Page 6: Software Prerequisites
Setup & demo examples Software prerequisites • STSW-LINK009: ST-LINK/V2-1 USB driver • STSW-LINK007: ST-LINK/V2-1 firmware upgrade • A Windows PC with one of the supported development toolchains: - KEIL: MDK-ARM - IAR: EWARM - GCC-based IDE: System Workbench for STM32 •... - Page 7 Assembling the cellular dev-kit Example of use of the X-NUCLEO-STMODA1 adaptation shield Stack the X-NUCLEO-STMODA1 to the B-L475E-IOT01. Verify that jumper setting that match their default value (set for B-L475E-IOT01), looking at the X-NUCLEO-STMODA1 User manual or look at following slide Connect the modem using the STMod+ connector to the X-NUCLEO-STMODA1, and connect the LTE antenna using the SMA connector.
- Page 8 Jumper Default Setting JP13 JP3 JP4 JP5 JP11 JP14 JP1 JP2 JP15 JP10 JP12 1-2 LEFT 1-2 LEFT JP10 1-2 DOWN JP11 1-2 DOWN JP12 1-2 DOWN JP13 JP14 JP15...
- Page 9 X-NUCLEO-STMODA1 • Gerber files, BOM, and schematics • DB3589 :STMod+ connector expansion board for STM32 Nucleo - data brief • UM2400: Getting started with the X-NUCLEO-STMODA1 expansion board for STM32 Nucleo – User Manual Consult www.st.com for the complete list...
- Page 10 Quick Start Guide Contents X-NUCLEO-STMODA1: STMod+ connector expansion board for STM32 Nucleo Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
- Page 11 The STM32 Open Development Environment (ODE) consists of a set of stackable boards and a modular open SW environment designed around the STM32 microcontroller family. STM32 Nucleo STM32Cube expansion boards development software (X-NUCLEO) STM32Cube STM32 Nucleo expansion software development boards (X-CUBE) Function Packs (FP) www.st.com/stm32ode...
- Page 12 Power supply STM32 microcontroller through USB or external source Integrated debugging Complete product range and programming from ultra-low power to high-performance ST-LINK probe ST morpho extension header Arduino™ UNO R3 extension headers www.st.com/stm32nucleo...
- Page 13 Boards with additional functionality that can be plugged directly on top of the STM32 Nucleo development board directly or stacked on another expansion board. Connect Power Move/Actuate Interact Sense Motion MEMS sensors Environmental sensors DIL24 support for new devices Example of STM32 expansion board (X-NUCLEO-IKS01A1) www.st.com/x-nucleo...
-
Page 14: Software Components
Environment is compatible with a number of IDEs including IAR EWARM, Keil MDK, and GCC-based environments. Users can choose from three IDEs from leading vendors, which are free of charge and deployed in close cooperation with ST. These include Eclipse-based IDEs such as Ac6 System Workbench for STM32 and the MDK-ARM environment. - Page 15 NFC, Wi-Fi, GNSS Audio amplifier ACCESS Touch controller Translate Operation Amplifier CREATE Move / Stepper motor driver DC & BLDC motor driver Actuate Industrial input / output POWER Power Energy management & battery General-purpose microcontrollers PROCESS Process Secure microcontrollers www.st.com/stm32ode Software...
