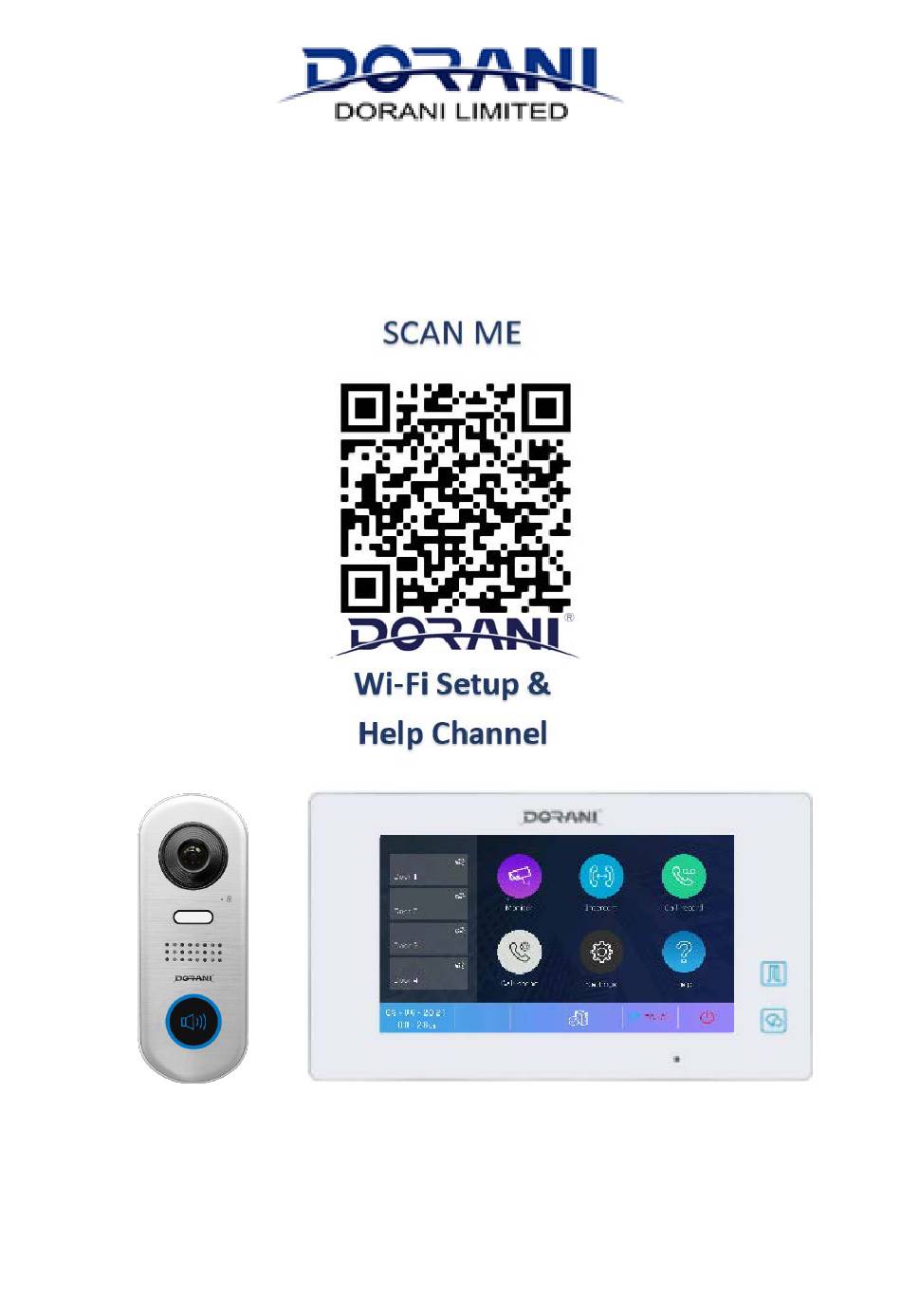

- Page 1 DORANI TOUCH VIDEO INTERCOM SYSTEM INSTALL/USER MANUAL WWW.DORANI.COM.AU Dorani (PJM Sales) – 03 9357 0942 4/1 Merri Concourse, Campbellfield, Victoria 3061 ALL INQUIRIES : support@dorani.com.au...
-
Page 2: Know Your Monitor
Memory Stations Monitors in System Help Button Wi-Fi instructions , manuals and troubleshooting Time and Date Shortcut SIP Menu Touch here to WiFi Menu Menu (Optional not (Optional available to ALL systems) available to systems) Call Scene Selects how the... - Page 3 • Warranty does not apply if the issues are 3 party related • Dorani advise that connection to mobile devices enables communication and unlocking of your intercom system from a remote location – please ensure your mobile device has a HIGH LEVEL of security activated.
- Page 4 Loop Wiring ALL LINES INDICATE 2 CONDUCTORS REFER LOCK RELEASE CONNECTIONS PAGE 9 Cable 2 Wires - Twisted No Polarity 1mm² to achieve max distance Dip Switches Dip Switch 6 ON = Last Monitor All Other DIP Switches NOT USED Accessory Connector SW+ = 12V Positive Pulsing on Ring SW- = 12V Negative on Ring...
- Page 5 Star Wiring ALL LINES INDICATE 2 CONDUCTORS REFER LOCK RELEASE CONNECTIONS PAGE 9 Cable 2 Wires - Twisted No Polarity 1mm² to achieve max distance Dip Switches Dip Switch 6 ON = ALL Monitors All Other DIP Switches NOT USED Accessory Connector SW+ = 12V Positive Pulsing on Ring SW- = 12V Negative on Ring...
- Page 6 Legacy Wiring ALL LINES INDICATE 2 CONDUCTORS REFER LOCK RELEASE Legacy Wiring Limitations CONNECTIONS PAGE 9 MAXIMUM of 1 x Door Station MAXIMUM of 1 x DORVT22 + 1 x DORVT03 Cable Distance max 40m Type of Cable will determine image Quality Cable 2 Wires - Twisted No Polarity...
- Page 7 LOCK CONNECTIONS Standard and Keypad Door Station – DORVT11,12,13,14 Preferred Method 12VDC Out Relay Out Slimline Door Station – DORVT25 12VDC Out Preferred Method Relay Out Lock Settings SLIMLINE – DORVT25 THIS DIP SETTING IS UNDER THE LABEL – REINSTALL STICKER AFTER CHANGING Time Dip 3 Dip 4...
- Page 8 LOCK RELEASE SETTINGS MASTER MONITOR DORVT22 Page ½ Button Enter Settings Menu Enter Installer Menu Press Page ½ Button Adjust Lock Time Adjust Normally Open / Closed SETTINGS – MASTER MONITOR DORVT22 Page ½ Button Call Tune Adjust Call Tune Settings of each door station individually, and intercom tones Adjust ringing time of door stations General...
- Page 9 The system is designed to have 2 monitors alight and display images on initial call, all monitors in the system will ring; pressing of non-imaged monitors will enable communication with the door station On smaller cable runs, additional monitors may be able to be programmed to alight on call - Dorani places no Guarantee on this feature...
- Page 10 ADDING ADDITIONAL DOOR STATIONS Keypad Doors (DORVT13,14) 1234 # 12 # Door Number # * Door 1 = 0 Door 2 = 1 Door 3 = 2 Door 4 = 3 Non - Keypad Doors (DOVT010,11) Remove front fascia cover Power up Door station –...
- Page 11 KEYPAD DOOR STATION PROGRAMMING Setting Notes: Substitute 1234 for Installer Code 3 Beeps = Incorrect setting, code or location Long Beep = Correct * = Exit Programming Default Installer Code= 1234 New Installer Code ___________ Program New Installer Code 1234 # 01 # New Master Code # * * Program New User Code Lock 1 (Locations 20-29) New Code 1234 # 20 # New User Code # *...
-
Page 12: Warranty
We value your feedback and provide you with our warranty details below. Warranty All Dorani Video Intercom products come with a limited 24 month warranty from time of initial purchase. This warranty is covered by Dorani Pty Ltd standard terms and conditions.
