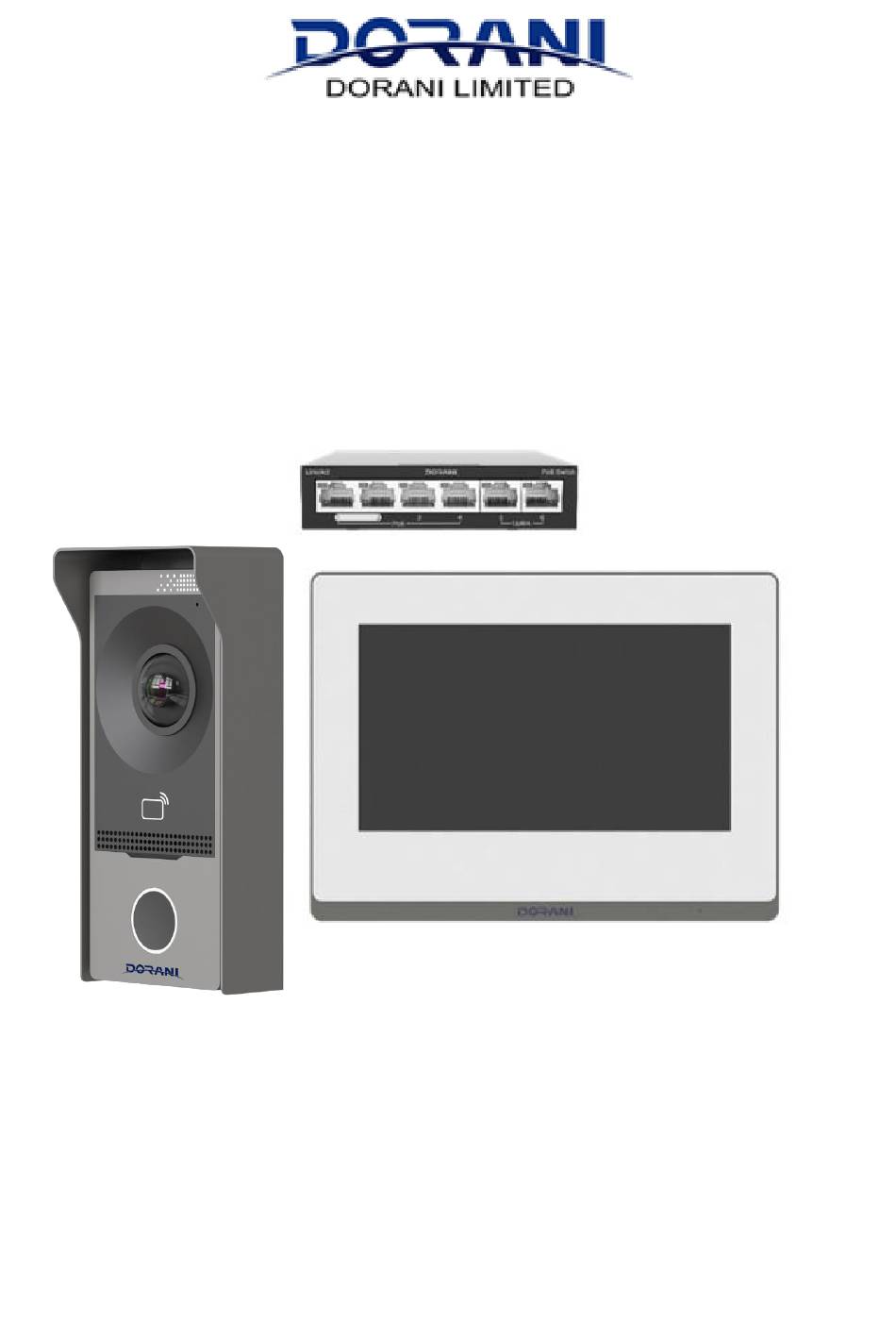

- Page 1 IPI – IP INTERCOM MANUAL MODEL: DORIP70 KIT WW.DORANI.COM.AU Dorani (PJM Sales) – 03 9357 0942 4/1 Merri Concourse, Campbellfield, Victoria 3061...
- Page 2 Do Not Distrurb = To stop the monitor calling Live View = Select this to bring the Live View Options Door Stations Connected to the Intercom Dorani CCTV Cameras on the Same Network Call This Enable intercom calling to different stations in the house...
-
Page 3: Basic Information
TYPICAL CABLE TOPOLOGY BASIC INFORMATION Monitors and Door Stations are set as DHCP for network connectivity MONITOR DEFAULT IP: 192.168.0.75 DOOR STATION DEFAULT IP: 192.168.0.71 DEFAULT PASSWORD: DORANI75!! -
Page 4: Door Station Connections
DOOR STATION CONNECTIONS Lock Output Harness Lock 1: Lock 2: NO: White/Green NO: White/Blue COM: White/Yellow COM: White/Orange NC: Pink NC: Grey Exit COM: Black Exit COM: Black Exit TRG: Purple Exit TRG: White/Purple NO POWER OUT ADDITIONAL POWER SUPPLY REQUIRED FOR LOCKS RJ45 Network Lock... -
Page 5: Monitor Connections
Add Sealant to top rear of Weather Hood weather hood before mounting to prevent water ingress Cable Access Ensure Cover Bracket is Installed at Install Mounting Screw Recommended Mounting Height = 1400mm - 1500mm Above Floor Level MONITOR CONNECTIONS Speaker SD Memory Expansion RJ45 Network... - Page 6 THE STARTUP WIZARD WILL STEP YOU THROUGH TO GET THE SYSTEM OPERATIONAL. ONCE CONNECTED AND WORKING, ADD THE DEVICE USING THE DORANI IP SECURE ACCOUNT & ADD DEVICE GUIDE Step 1: Network Settings This is preset for DHCP, this should not need to be changed, ONLY change if a dedicated fixed IP address is required.
- Page 7 Step 4: Loctaion Set Main or Extension Monitor If more than 1 extension, allocate extension number Ignore password Press “Next” Step 5: Devices Door Stations & NVR’s can be added at this location Select the Device Press + Button Put in the device Password Doors = DORIP75!! NVR = Use NVR Password Press “Confirm”...
- Page 8 Ensure that your network switch is connected to the Internet. Once a connection is completed – then the following process can be followed Download App Dorani Press Login/Sign Up Press Sign Up Select Your Region IP Secure Fill In your Email Read and Agree to T&C’s...
- Page 9 The QR Code is located in the Settings Menu > P2P Once the Code is Filled Press Scan the QR Code on your Device “Add Device” Name your Device Select the connection method Your Device should now be of the recorder visible DO NOT NAME IT “Cable”...
- Page 10 We value your feedback and provide you with our warranty details below. Warranty All Dorani Video Intercom products come with a limited 24 month warranty from time of initial purchase. This warranty is covered by Dorani Pty Ltd standard terms and conditions.
