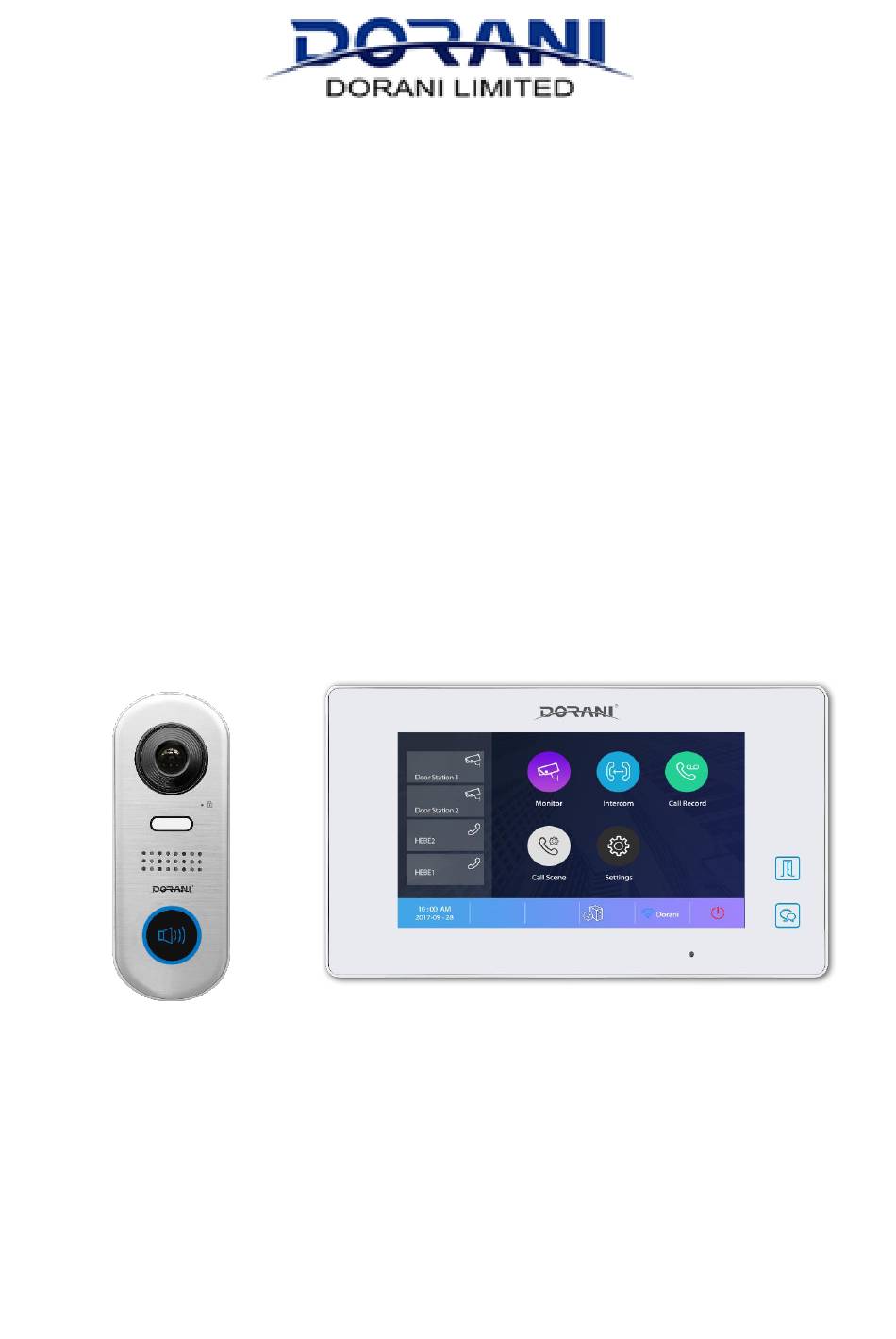

- Page 1 DORANI TOUCH VIDEO INTERCOM SYSTEM INSTALL MANUAL MODEL: DORVT 2 WIRE SYSTEM WW.DORANI.COM.AU Dorani (PJM Sales) – 03 9357 0942 4/1 Merri Concourse, Campbellfield, Victoria 3061...
-
Page 2: Know Your Monitor

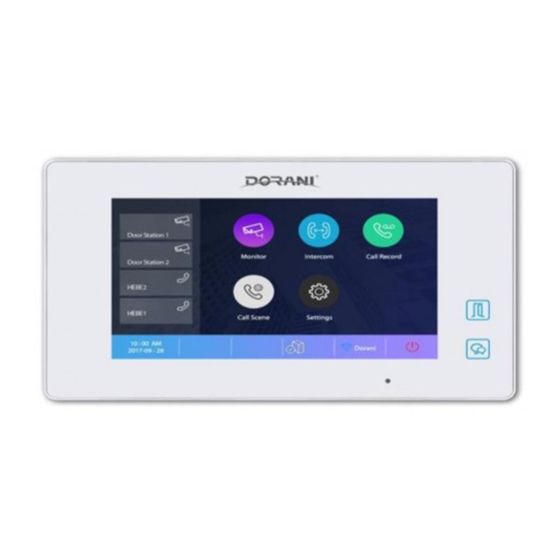

KNOW YOUR MONITOR DORVT22 Master ONLY Monitor Intercom Menu Call Record Menu Monitor Menu Monitoring of Door Calling Other Reviewing of picture Stations Monitors in System Memory SIP Menu Shortcut (Optional not WiFi Menu Menu available to ALL (Optional systems) available to systems) Settings Menu... - Page 3 • Warranty does not apply if the issues are 3 party related • Dorani advise that connection to mobile devices enables communication and unlocking of your intercom system from a remote location – please ensure your mobile device has a HIGH LEVEL of security activated.
- Page 4 Loop Wiring REFER LOCK RELEASE CONNECTIONS PAGE 9 Cable 2 Wires - Twisted No Polarity 1mm² to achieve max distance Dip Switches Dip Switch 6 ON = Last Monitor All Other DIP Switches NOT USED Accessory Connector SW+ = 12V Positive Pulsing on Ring SW- = 12V Negative on Ring RING = Door Bell Normally Open Input...
- Page 5 Star Wiring REFER LOCK RELEASE CONNECTIONS PAGE 9 Cable 2 Wires - Twisted No Polarity 1mm² to achieve max distance Dip Switches Dip Switch 6 ON = ALL Monitors All Other DIP Switches NOT USED Accessory Connector SW+ = 12V Positive Pulsing on Ring SW- = 12V Negative on Ring RING = Door Bell Normally Open Input...
- Page 6 Legacy Wiring REFER LOCK RELEASE Legacy Wiring Limitations CONNECTIONS PAGE 9 MAXIMUM of 1 x Door Station MAXIMUM of 1 x DORVT22 + 1 x DORVT03 Cable Distance max 40m Type of Cable will determine image Quality Cable 2 Wires - Twisted No Polarity 1mm²...
- Page 7 LOCK CONNECTIONS Standard and Keypad Door Station – DORVT11,12,13,14 Preferred Method 12VDC Out Relay Out Slimline Door Station – DORVT25 Preferred Method Relay Out 12VDC Out Lock Settings SLIMLINE – DORVT25 THIS DIP SETTING IS UNDER THE LABEL – REINSTALL STICKER AFTER CHANGING Time Dip 3 Dip 4...
- Page 8 LOCK RELEASE SETTINGS MASTER MONITOR DORVT22 Page ½ Button Enter Settings Menu Enter Installer Menu Press Page ½ Button Adjust Lock Time Adjust Normally Open / Closed SETTINGS – MASTER MONITOR DORVT22 Page ½ Button Call Tune Adjust Call Tune Settings of each door station individually, and intercom tones Adjust ringing time of door stations General...
- Page 9 The system is designed to have 2 monitors alight and display images on initial call, all monitors in the system will ring; pressing of non-imaged monitors will enable communication with the door station On smaller cable runs, additional monitors may be able to be programmed to alight on call - Dorani places no Guarantee on this feature...
- Page 10 ADDING ADDITIONAL DOOR STATIONS Keypad Doors (DORVT13,14) 1234 # 12 # Door Number # * Door 1 = 0 Door 2 = 1 Door 3 = 2 Door 4 = 3 Non - Keypad Doors (DOVT010,11) Remove front fascia cover The next steps need to be done QUICKLY Power up Door station –...
- Page 11 KEYPAD DOOR STATION PROGRAMMING Setting Notes: Substitute 1234 for Installer Code 3 Beeps = Incorrect setting, code or location Long Beep = Correct * = Exit Programming Default Installer Code= 1234 New Installer Code ___________ Program New Installer Code 1234 # 01 # New Master Code # * * Program New User Code Lock 1 (Locations 20-29) New Code 1234 # 20 # New User Code # *...
-
Page 12: Warranty
We value your feedback and provide you with our warranty details below. Warranty All Dorani Video Intercom products come with a limited 24 month warranty from time of initial purchase. This warranty is covered by Dorani Pty Ltd standard terms and conditions.
