SERVICE INFORMATION
MODELS AFFECTED: All BevMax 4 Models
MODEL NUMBERS: DN5800-4, DN3800-4
RE: BevMax 4 Excessive Condensation Troubleshooting Tips
Reason: To provide troubleshooting tips for venders that exhibit symptoms of excessive condensation.
Things to do:
1. Is vender placed in a recommended environment for its use?
a. Indoor location, climate controlled?
b. Confirm vender is not placed in direct sunlight or near a heat source.
c. Confirm vender is level.
d. Vender is manufactured to function at 90° F, 65% RH. Conditions outside these parameters will produce
condensation that the vender may not be able to evaporate at a rate faster than it is produced.
2. Was the vender handled as recommended?
a. Moving the DN5800/DN3800 – due to the large size and weight of the Vender, never attempt to move the
Vender with a Hand Truck or Stair Climber. Use a pallet jack or Vender/Cooler Dollies at all times when
moving the Vender.
b. Casters on DN58/DN3800 - due to the large size and weight of the Vender, DO NOT USE casters.
c.
Stacking the DN5800/DN3800 - due to the large size and weight of the Vender, DO NOT stack.
d. Due to weight, DN5800/DN3800 machine should never be moved loaded with product.
M123.x
M123.0
Date: 11/7/11
1
7
Page
of
November 7, 2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crane Merchandising Systems BevMax 4
Summary of Contents for Crane Merchandising Systems BevMax 4

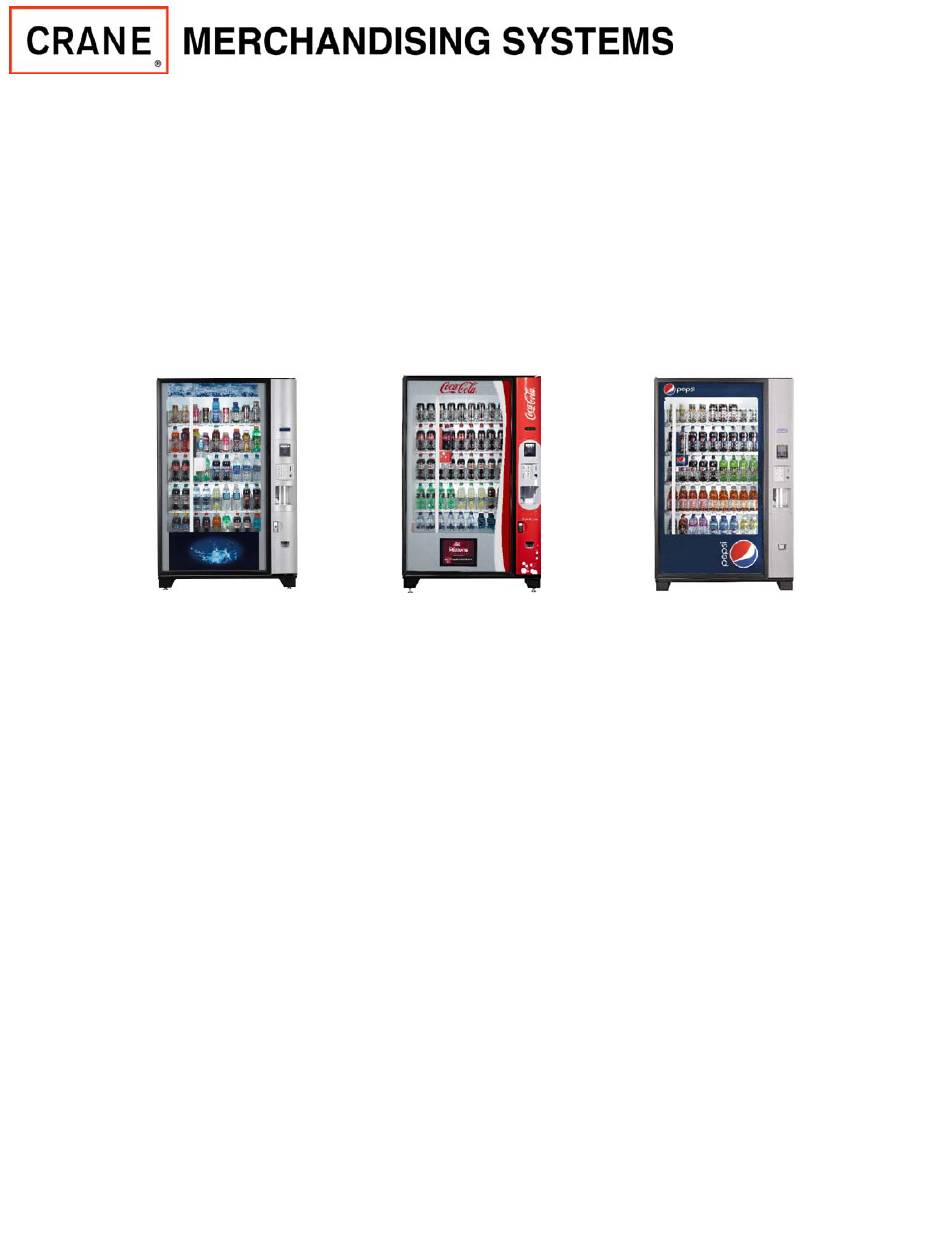

- Page 1 MODELS AFFECTED: All BevMax 4 Models Date: 11/7/11 MODEL NUMBERS: DN5800-4, DN3800-4 RE: BevMax 4 Excessive Condensation Troubleshooting Tips Reason: To provide troubleshooting tips for venders that exhibit symptoms of excessive condensation. Things to do: 1. Is vender placed in a recommended environment for its use? a.
- Page 2 SERVICE INFORMATION 3. Identify where the vender is leaking and/or where condensation build up is accumulating if possible. a. Is the condensation pan overflowing? b. Is the evaporator drain pan over flowing? i. Check drain trap from evaporator drain pan to condensation pan is not clogged. c.
- Page 3 SERVICE INFORMATION 5. Condensation on glass door. IMPORTANT – Glass Door weighs approximately 57 lbs. a. Check glass door gasket is sealing to cabinet using paper drag test. b. Check glass door gasket is not damaged (cut, torn, rolled, etc). c.
- Page 4 SERVICE INFORMATION 7. Seal all four sides of both the Refrigerated & Service sides of the Discharge Frame with white sealant to prevent air infiltration around the Discharge Frame Assembly. Sealant from CMS is sold by the tube. Clear 90360049 or white 90360019.
- Page 5 SERVICE INFORMATION 9. Remove the Bottom Ramp Assembly. On the Bottom Panel Assembly run a bead of sealant to fill the gap between the Base Panel Foam Assembly and the Base Panel Front Mounting Bracket from the left side all the way to the right side.
- Page 6 SERVICE INFORMATION 11. Check gasket seal is on the side of the Condenser cover Assembly Slanted Panel. 12. Check gasket seal on left, right, and back sides of the Bottom Panel Assembly, on top of Refrigeration Assembly, and on support bracket mounted on the left Cabinet wall. 13.
- Page 7 SERVICE INFORMATION 14. Check Permagum has been installed in the corners of the Bottom Panel Assembly. Bottom Panel Assy. 15. Check the Refrigeration Unit gasketing on the right side of the Refrigeration Unit. Then confirm it is sealed tight to Cabinet wall and the Refrigeration Bracket is tightened to secure.
