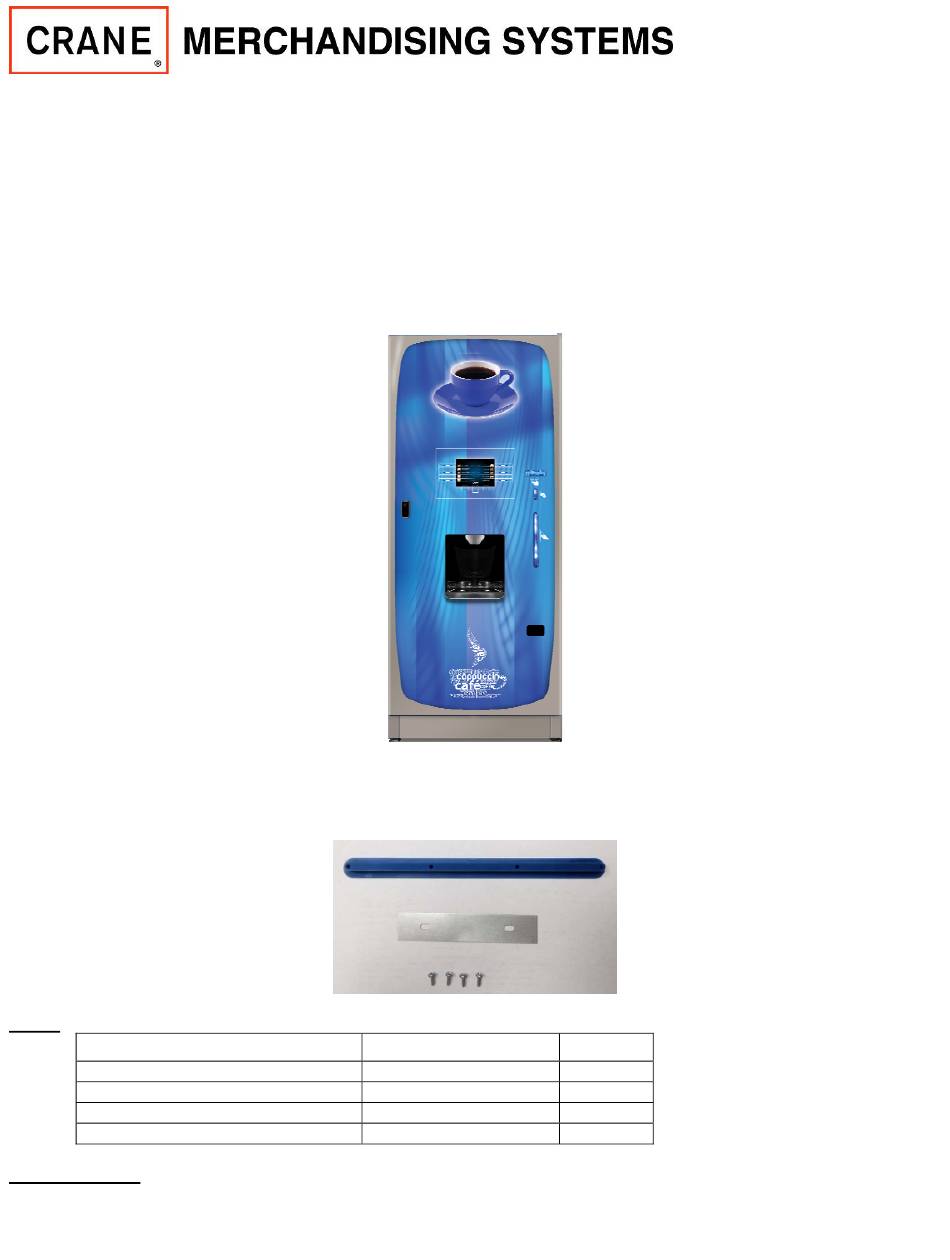

SERVICE INFORMATION

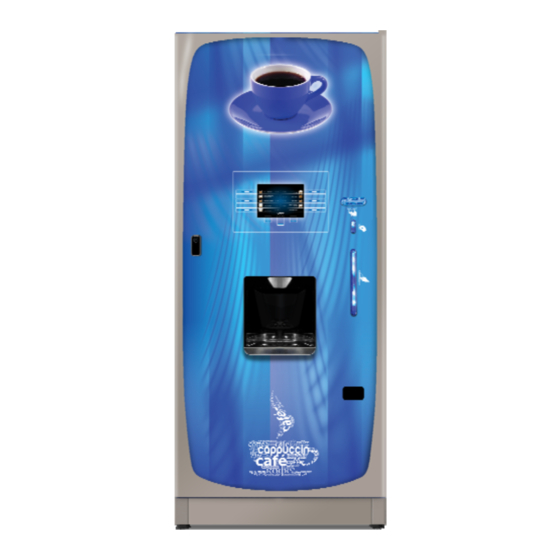

MODELS AFFECTED: All Voce Media
MODEL NUMBERS: 605 & 607
RE: Voce
Media Card Reader Blank Bezel Installation
Reason: To provide instructions on removal of Voce Media Card Reader & Mag Head Assembly and installation of blue Card
Reader Blank Bezel in the field.
What's needed: See list of parts required:
Order:
Description
Card Reader Blank Bezel (blue)
Blank Swipe Bracket
Screw, Phil Pan #6 – 19 X .38
Installation Instructions
Tools Required:
Phillips screw driver
M138.x
T20 Torx Driver
Painters Tape or an Assistant
M 138.0
Date: 04/17/15
Part Number
CR0023374
CR0023375
4747171
M138.x
1
6
Page
of
QTY
1
1
4
1
April 17, 2015
Advertisement
Table of Contents
Related Manuals for Crane Merchandising Systems Voce Media Series
Summary of Contents for Crane Merchandising Systems Voce Media Series
- Page 1 SERVICE INFORMATION M 138.0 MODELS AFFECTED: All Voce Media Date: 04/17/15 MODEL NUMBERS: 605 & 607 RE: Voce Media Card Reader Blank Bezel Installation Reason: To provide instructions on removal of Voce Media Card Reader & Mag Head Assembly and installation of blue Card Reader Blank Bezel in the field.
- Page 2 SERVICE INFORMATION Voce Kit Installation Instructions: 1. Remove power to the vender. 2. Unplug the Coin Mechanism. 3. Loosen the 2 Phillips screws securing the LED Driver Board Cover. 4. Remove the LED Driver Board Cover. 5. Unplug all harnesses from the LED Driver Board. 6.
- Page 3 SERVICE INFORMATION 7. Remove the Coin Reject Motor Assembly from the Monetary Door Assembly and let hang. Be careful not to damage harnessing or connectors. See picture 6.a. 8. Loosen the 3 Phillips screws securing the Monetary Door Assembly to the Main Door. 9.
- Page 4 SERVICE INFORMATION 10. Unplug the Card Reader & Mag Head Assembly. 11. Remove the 2 T20 Torx Screws securing the Card Reader & Mag Head Assembly to the Main Door. One at the top of the Assembly and one at the bottom of the assembly. 12.
- Page 5 SERVICE INFORMATION 13. Position the Blue Card Reader Blank Bezel in place from the front of the door. 1. Note: you will need someone to hold it in place while you secure it or you will need to tape it in place while you secure it. 14.
- Page 6 SERVICE INFORMATION 15. Close main Door and inspect part. If Card Reader Blank Bezel is overtightened it will appear warped. Loosen screws as needed to allow part to flatten out. 16. Install the Monetary Door Assembly on the Main Door and secure by tightening the 3 screws loosened in step 8.
