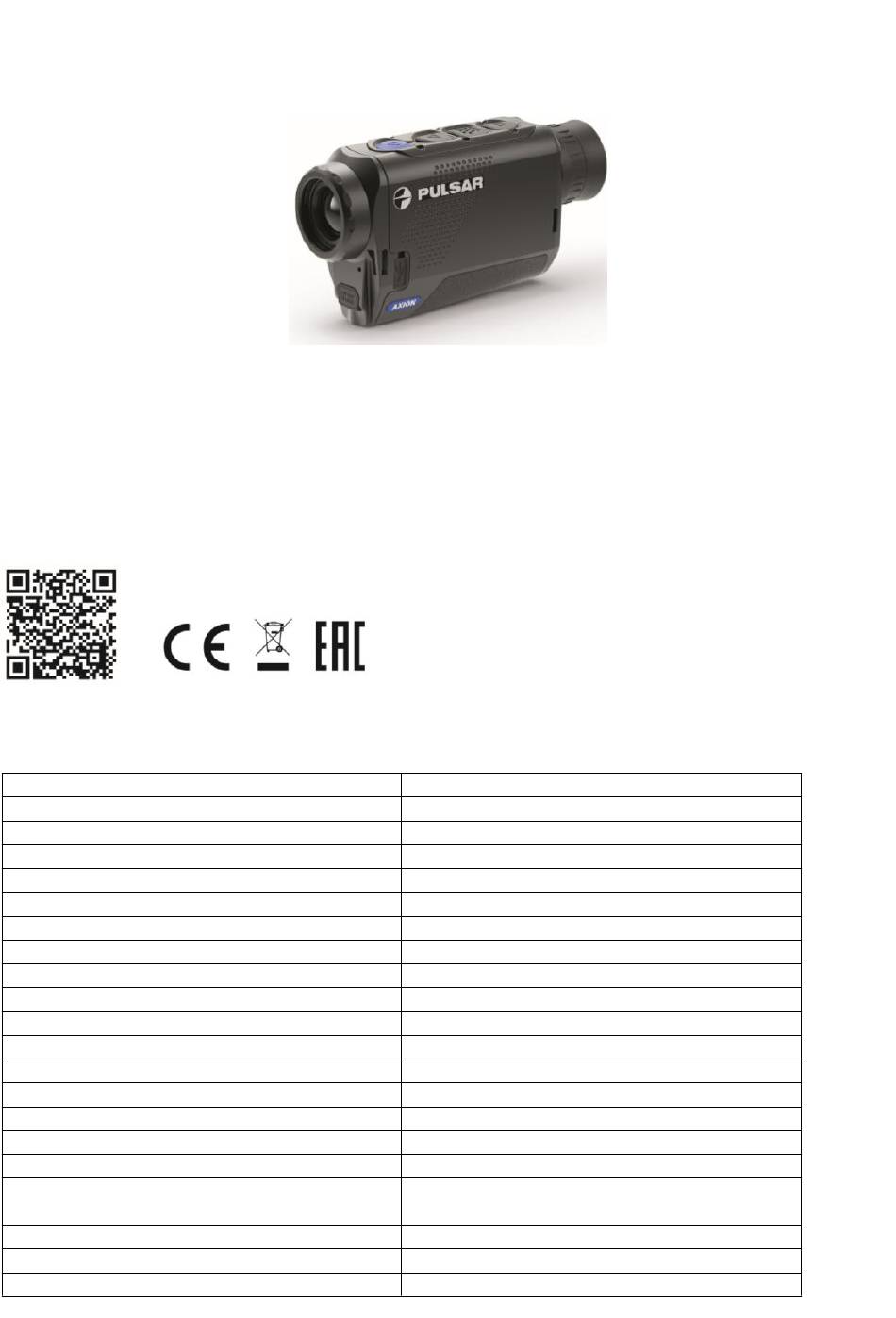

Attention! AXION thermal imagers require a licence when exported outside your country.
Electromagnetic compatibility.
This product complies with the requirements of European standard EN 55032: 2015, Class A.
Warning: Operating this product in a residential area may cause radio interference.
SPECIFICATIONS
SKU
AXION Model
Microbolometer
Type
Resolution, pixels
Frame refresh rate, Hz
Pixel size, microns
Optical specifications
Optical magnification, x
Smooth digital zoom, x
Digital zoom, x
Relative aperture, D/f
Minimum observation distance, m
Exit pupil diameter, mm
Angle of field of view (HxV), degrees
Angle of field of view, meters at 100m
Focusing range of eyepiece, diopters
Detection distance for an animal object, such as a
deer, m
Display
Type
Resolution (pixels)
Operating instructions
Axion XM22S
77429
XМ22S
uncooled
320x240
50
12
3.5
3.5-14
2/4
1.2
3
3.5
10x7.5
17.5
±5
950
AMOLED
1024x768

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Axion XM22S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar Axion XM22S

Summary of Contents for Pulsar Axion XM22S

  • Page 1 Operating instructions Axion XM22S Attention! AXION thermal imagers require a licence when exported outside your country. Electromagnetic compatibility. This product complies with the requirements of European standard EN 55032: 2015, Class A. Warning: Operating this product in a residential area may cause radio interference.

  • Page 2: Delivery Package

    Operational specifications External power voltage 3 – 4.2 V Battery type Li-Ion Battery Pack АPS3 Capacity 3200 mAh Rated Output Voltage DC 3.7 V External power supply 5 V (USB) Battery charge life in hours (at 22°C)* IP code (IEC60529) degree of protection IPХ7 Stream Vision compatibility Operating temperature range...

  • Page 3: Components And Controls

    2. High-resolution AMOLED display 3. Lightweight and compact 4. Functional and ergonomic design 5. Convenient user interface 6. Observation in eight color modes 7. Three calibration modes (manual, semi-automatic and automatic) 8. Long detection distance 9. High magnification 10. Four observation modes: Forest, Rocks, Identification and User 11.

  • Page 4: Button Operation

    6. Lens 7. Lens cap 8. MicroUSB connector 9. Battery release button LED indicator displaying current status of the device LED Indicator Operating Mode Device is powered on Device on / video recording Device on / battery charge <10% Device on / video recording / battery charge <10% For a better viewing experience, we recommend that glass wearers fold back the edge of the elastic eyeshade.

  • Page 5: Using The Rechargeable Battery

    Device on / photo Photographing Toggle video / mode photo mode Quick menu Reduce parameter Reduce parameter Main menu Navigation down, left Navigation down, left USING THE RECHARGEABLE BATTERY AXION thermal imagers are supplied with a rechargeable APS3 Lithium-ion Battery Pack. The battery should be charged before first use.

  • Page 6: External Power Supply

    * The LED indicator displays the current level of charge of the battery for 30 seconds when the APS charger is not plugged in. When the power is connected, the display shows the status of the battery constantly, the LEDs additionally flickering to indicate the battery charging process.

  • Page 7: Operation

     If the device is operated from an external power source and the APS3 battery is not connected, an icon is displayed  When the external power supply is disconnected, the device switches to the internal power supply without the device powering off. Attention! Charging Power Bank APS3 batteries at air temperatures below 0 °C can result in reduced battery life.

  • Page 8: Main Menu Functions

    The device's functionality offers the possibility of quickly increasing its base multiplicity (see the table of technical properties in the Digital Zoom line) by a factor of 2 or 4. Adjust the digital zoom accordingly by pressing the DOWN button (2). QUICK MENU FUNCTIONS The basic settings (brightness and contrast adjustment, use of the smooth digital zoom function and the stadiametric rangefinder) are changed via the Quick Menu.
  • Page 9 Composition and description of the menu Mode Selection of observation mode. The thermal imager has four automatic observation modes. Each of these modes includes an optimum combination of parameters (brightness, contrast, intensity etc.) for ensuring the best image quality under any given observation conditions. Option 1: Briefly press the UP button (4) to switch observation modes.
  • Page 10 Calibration requirements in the automatic mode are determined programmatically, with the calibration process being started automatically. Semi-automatic The user independently sets the calibration requirements (according to the image being observed). Manual Manual calibration. Close the lens cap before beginning calibration. Microphone Turning on/off the microphone This item allows you to enable (or disable) the microphone for recording sound during...
  • Page 11 button (3). Set the unit of measurement (meters or yards) by pressing the UP (4) / DOWN  (2) buttons; then press the Мenu button (3).  Return to the submenu occurs automatically. Default Settings Restore Factory Settings  Enter the "Default Settings" submenu with a short press of the Menu button (3).
  • Page 12  To save the password and exit the submenu, press and hold down the Menu button (3). Setting Access This sub-function enables you to configure the appropriate level of access to your Levels device made available to the Stream Vision app. Owner level.

  • Page 13: Status Bar

    STATUS BAR The status bar is located at the bottom of the display and displays information relating to the operational status of the device, including: 1. Color mode (it is displayed only when the Black Hot color mode is set). 2.
  • Page 14 Attention: The maximum duration of a video recording file is 5 minutes. After this time, the video will be recorded onto a new file. The number of files is limited by the capacity of the device's built-in memory. Regularly monitor the amount of free memory in the built-in memory card, transferring footage and photographs to other media to free up space on the memory card.

  • Page 15: Pip Function

    Detailed instructions on the operation of Stream Vision technology can be found in a separate booklet or on the www.pulsar-vision.com website. Note: the Stream Vision application allows you to update the firmware features of your Pulsar Device. How to update instructions are as below: 1.

  • Page 16: Usb Connection

    - if your Pulsar device is connected to phone, please turn on “Mobile data transfer” (GPRS/3G/4G) to download update; - if your Pulsar device is not connected to your phone but it's already in the “My Devices” section, you may use Wi-Fi to download update.

  • Page 17: Maintenance

    A technical inspection of the device is recommended before each use. Check:  The external appearance of the device (there should be no cracks in the casing).  The condition of the lens and eyepiece (there should be no cracks, greasy spots, dirt or other deposits). The condition of the rechargeable battery (this should be charged) and the electrical contacts (there ...
  • Page 18 When used in low temperature In positive temperature conditions, objects being observed conditions, image quality of the (surroundings and background) heat up differently because of surroundings is worse than in thermal conductivity, thereby generating a high temperature positive temperature contrast. Accordingly, image quality produced by the device will be conditions.
