Summary of Contents for LaserLiner SuperCross-Green 3

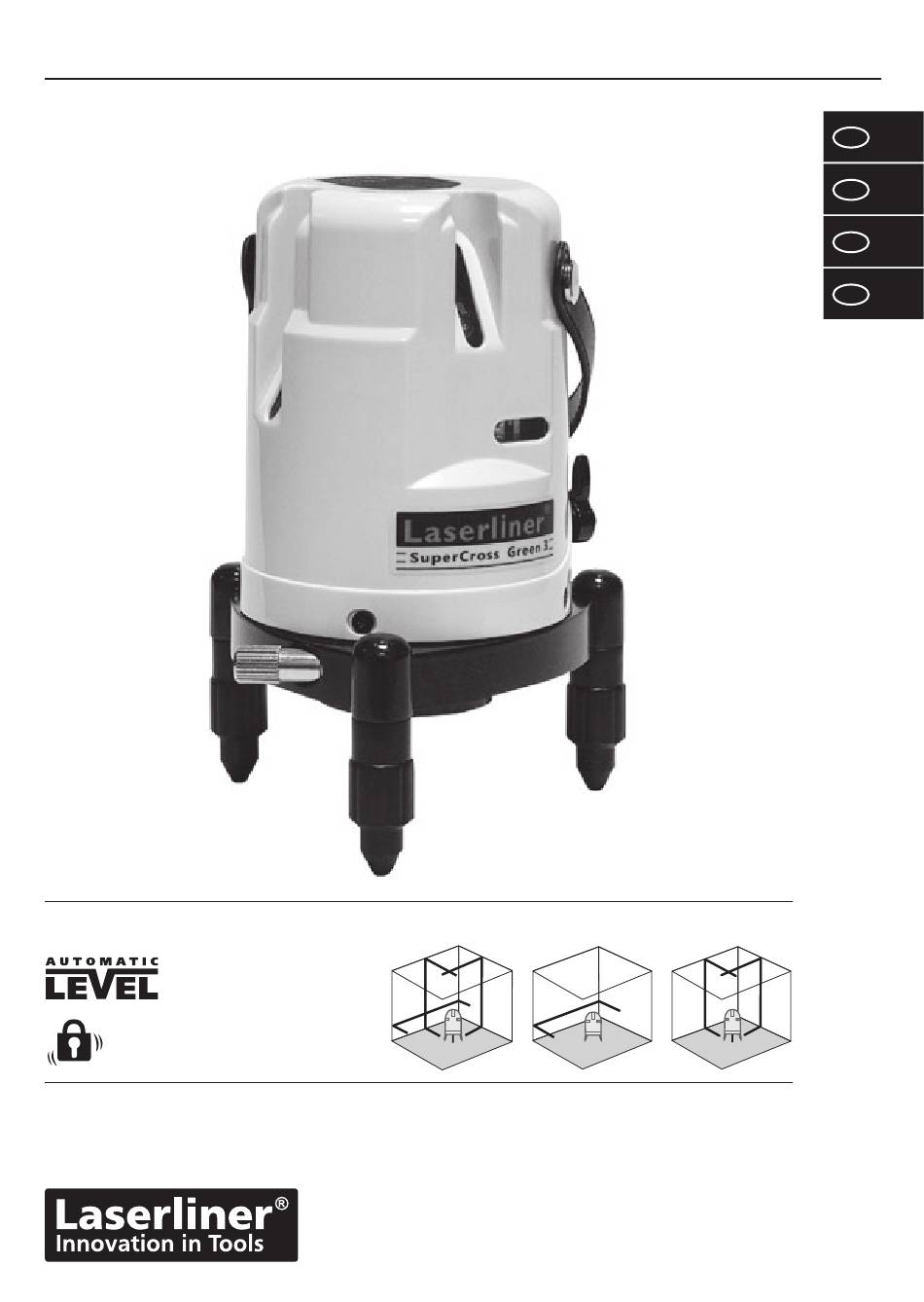

- Page 1 SuperCross-Green 3 1H 2V 1D lock...
- Page 2 Any tampering by unauthorised persons will render this warranty void. In the event that you need to claim warranty, please take the complete device together with all information and the invoice to one of our dealers or send it in to Umarex-Laserliner.
- Page 3 1 Windows for line lasers 2 ON / OFF switch Transport securing device 3 Knob for precision adjustment 4 Adjustable feet 5 5/8” thread (underside) 6 Window for plumb laser (underside) 7 Tripod adapter 8 Round vial for rough adjustment 9 Laser line selection button 10 Battery compartment 11 Battery charge low when LED...
- Page 4 SuperCross-Green 3 Inserting the batteries Open the battery compartment (10) and insert the batteries in accordance with the installation sym- bols, ensuring the correct polarity. Close the cover. Battery charge low: replace batteries when LED (11) lights up. Switching on Turn the ON/OFF switch (2) to the left, thereby releasing the transport securing device.
- Page 5 Note: Regularly check the calibration before use, after transport and after extended periods of storage. Technical data Self-levelling range 1,5° Precision + 2 mm / 10 m Laser wavelength line lasers 532 - 542 nm Laser wavelength plumb laser 650 nm Laser class line lasers 3R / <...
- Page 6 SuperCross-Green 3 Preparing the calibration check: It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 metres apart. Switch the device on (Laser cross ON). The best calibration results are achie- ved if the device is mounted on a tripod.
- Page 7 SuperCross-Green 3 lock SERVICE Umarex GmbH & Co KG – Laserliner – Möhnestraße 149, 59755 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: +49 2932 638-333 laserliner@umarex.de Umarex GmbH & Co KG Donnerfeld 2 59757 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: -333...
