▓ 1: INTRODUCTION
CA10 is a SPDIF in, SPDIF out optional kit which supports shuttle product.

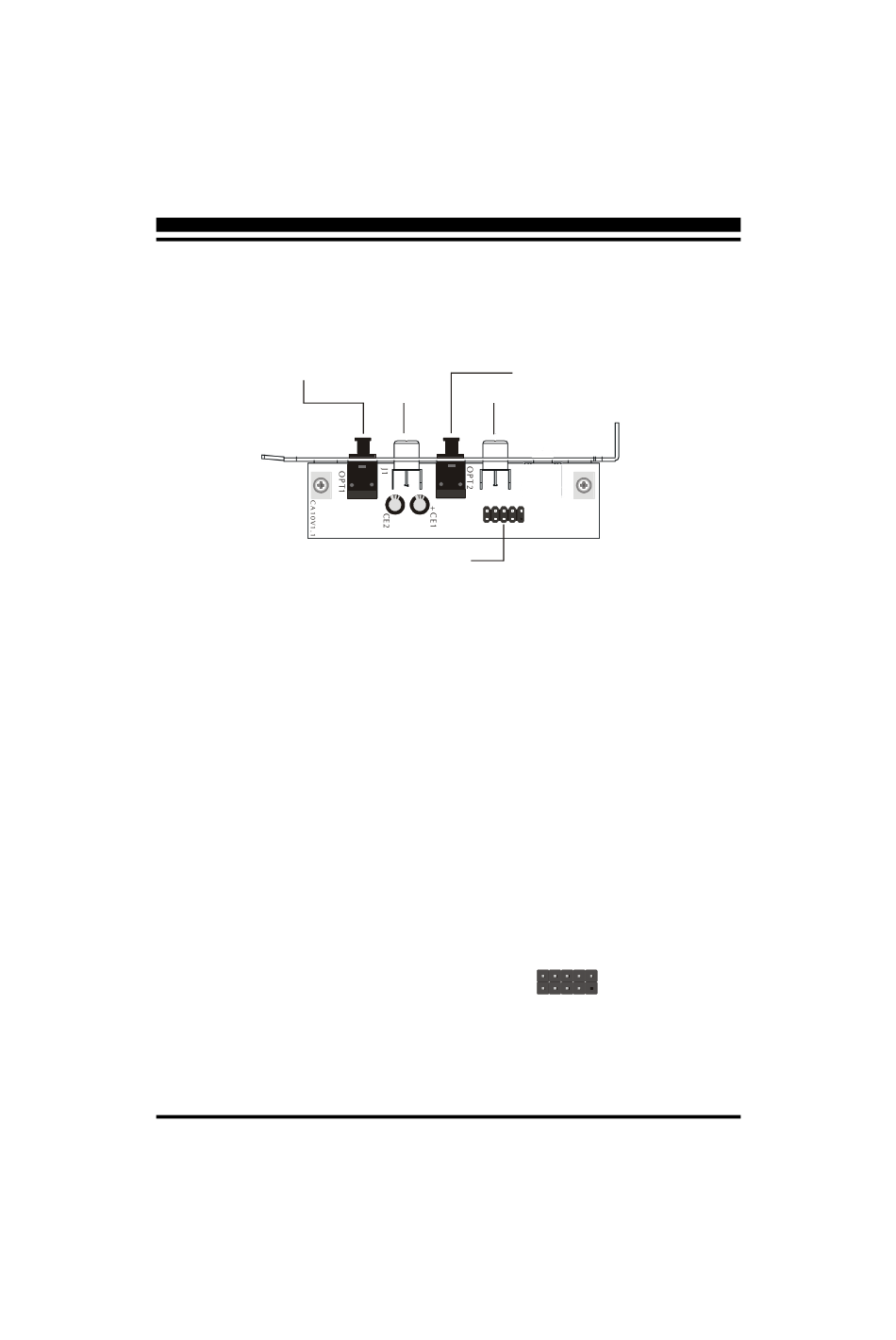

Optical SPDIF OUT
▓ 2: SPECIFICATION
▓ Optical Digital Playback/Recording
▓ Supports Coaxial and Optical SPDIF In/Out
▓ 3: PACKAGE CHECKLIST
The CA10 complete package should include:
▓ CA10
▓ 2*5 cable
▓ This manual
▓ 4: HARDWARE INSTALLATION
1. Switch off your system and turn off all other peripheral you may have attached to
your computer, then remove your computers case cover.
2. When you want to SPDIF in and SPDIF out function, you can use 2*5 cable connec-
tion CA10 2*5 pin and motherboard SPDIF 2*5 pin.
3. Find one empty slot on back panel of chassis, secure CA10 bracket with a screw.
4. Replace the computer cover.
Coaxial SPDIF OUT
Coaxial SPDIF IN
JP 2
2
1
2*5 Header
- 1 -
Optical SPDIF IN
10
1
SPDIF
