- Page 1 SRG-3352C IoT Gateway System User’s Manual 1 Last Updated: January 28, 2021...
- Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
- Page 3 Acknowledgements All other products’ name or trademarks are properties of their respective owners. Microsoft Windows is a registered trademark of Microsoft Corp. ⚫ Intel® is a registered trademark of Intel Corporation ⚫ ARM, Cortex, and Cortex-A8 are registered trademarks of Arm Limited (or its ⚫...
- Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity SRG-3352C ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately. Preface...
- Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document. Preface...
- Page 6 All cautions and warnings on the device should be noted. All cables and adapters supplied by AAEON are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by AAEON to prevent system malfunction or fires.
- Page 7 As most electronic components are sensitive to static electrical charge, be sure to ground yourself to prevent static charge when installing the internal components. Use a grounding wrist strap and contain all electronic components in any static-shielded containers. If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii.
- Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
- Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON System QO4-381 Rev.A0 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯 (Pb) (Hg) (Cd) 醚(PBDE) (Cr(VI)) (PBB) 印刷电路板 × ○ ○ ○ ○ ○ 及其电子组件 外部信号 × ○ ○ ○ ○ ○ 连接器及线材 外壳...
- Page 10 China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control...
-
Page 11: Table Of Contents
Table of Contents Chapter 1 - Product Specifications..................1 Specifications ......................2 Chapter 2 – Hardware Information ..................4 Dimensions ....................... 5 I/O Location ......................6 Wireless Hardware Setup ..................8 2.3.1 Mini Card Installation ................8 2.3.2 SIM Card Installation ................10 Chapter 3 –... - Page 12 Enter Bluetooth Control Panel ............22 ➢ Scan for Bluetooth Devices ..............22 ➢ Pair Bluetooth Device ................23 ➢ Check Paired Bluetooth Devices ............23 ➢ System Management .................... 24 Check OS Version .................. 24 ➢ Check Storage Status ................24 ➢...
-
Page 13: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications... -
Page 14: Specifications
Specifications ARM Cortex-A8 800 MHz RISC Processor Memory DDR3L 1 GB General Storage eMMC 8G OS Supported Debian 10 (buster) Auto-sensing 10/100/1000 Mbps ports (RJ45 Ethernet Ports connector) x 2 USB Ports USB 2.0, (Type A Connector) x 2 Serial Ports RS-485-2w ports (terminal block) x 2 Interface Expansion Ports... - Page 15 Others Chapter 1 – Product Specifications...
-
Page 16: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information... -
Page 17: Dimensions
Dimensions Chapter 2 – Hardware Information... -
Page 18: I/O Location

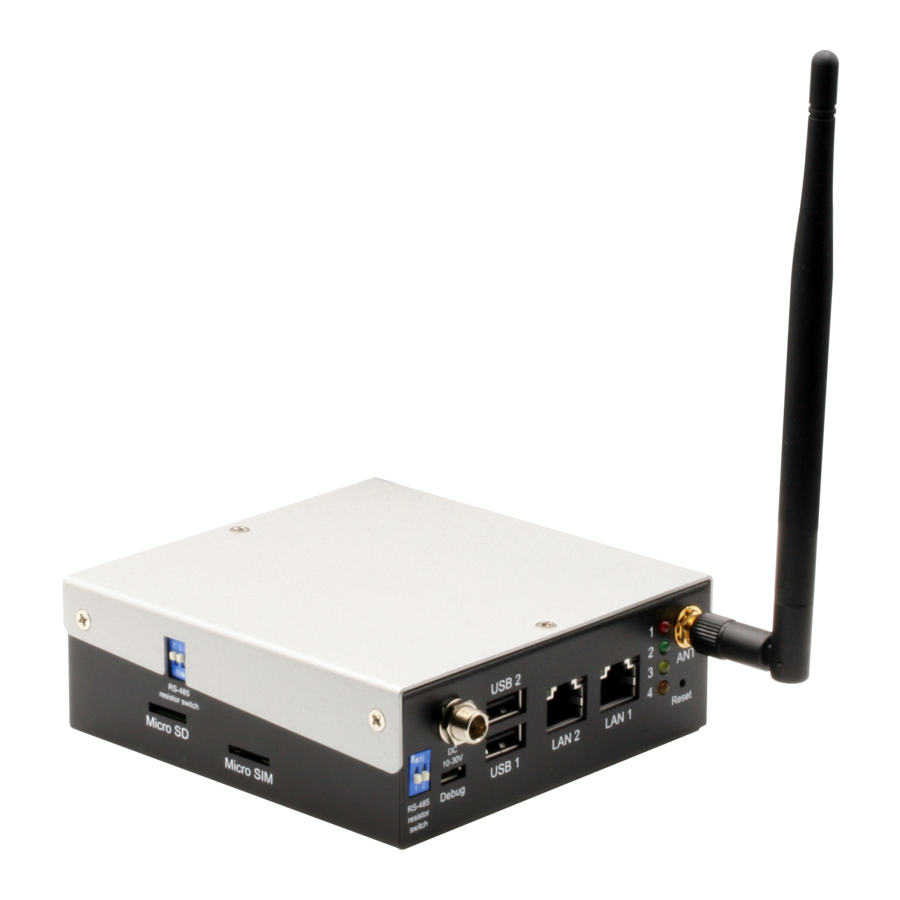

I/O Location Position Function Antenna Connector Supports 2.4G or LTE antennas Reset Button Reboots the system Debug Port User can login into gateway’s Linux OS via SSH (Micro-USB port) RS-485 Terminal Resistor Used when there are long distances between the gateway and RS-485 device. - Page 19 Gigabit LAN Port Standard RJ-45 LAN jack to connect with Local Area Network (LAN). Function Status Yellow Active Status ON: LAN link is established. OFF: LAN link is not established. Blinking: Data received and transmitted. Orange Link Speed Green: 10/100Mbps. /Green Status Orange: 1000Mbps.
-
Page 20: Wireless Hardware Setup
Wireless Hardware Setup The SRG-3352C features both a SIM Card and Mini Card slot for connecting to wireless networks such as 4G. This section details how to install a SIM Card and 4G/LTE module on the mini card slot. 2.3.1 Mini Card Installation Step 1. - Page 21 Step 4. Remove the bottom cover and install the 4G/LTE module in the Mini Card slot, and connect the coaxial cable to the 4G/LTE module. Step 5. Place the bottom cover and secure with screws. Step 6. Place the top cover and secure with screws. Chapter 2 –...
-
Page 22: Sim Card Installation
2.3.2 SIM Card Installation To install a SIM Card (Micro SIM) simply insert the SIM Card into the slot on the side of the system as shown. Take care to make sure the card is oriented correctly. Chapter 2 – Hardware Information... -
Page 23: Chapter 3 - Gateway Setup And Configuration
Chapter 3 Chapter 3 – Gateway Setup and Configuration... -
Page 24: Connecting To System
Connecting to System When connecting a PC or laptop to the SRG-3352C system, it is recommended to use PuTTY with Windows 10. Users can download the software from the PuTTY website. https://www.putty.org/ For Windows 7 or older, users must first set up their PC to recognize the system. The following instructions detail how to set up your PC to connect to the SRG-3352C system by installing the CDC Serial Driver. - Page 25 Step 3. Set the PuTTY configuration Open PuTTY and use the following settings to connect to the system. Serial Port Settings Baud rate 115200 bps Parity None Data bits Stop bits Flow Control None Chapter 3 – Gateway Setup and Configuration...
- Page 26 Step 4. Login to the system You will see the login prompt when successfully connected to the gateway. Default login information is: Login Settings Username root Password AAEONiot2017 You will see the welcome page when login is successful. Chapter 3 – Gateway Setup and Configuration...
-
Page 27: User Account Management
User Account Management This section details how to manage user accounts on the system. Add User Account ➢ Command Line: ✓ $ useradd -m -G sudo -s /bin/bash USERACCOUNT USERACCOUNT -> Account name you want to add Result: ✓ Delete User Account ➢... -
Page 28: Network Settings
Network Settings This section details how to check and setup the network settings. This requires installing the Debian package “Network Manager” to manage the network settings. Install the “Network Manager” Package ➢ Before performing the following command, make sure the gateway is connected to the internet by a hub, switch or router. -
Page 29: Set Static Ip
Set Static IP ➢ Edit the IP Address: ◼ Command: ✓ $ nmcli con modify ‘DEVICENAME’ ipv4.address ‘IP’ ipv4.method manual DEVICENAME -> Choose either eth0 or eht1 IP-> The IP address you wish to set for this device Result: ✓ Set Dynamic IP ➢... -
Page 30: Cellular Network Settings
Cellular Network Settings This section details how to check and manage the cellular network settings. Check the Cellular Module’s APN ➢ Command: ✓ $ vim /etc/ppp/peers/wcdma-chat-connect Result: ✓ Key in the corresponding APN, for example “internet”, then save the script file. -
Page 31: Dial-Up The Cellular Module
Dial-up the Cellular Module ➢ Dial up the Cellular Module: ◼ Command: ✓ $ pppd call wcdma & Result: ✓ Check the Cellular Module connection: ◼ Command: ✓ $ ifconfig Result: ✓ System will return “ppp0” in the “ifconfig” if dial-up is successful. Chapter 3 –... -
Page 32: Wifi And Bluetooth Network Settings
WiFi and Bluetooth Network Settings This section details how to check and setup WiFi and Bluetooth wireless networks. Scan for WiFi Access Point ➢ Command: ✓ $ nmcli dev wifi Result: ✓ Connect to WiFi Access Point ➢ Command: ✓ $ nmcli dev wifi connect ‘SSID’... -
Page 33: Check Wifi Connection Status
Check WiFi Connection Status ➢ Command: ✓ $ nmcli dev Result: ✓ If connected, WiFi STATE will display “connected” as below: If disconnected, WiFi STATE will display “disconnected” as below: Chapter 3 – Gateway Setup and Configuration... -
Page 34: Enter Bluetooth Control Panel
Enter Bluetooth Control Panel ➢ Command: ✓ $ sudo bluetoothctl Result: ✓ Scan for Bluetooth Devices ➢ Command: ✓ $ power on $ scan on Result: ✓ Chapter 3 – Gateway Setup and Configuration... -
Page 35: Pair Bluetooth Device
Pair Bluetooth Device ➢ Command: ✓ $ pair MAC_ID MAC_ID->Bluetooth MAC ID for device you want to connect Result: ✓ Check Paired Bluetooth Devices ➢ Command: ✓ $ paired-devices Result: ✓ Chapter 3 – Gateway Setup and Configuration... -
Page 36: System Management
System Management This section details how to check and setup the system settings like OS version, set RTC, etc. Check OS Version ➢ Command: ✓ $ cat /etc/os-release Result: ✓ Check Storage Status ➢ Command: ✓ $ df -h Result: ✓... -
Page 37: Set Date And Time
Set Date and Time ➢ Check Current Date and Time ◼ Command: ✓ $ timedatectl Result: ✓ Set Date and Time ◼ Command: ✓ $ date MMDDhhmmYYYY MM -> Month DD -> Day hh -> Hour mm -> Minute Result: ✓... -
Page 38: I/O Management
I/O Management This section details how to operate I/O functions like GPIO, RS-232/422/485, CAN bus etc. Control GPIO ➢ Command: ✓ Set GPIO ON: $ echo 1 > /sys/class/leds/srt3352:led1/brightness Set GPIO OFF: $ echo 0 > /sys/class/leds/srt3352:led1/brightness Result: ✓ Number Label Picture Number...
