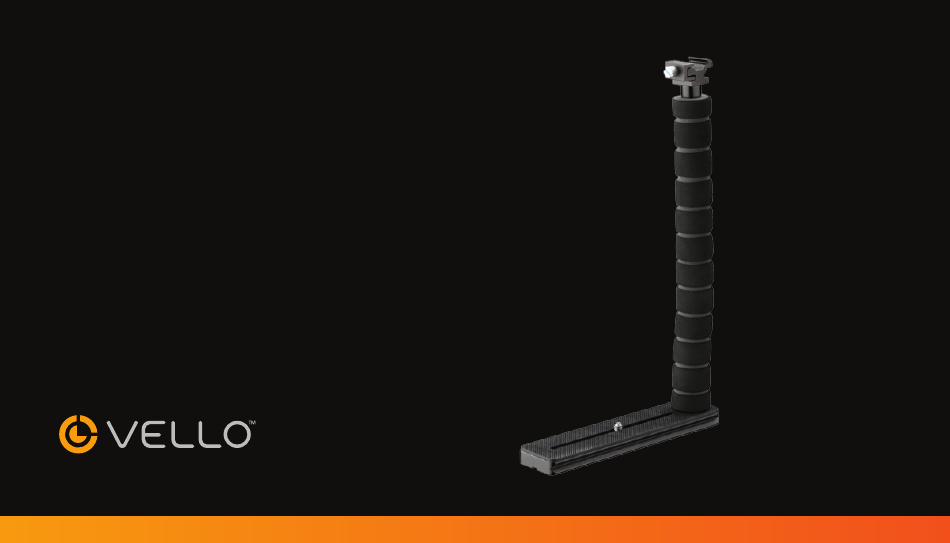

- Page 1 FLEXIBLE MACRO BRACKET WITH ARCA-STYLE MOUNT User Manual...
- Page 2 THANK YOU FOR CHOOSING VELLO The Vello CB-900 Flexible features a padded, flexible 1/4"-20 threaded stud with Macro Bracket with Arca-Style arm that allows you to attach D-ring offers easy attachment Mount is designed for DSLR a shoe mount flash or LED...
- Page 3 OVERVIEW Cold-shoe locking screw Cold-shoe Padded flexible arm Adjustable 1/4"-20 camera mounting stud with D-ring Camera bracket with Arca-style mount...
- Page 4 MOUNTING THE CAMERA Screw the mounting stud on the bottom of the bracket into the camera’s 1/4"-20 tripod thread.
- Page 5 MOUNTING COLD-SHOE ACCESSORIES When using a shoe-mount flash or LED light, mount the device by loosening the cold-shoe locking screw and sliding the mounting foot into the cold-shoe of the bracket. Tighten the cold-shoe locking screw, and then tighten the locking collar on the flash or LED light until secure.
- Page 6 CONNECTING THE TTL CORD 1. When using a TTL cord, 3. Mount your hot-shoe flash install the camera-end onto the flash-end of the of the TTL cord into the TTL cord by sliding it into camera’s hot shoe, then the cord’s hot shoe, and tighten the locking collar on then tighten the flash’s the TTL cord.
- Page 7 Vello along with the RMA number and proof of discretion, of any product that fails during normal purchase. Shipment of the defective product is use of this product in its intended manner and in its at the purchaser’s own risk and expense.
- Page 8 www.vellogear.com All other trademarks are the property of their respective owners.
