4.0m, 5.0m, 6.0m and 7.0m
Rippa
Folding
Parts list 2008
and
Operators Manual
w
w
w
.
s
u
m
o
w
w
w
.
s
u
m
o
Tel. 01759 371700
1
.
c
o
m
1
.
c
o
m
Fax. 01759 371001
The Airfield
Full Sutton
York
YO41 1HS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rippa and is the answer not in the manual?

Questions and answers

Related Manuals for Sumo Rippa

Summary of Contents for Sumo Rippa

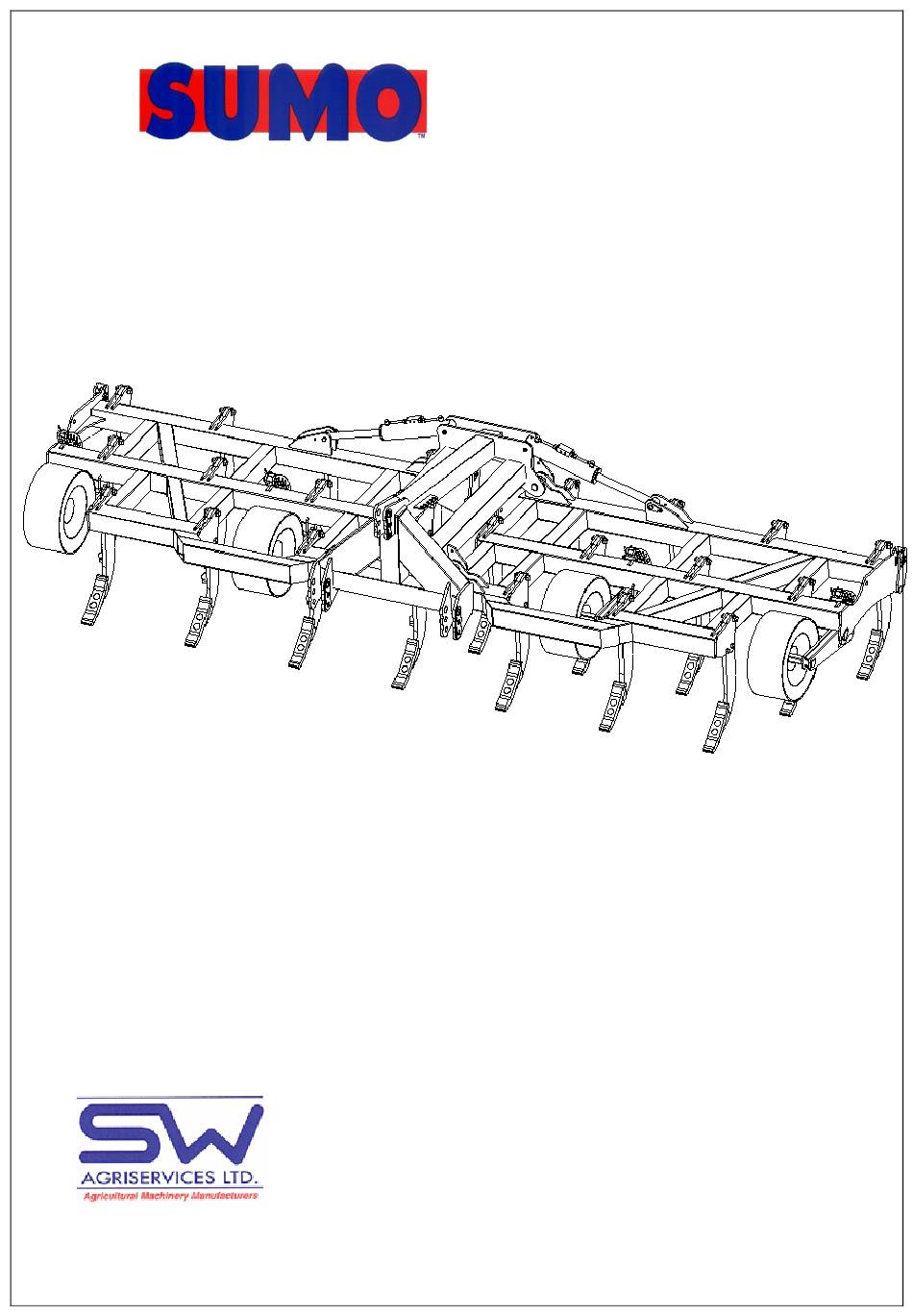

  • Page 1 Rippa 4.0m, 5.0m, 6.0m and 7.0m Folding Parts list 2008 Operators Manual The Airfield Full Sutton York YO41 1HS Tel. 01759 371700 Fax. 01759 371001...

  • Page 2: Registration

    York YO41 1HS Tel. 01759 371700 Fax. 01759 371001 SUMO SERIAL No: For your own records. (Serial plate on side of headstock) Rippa Registration Document NAME: ADDRESS: Post Code DATE: SUMO SERIAL No.: (Serial plate on side of headstock) DEALERSHIP...

  • Page 3: Summary

    2.0 Summary The Sumo Rippa is a useful tool ideally suited to the potato grower, the Sumo Rippa is used after ploughing to mix and aerate the soil ahead of bed formers or tillers. It can also be used for primary cultivation post-harvest and can work down to 14-16in to remove plough pan compaction.

  • Page 4: Table Of Contents

    Contents 1.0 Registration ............................1 2.0 Summary……………………………………………………………………………………………2 3.0 Safety ..............................4 3.1 Qualification and Training ......................4 3.2 General safety ..........................5 3.3 Special safety instructions ......................5 4.0 Operation and Adjustment ......................5 4.1 Operating............................6 4.2 Adjustments ........................... 6 5.0 Maintenance .............................

  • Page 5: Safety

    (accident prevention).  SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and ancillary equipment not supplied and/or approved by SUMO.

  • Page 6: General Safety

    3.2 General safety  Warning signs and other notices on the machine provide important information for the safe operation. Observing them will serve your safety.  Before starting work, make yourself familiar with all the equipment and controls as well as their functions.

  • Page 7: Operation And Adjustment

    The top link should be as short as possible whilst remaining as close to horizontal as is achievable. In the majority of cases this means using the bottom hole on the Rippa and the top hole on the tractor. It is important to ensure the machine is running level to allow the optimum level of soil disturbance as well as to prolong the life of the wearing parts.

  • Page 8: Maintenance

    5.0 Maintenance The condition of the Rippa legs and the points should be regularly monitored in order to maintain the most efficient use of the machine. Exposed chrome ram rods should be greased weekly prevent these valuable parts from rusting and causing costly oil leaks.

  • Page 9: Parts And Assembly

    6.0 Parts and Assembly 6.1 Overview Item Description Page Point Assembly Leg & Shear bolt Assembly Depth Control Wheel Assembly Main Frame...

  • Page 10: Point Assembly

    6.2 Point Assembly Quantity/4 m Quantity/5 m Quantity/6 m Quantity/7 m Item Part No. Description machine machine machine machine SW195 Rippa Point SW271 Rippa leg SWM12003 M12 plain nut M12x65 plough bolt SWM1265PB short M12x90 plough bolt SWM1290PB long...

  • Page 11: Leg & Shear Bolt Assembly

    Quantity/6m Quantity/7m Item Part No. Description machine machine machine machine SWM20100 M20 x 100 bolt SWM2090SB Rippa Shear Bolt SWM20004 M20 nylock nut SWM20001 M20 flat washer SWM24004 M24 nylock nut SWM24001 M24 flat washer SWM24100 M24x100 bolt SW271 Rippa leg...

  • Page 12: Depth Control

    Quantity/4m Quantity/5m Quantity/6m Quantity/7m Item Part No. Description machine machine machine machine SW274 Rippa wheel depth frame Rippa wheel long pivot SW275 SWM1240 M12x40 bolt SWM12003 M12 plain nut SW276 Rippa depth pin SWB105 Linch Pin SWB176 30x40x45 oilite bush...

  • Page 13: Wheel Assembly

    Item Part No. Description Quantity/4 Quantity/5 m Quantity/6 Quantity/7 machine machine machine machine Rippa 5 stud 609mm SW584 depth wheel Rippa 5 stud hub SWB151 unbraked complete SWB153 Rippa wheel studs Ripper LH steel depth SW585 wheel arm Ripper LH steel depth...

  • Page 14: Main Frame

    30 x 165 tabbed pin SWM1245 M12x45 bolt SWM12004 M12 nylock nut SW286 30 x 112 tabbed pin SW279 4m Rippa right wing SW280 5m Rippa right wing SW281 6m Rippa right wing SW282 7m Rippa right wing SW284 50 x 165 tabbed pin...

  • Page 15: Stickers And Paint

    6.7 Stickers and Paint RIPPA RIPPA Rippa Sticker...

  • Page 16: Hydraulics

    7.0 Hydraulics 7.1 Wings open/close circuit Item Part No. Description Quantity SWH147 Male quick coupler 1/2’’ dowty washer SWH142 ½’’ Hyd hose bulk head to quick coupler SWH202 ½’’ banjo bolt SWH143 ½’’ dowty washer SWH142 SWH132 706/4 ram SWH156 12L Tee branch 3/8’’...
