Summary of Contents for Sumo Mixidisc

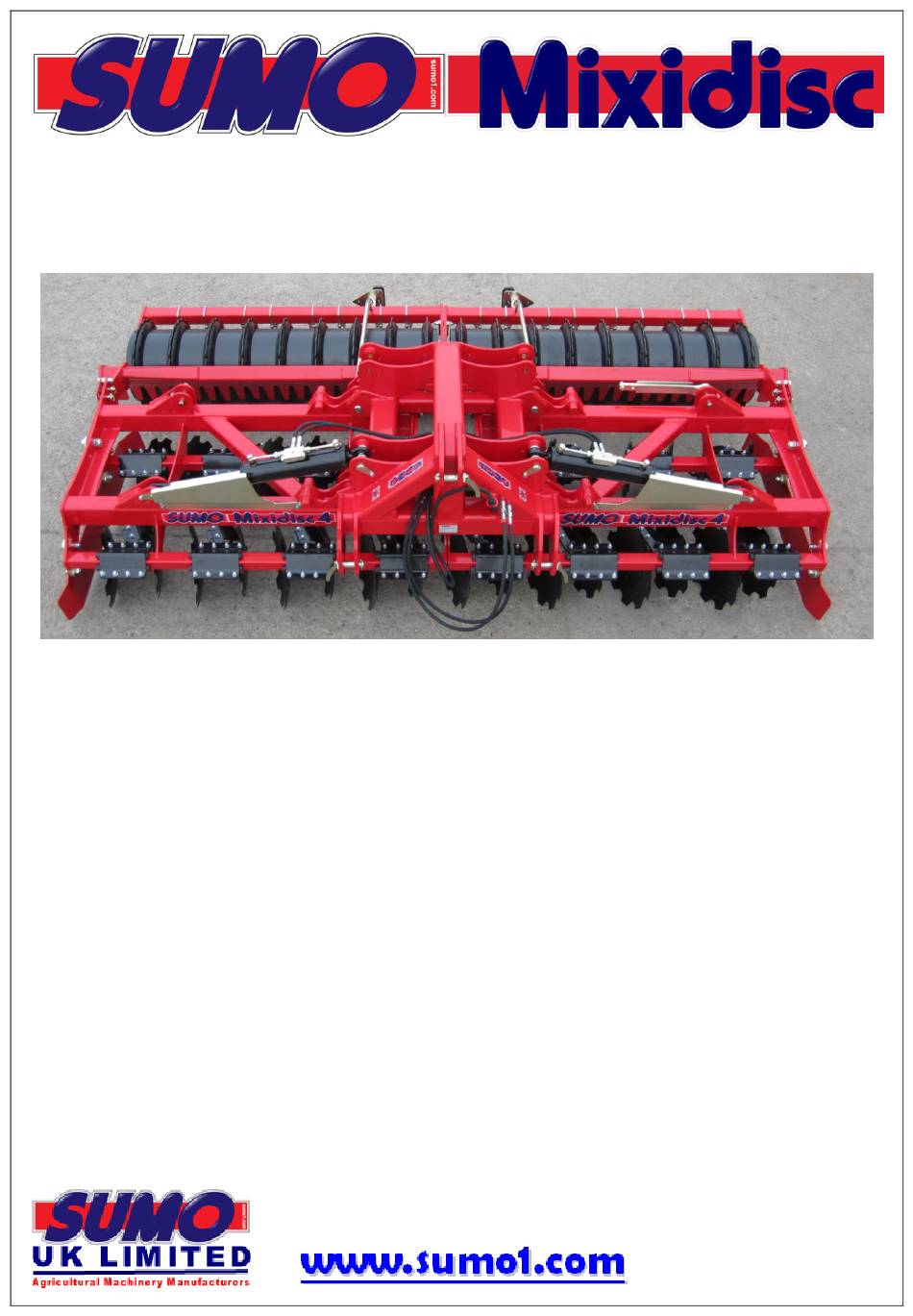

- Page 1 2015 Operator Manual Parts List Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901...
-
Page 3: Registration
1.0 Registration To activate your SUMO Warranty, you must complete this page and send it back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 (NO REGISTRATION = NO WARRANTY) SUMO SERIAL No: For your own records. - Page 4 In order to obtain your free pair of Sumo overalls and baseball cap please fill in this form and send back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 SUMO SERIAL No:...
- Page 5 All these features make a packer which presses and firms to a higher quality with a lower power requirement than any other packer available. Before using the SUMO Mixidisc it is absolutely necessary that you read this Operators Manual and Safety Instructions attentively.
-
Page 6: Table Of Contents
Table of Contents Contents 1.0 Registration ...Page 1 2.0 Summary ...Page 3 3.0 Safety ...Page 5 3.1 Qualification & Training ...Page 5 3.2 General Safety ...Page 6 3.3 Special Safety Instructions ...Page 6 4.0 Operation & Adjustment ...Page 7 4.1 Operation ...Page 7 4.2 Adjustment ...Page 7... -
Page 7: Safety
(accident prevention). SUMO shall not be responsible for any damage caused by the use of spare parts, accessories and ancillary equipment not supplied and/or approved by SUMO. -
Page 8: General Safety
Therefore, ensure adequate steering and braking ability. If there is a requirement to lift the Sumo Mixidisc, appropriate lifting apparatus must be attached through the lifting eye in the centre of the machine. The 4m Mixidisc weighs approximately 3220kg. -
Page 9: Operation & Adjustment
Forward working speed should be governed by the local conditions as well as the finish produced by the Sumo Mixidisc 4.2 Adjustments To adjust the disc working depth, the weight must first be taken off the packer arms before the lynch pins and depth pins are removed. -
Page 10: Maintenance
5.0 Maintenance The packer bearings should be greased with one pump once a week and after washing off. The disc bearings should be greased until old grease is forced out once a week when in normal use and after washing off. The condition of the discs should be regularly monitored in order to maintain the most efficient use of the machine. -
Page 11: Twin Disc Unit
Disc (end of SWB184 disc row, Not Drawings and design information found Shown) herein remain the sole property of Sumo UK Ltd. Reproductions may only be M12 x 40 Cup made with the permission of the owner. SWM1240CHSQ Head Square... -
Page 12: Packer Bearing Assembly
M12 x 40 Cap Head SWM1240CH Bolt Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be SWM1670CSK M16 x 70 Countersunk made with the permission of the owner. Bolt (not shown) -
Page 13: Scraper Assembly
Scraper Scraper Assembly M12 Spring SWM12002 Washer Triple Scraper Drawings and design information found herein remain the sole property of Sumo SW1045 Hanger (not UK Ltd. Reproductions may only be made with the permission of the owner. shown) SCALE 1:5... - Page 14 SWM2090 M20 x 90 Bolt SWM20001 M20 Flat Washer Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be made with the permission of the owner. SWM20004 M20 Nylock Nut SCALE 1:5...
-
Page 15: Soil Retainer
SW1049 Hanger Soil Retainer Assembly SWM20004 M20 Nylock Nut Drawings and design information found herein remain the sole property of Sumo L/H Soil Retainer UK Ltd. Reproductions may only be SW1983 made with the permission of the owner. (not shown) -
Page 16: Light Bracket Assembly
Light Bracket Assembly SWM6001 M6 Flat Washer SWM6004 M6 Nylock Nut Drawings and design information found herein remain the sole property of Sumo Light Wiring Loom UK Ltd. Reproductions may only be SWB175 made with the permission of the owner. (not shown) -
Page 17: Folding Rams
Folding Rams Pin (not shown) Dog Bone (not SW1998 shown) Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be Dog Bone Holder made with the permission of the owner. SW1999 (not shown) -
Page 18: Linkage Pins
TITLE: Linkage Pins Cat III Bottom Link SW626 Drawings and design information found herein remain the sole property of Sumo UK Ltd. Reproductions may only be SWB105 Cat III Lynch Pin made with the permission of the owner. SCALE 1:10... -
Page 19: Stickers
6.9 Stickers and Paint Part Sticker Description Quantity Big Sumo horizontal sticker SWB125 450 x 125mm Large Mixidisc sticker SU095 320 x 125mm Small Mixidisc Sticker SU096 Big Union Jack sticker 150 x 100mm SWB127 SWB128 Vertical Sumo sticker 80 x 295mm...
