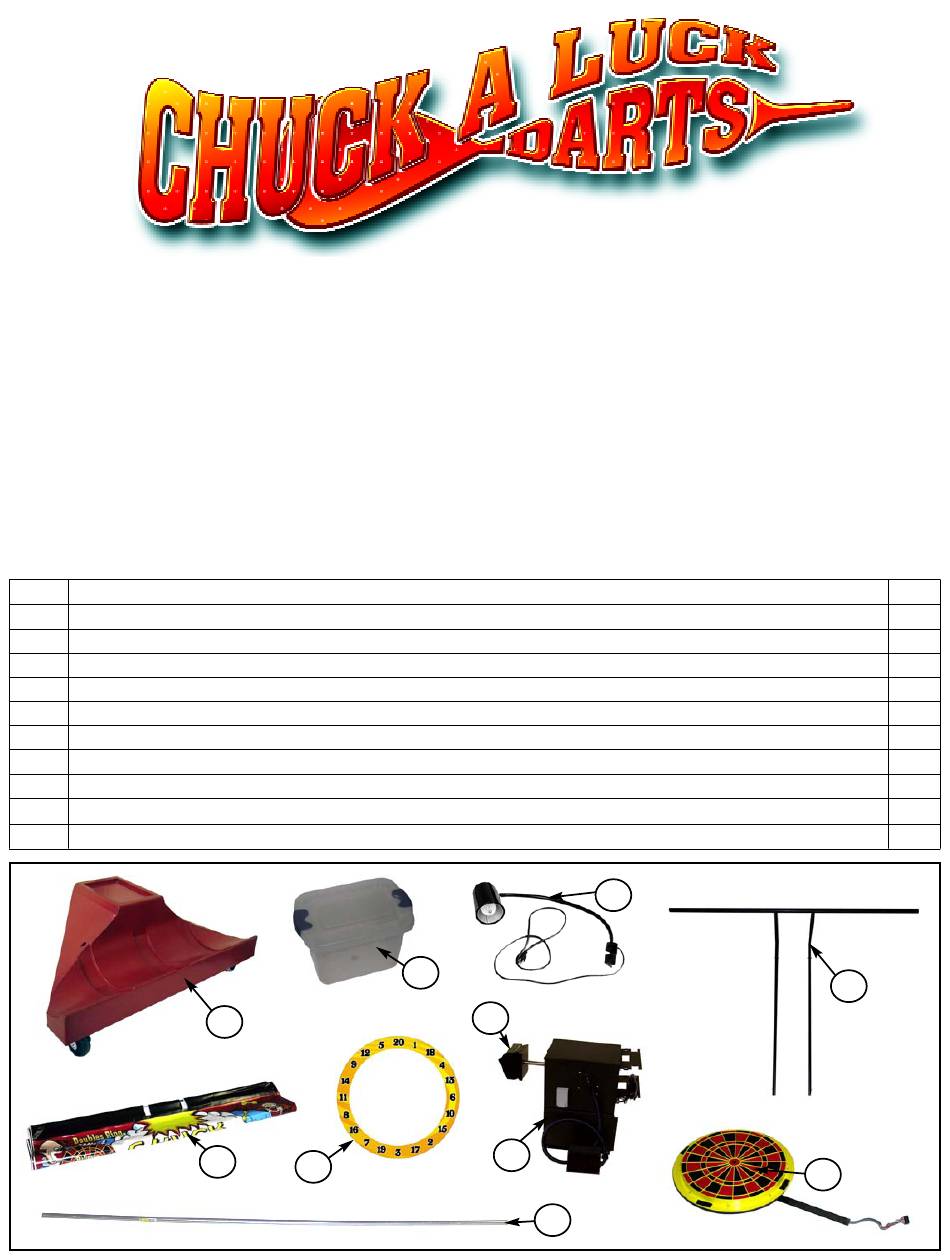

These instructions describe how to properly unpack and assemble the Chuck-A-Luck Darts
machine. These instructions are for the first assembly only. Assembly is easier with two or
more people.
Unpacking
Carefully unpack all the parts for the Chuck A Luck Darts machine. Take care when removing the
box and wrapping. Some of the parts may be damaged by knives. Check over the parts you
have laid out against the parts list below.
Parts List
Item
A
B
C
D
E
F
G
H
I
J
Unpacking and Assembly Instructions
Base w/ 3 Casters Attached
Motor Housing: Contains Motor and Parts Box (Item G)
Darthead Arms Assembly
Parts Box: Contains Lamps (Item I)
A
H
F
Description
Darthead Hub
Drape Support
Numbered Rings
Drape
Lamps
69" Metal Poles
G
C
B
J
I
Qty
1
1
1
4
1
4
1
1
2
2
E
D
