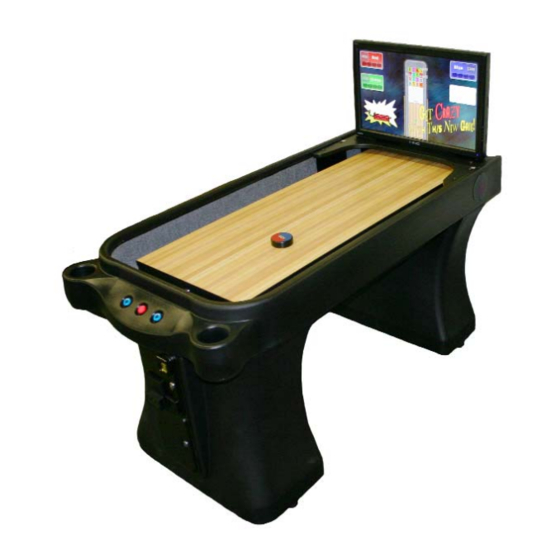

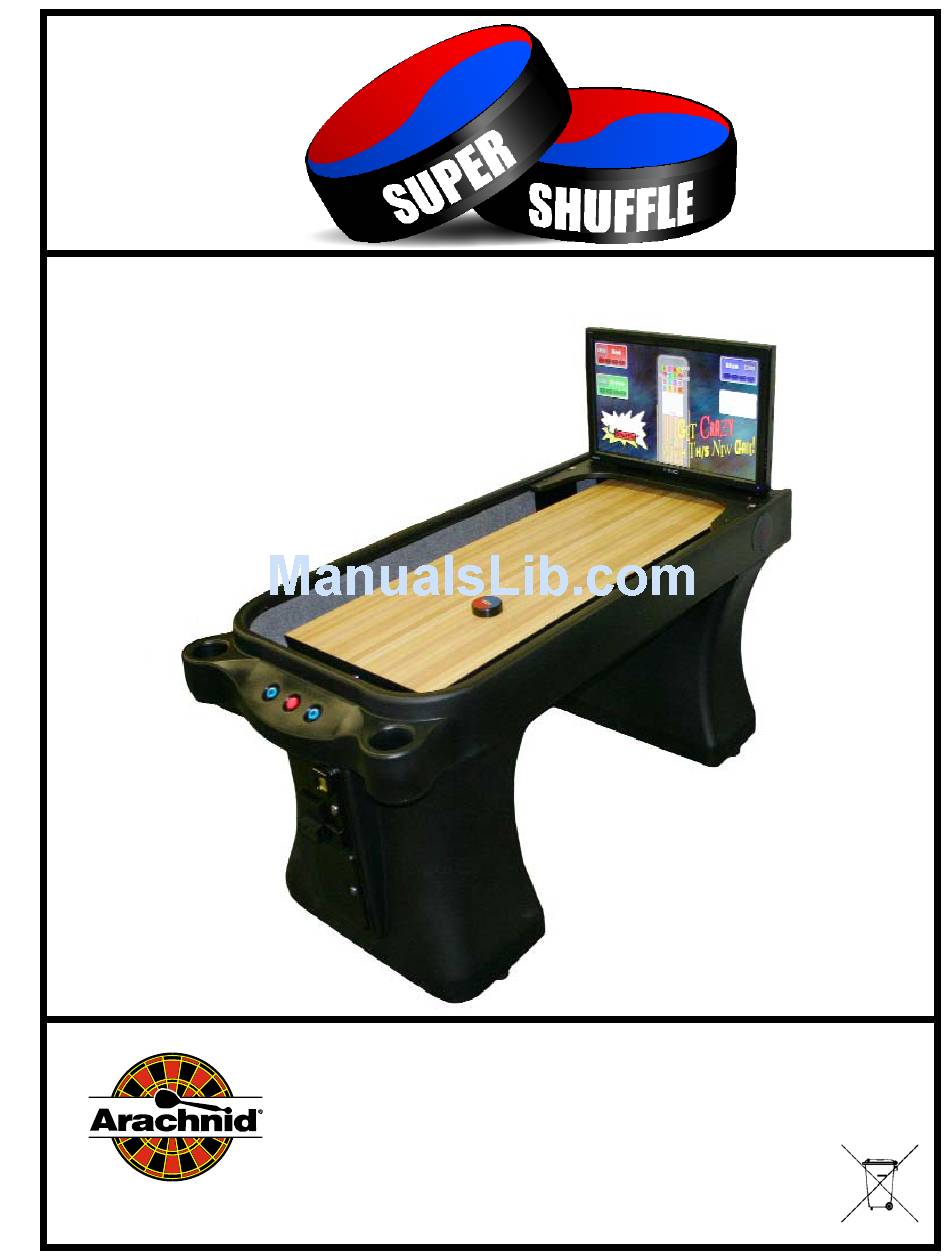

  • Page 1 Series Operator’s Manual 6212 Material Avenue Loves Park, Illinois 61111 815-654-0212 or 800-435-8319 www.arachnidinc.com P/N 42850 Rev. C Software Version 267 The Originator of Electronic Darts...
  • Page 2 Arachnid to Buyer. Arachnid’s liability under this warranty shall be limited to repairing or replacing warranted Goods or, if such Goods cannot be repaired or replaced by Arachnid, to the return of the purchase price paid for the defective or nonconforming warranted Goods; provided, that Buyer shall first return to Arachnid those goods for which a refund of the purchase price is to be made.
  • Page 3 Table of Contents Introduction Section 1: General Description Dimensions Section 2: Features of the Machine Section 3: Super Shuffle Basics Super Shuffle Definitions Using the Console Using the Tournament Mode Section 4: Operation Power Up Main Game Menu Setup Mode...
  • Page 4 The most current version of this manual is always available on the Arachnid website at: http://www.arachnidinc.com Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 5: Introduction

    A. LCD Flat Screen Monitor If you encounter a problem that is not covered in this manual, or if you have any questions, contact Arachnid at The color graphics on the 28” LCD Flat screen monitor 1-800-435-8319 (815-654-0212) from 8 a.m. to 5 p.m. CST.

  • Page 6: Section 3: Super Shuffle Basics

    Enter. These three buttons are used to navigate the menus a. Selecting YES will mix up the playing order. on the Super Shuffle. They also have uses while playing a b. Selecting NO will use a default tournament chart. game.

  • Page 7: Section 4: Operation

    100%. 9. Select Save Jackpot and Return to save your Jackpot This is the basic menu list on the Super Shuffle that every settings and start the promotion. player can see. Use the Up, Down and Enter buttons to navigate the menus.
  • Page 8 Knock Off 15 The first to reach 15 points wins. The player with the most points at the end of the game wins. You Vs. Super Shuffle: Selecting this menu, you have the choice of playing either Knock Off 11 or Classic Bowling PRO: This 1-4 player game plays Knock Off 15 against the computer.

  • Page 9: Setup Mode

    E. Return Collector Settings: By entering in a password in this Selecting this menu will cause the Super Shuffle to enter menu, you will enable a collector to access their reports Attract Mode. Attract Mode is where all the ads and attract from the main game screen or attract screen by holding screens are displayed and cycled through.
  • Page 10 Network Settings: In this menu, you can change the set- tings of the network. View Jackpot History: Gives you a list of every Jackpot promotion you have done on the Super shuffle. For more Network Device: This option allows you to choose info see article 3.4.
  • Page 11 Super for LeagueLeader. You can make this one up yourself. Shuffle machine. Make sure that it is the same in the Super Shuffle as well as LeagueLeader. Encryption Type: This is the security type for your wireless access point.

  • Page 12: Section 5: Technical Description

    Reboot: This causes the shuffleboard to shut off then immediately turn back on. View Boot Log: This report shows the recent history of when the Super Shuffle was turned on and off. F. Transfer Settings Write Settings to USB Drive: This option loads the set- tings of the Super Shuffle to your USB Drive.

  • Page 13: Section 6: Communications

    Encryption Key. 15.Select Network Settings. 16. Select Back to Network Setup Menu once finished. You can network the Super Shuffle machine with other high- speed equipment in your locations. There are two networking 6.3 Manually Setting up your Network types;...

  • Page 14: Section 7: Maintenance

    5. Once adjusted, close the laser access plate and screw it down. he lasers are what the Super Shuffle uses to sense when a puck has scored. From time to time, these may be CAUTION: Do Not Over Tighten The Laser Brackets.

  • Page 15: Replacing The Sensor Module

    NOT OVER TIGHTEN THE BRACKETS. Tightening them more will only damage the bracket. 9. Plug the Super Shuffle back in and turn on the game. 10.Go into Instructions from the main menu. This will turn the lasers on for three (3) minutes.

  • Page 16: Opening The Playing Surface

    The Collector Menu is a quick way to access several operator functions of the Super Shuffle. From this menu you will be able to force a call, access the setup menu and view collector Cabinet reports.

  • Page 17: Section 9: Parts List

    Section 9 Parts List The numbers listed are Arachnid part numbers. Please use the Arachnid numbers when placing an order. Some descriptions are followed by a number in parentheses. This number is the quantity used in that assembly. Return Band Assembly...
  • Page 18 9.1 Super Shuffle - 42798 9.6 Ground Plane Assembly - 42803 Part # Description This is a list of the subassemblies and their part numbers. 42828 Motherboard w/Processor and RAM What will follow after this section is a broken down parts list of those sub assemblies.

  • Page 19: Section 10: Troubleshooting

    The external powerswitch on the back of c. Flip the external power switch on the the Super Shuffle is switched to off. back side of the Super Shuffle to ON. d. The monitor is not plugged into the d. Make sure all connections are inplace junction box in the rear of the Super and secure.
  • Page 20 Up to 100m Indoor IEEE 802.11g IEE 802.11b HiRO H50170 Up to 50m Indoor IEEE 802.11g IEE 802.11b Rosewill RNX-G300EX Up to 80m Indoor IEEE 802.11g IEE 802.11b A2 Recommended Modem Model Name Type Zoom 3095 US USRobotics 5637 Super Shuffle Operating Manual...
