Operation and Installation Manual
Model Number
ODHRAD3EN
Suitable for:
• Domestic Use
• Commercial Use
Not recommended for locations directly near the sea or areas
continually subjected to strong winds.
Appliance must be installed, commissioned and serviced by a licensed tradesperson
in accordance with these instructions and all applicable local rules and
regulations.
Installer, please leave this manual with the customer.

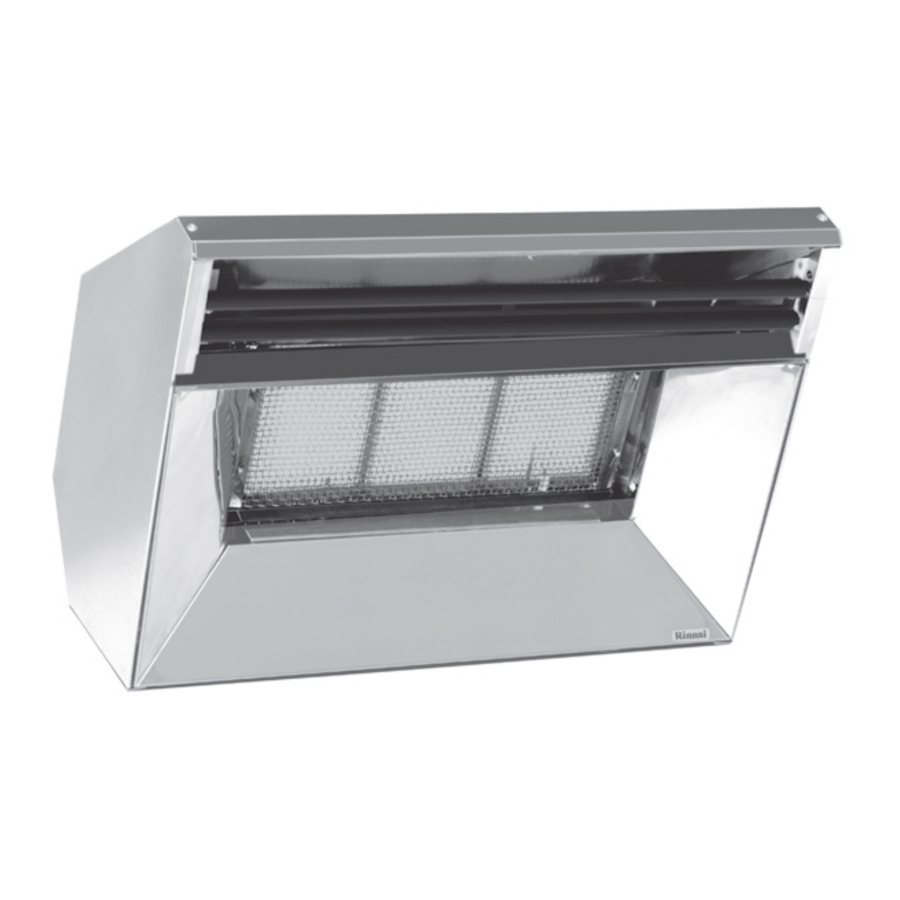

ELECTRONIC OUTDOOR
SUPER RAY NG
outdoor only
outdoor and indoors (subject to room size)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rinnai SUPER RAY NG
Summary of Contents for Rinnai SUPER RAY NG

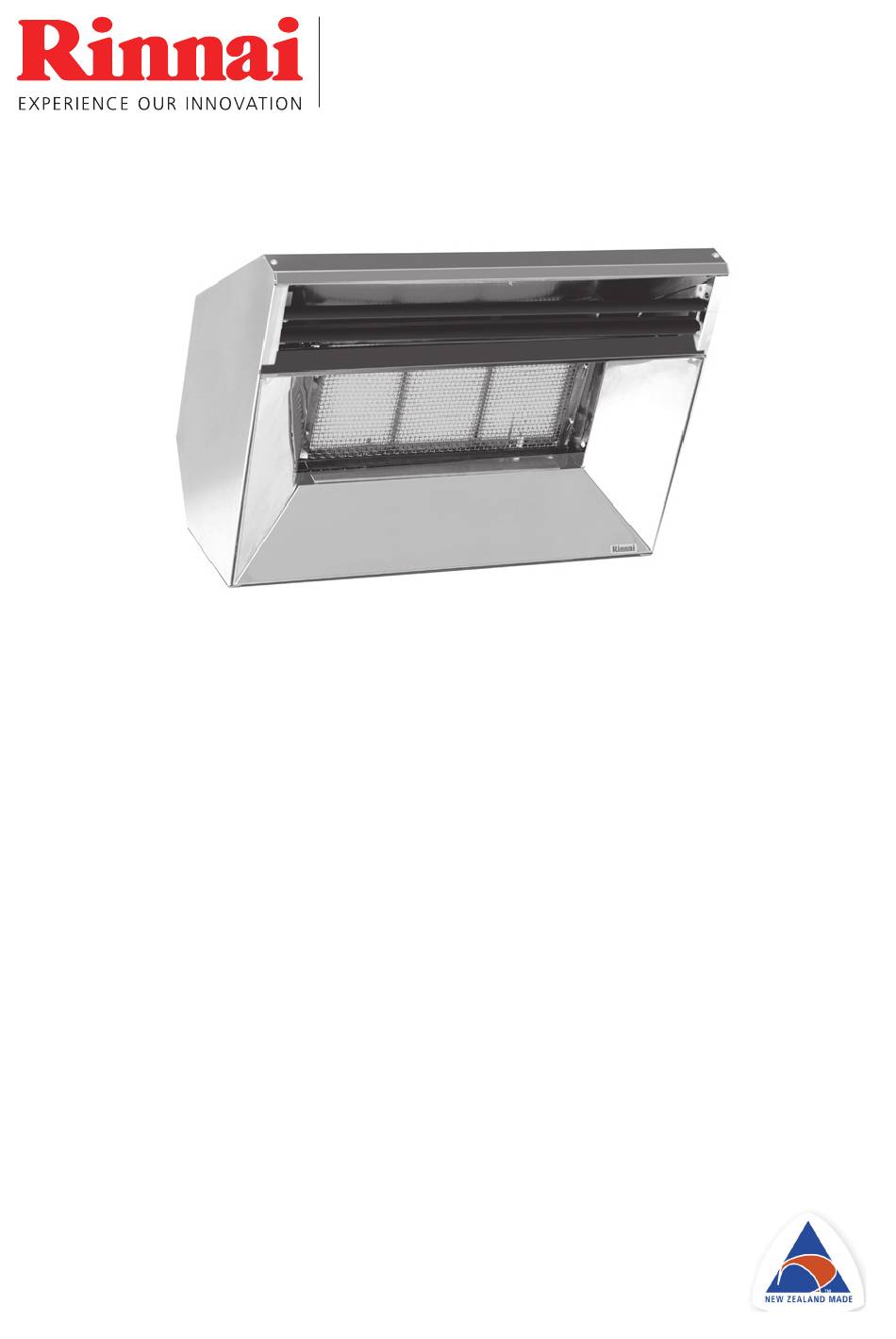

- Page 1 ELECTRONIC OUTDOOR SUPER RAY NG Operation and Installation Manual Model Number ODHRAD3EN Suitable for: • Domestic Use outdoor only • Commercial Use outdoor and indoors (subject to room size) Not recommended for locations directly near the sea or areas continually subjected to strong winds.
-
Page 2: Limited Warranty
2 and accompanied by details of the installing or 3 below, Rinnai New Zealand Limited supervising gas fitter’s registration number (“Rinnai”) will, at its own discretion, either and the gas fitting certification number. replace or repair any defective product at 4. This warranty commences from the date of no charge to the customer. -
Page 3: Table Of Contents
Before Installation Specification Information Procedure Wiring Diagram Installer Details Customer Contacts WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. For assistance or additional information contact Rinnai on 0800 RINNAI (0800 746 624). -
Page 4: Features
Features Congratulations on the purchase of your Rinnai Electronic Super Ray heater. Our customers have enjoyed many years of enjoyment with our standard Super Ray range with the traditional pull cord. We’ve now added an electronic version to the Super Ray family which will make it even easier to use and operate. -
Page 5: Definition Of An Outdoor Area
30% of the remaining wall area is open and unrestricted • In the case of balconies, at least 20% of the total wall area shall be and remain open and unrestricted Rinnai New Zealand Limited Electronic Super Ray Operation and Installation: 10081-B 02-11... -
Page 6: General Information
Rinnai has a service and spare parts network with personnel who are fully trained and equipped to give the best advice on your Rinnai appliance. If your appliance needs servicing, please call Rinnai (0800 746 624) from a land line and select option 1 for a service centre in your area. -
Page 7: Control Panel Operation
Remove battery housing taking care not to hang the housing in the air by the electrical connections. Replace batteries and put back the battery housing and lower panel cover. Rinnai New Zealand Limited Electronic Super Ray Operation and Installation: 10081-B 02-11... -
Page 8: Remote Control
Press either LOW or HIGH until the unit beeps. Standby To turn to pilot only press STAND-BY until the unit beeps. This function is not used in the day to day operation of the appliance. Rinnai New Zealand Limited Electronic Super Ray Operation and Installation: 10081-B 02-11... -
Page 9: Installation Information
Data Plate Right hand surround panel near gas connection Gas Control SIT automatic control system Gas Inlet ½ ” Copper flare union Gas Input 25 MJ/h (high) and 16 MJ/h (low) Gas Type NG only Weight 10 kg Rinnai New Zealand Limited Electronic Super Ray Operation and Installation: 10081-B 02-11... -
Page 10: Procedure
6. When the installation and testing is completed, explain to the customer about use and care of the unit and understands the instructions. Leave these instructions with the customer. Rinnai New Zealand Limited Electronic Super Ray Operation and Installation: 10081-B 02-11... -
Page 11: Wiring Diagram
9 V - 2.1 mm regulated adaptor must be used when unit is powered through the 9 V DC socket (supplied with unit) Installer Details Company name:______________________________________________________________ Installer name:_______________________________________________________________ Address:____________________________________________________________________ ___________________________________________________________________________ Phone:_______________________________ Mobile:______________________________ Certificate of Compliance number for installation: ____________________________________ Signed:______________________________ Date:_______________________________ Rinnai New Zealand Limited Electronic Super Ray Operation and Installation: 10081-B 02-11... -
Page 12: Customer Contacts
Consumers: 0800 RINNAI (746 624) Installers: 0800 TO RINNAI (86 746 624) Address: 105 Pavilion Drive, Mangere, Auckland PO Box 53177, Auckland Airport, Auckland 2150 Phone: (09) 257 3800 Fax: (09) 257 3899 Email: info@rinnai.co.nz Website: www.rinnai.co.nz...
