C
B
PARTS INCLUDED
Item
A
B
C
D
A
2
A
Qty
Item #
Top
1
Shelf
1
Leg
*
4
E

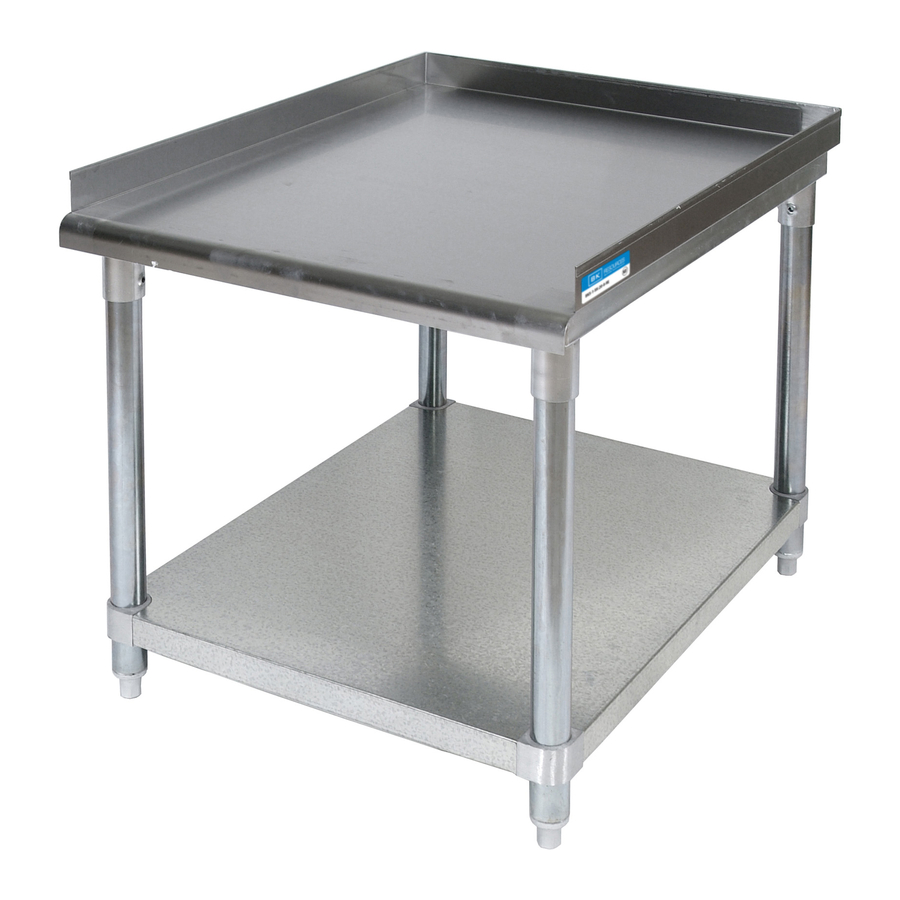

Equipment Stands
ASSEMBLY INSTRUCTIONS
EQUIPMENT STANDS
250508 30"W x 25"D x 24"H
250509 30"W x 37"D x 24"H
250510 24"W x 24"D x 20"H
HARDWARE INCLUDED
Item
Item #
D
Set Screw
E
Allen Wrench
Turn over page for step by step instructions
1
Qty
Description
**16
M8 x 8mm Allen Set Screws
1
4mm Allen Wrench
A
Advertisement
Table of Contents
Related Manuals for DIVERSIFIED WOODCRAFTS 250508
Summary of Contents for DIVERSIFIED WOODCRAFTS 250508
- Page 1 Equipment Stands ASSEMBLY INSTRUCTIONS EQUIPMENT STANDS 250508 30"W x 25"D x 24"H 250509 30"W x 37"D x 24"H 250510 24"W x 24"D x 20"H PARTS INCLUDED HARDWARE INCLUDED Description Item Item # Item Item # Set Screw **16 M8 x 8mm Allen Set Screws...
- Page 2 1. Confirm all parts/hardware are included 2. Determine the height that you wish the shelf to be placed at and measure that distance up on each leg. If you wish to change the height, the shelf may be adjusted after installation. Once the shelf is in its proper location, tighten in place with set screws and allen wrench that are provided.
