Summary of Contents for Rointe SYGMA STI030SE 2 Series

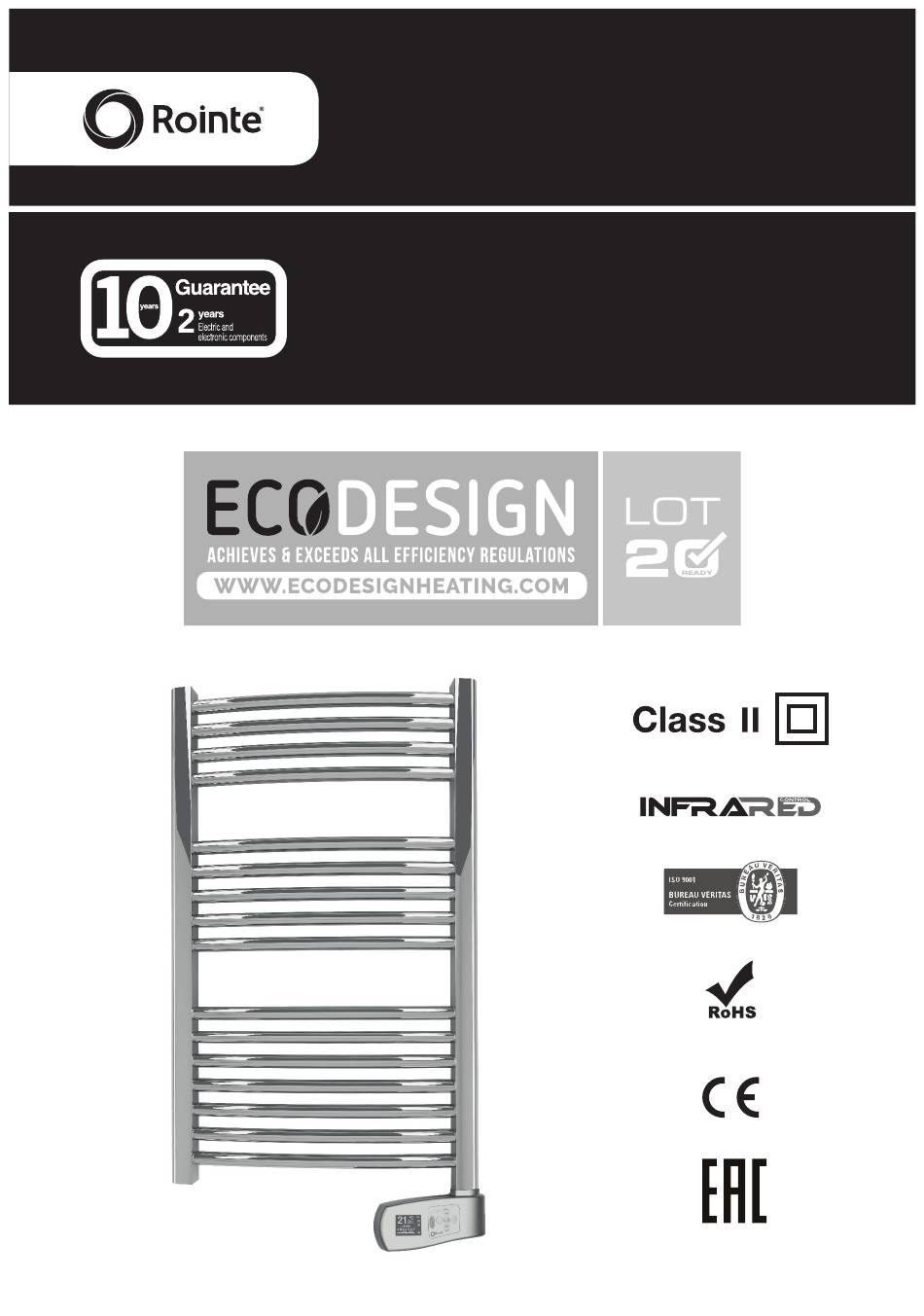

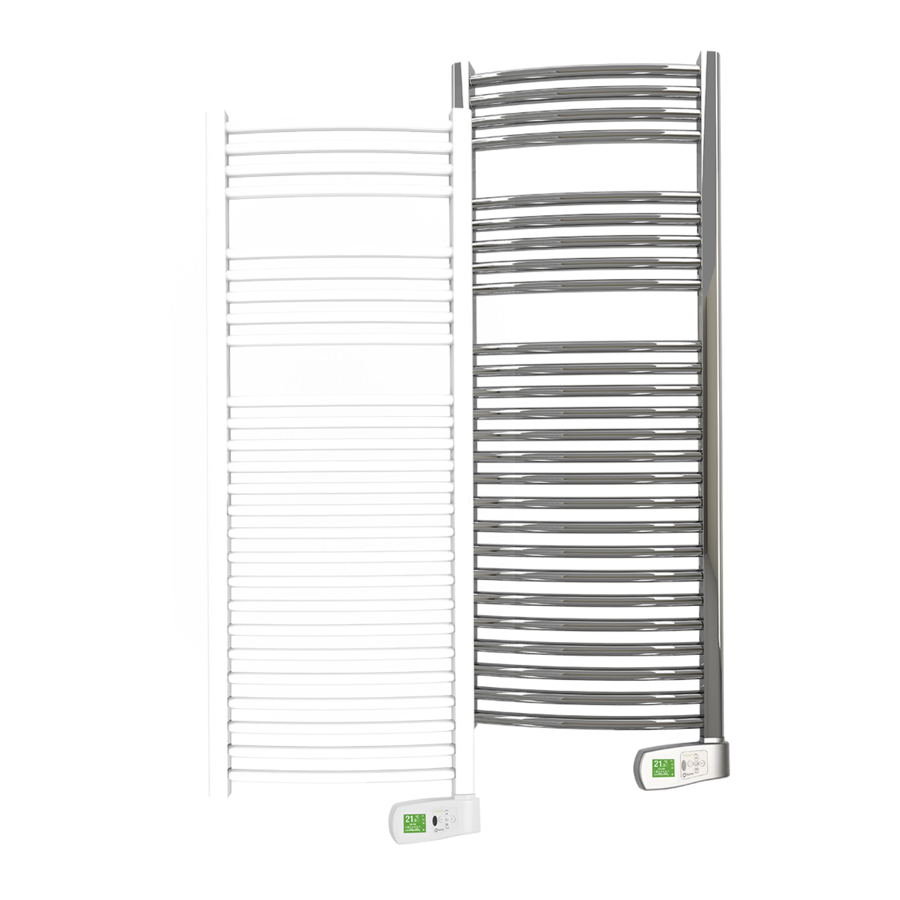

- Page 1 SYGMA INSTRUCTION MANUAL DIGITAL ELECTRONIC TOWEL RAIL Information, operation & installation...
-
Page 2: Table Of Contents
1.9. OPEN WINDOWS function ......................6 2. Installation and mounting ........................6 3. Maintenance and cleaning ......................... 8 4. Installation and safety precautions ....................9 5. Rointe Product Guarantee........................9 6. European Directive..........................11 7. Dimensions & Technical Characteristics ..................12 8. Certificate of Guarantee ..........................13 1. -
Page 3: Control Panel
1.1.2. Display panel DESCRIPTION Programming Days of the week Time of day Temperature selected OPEN WINDOWS function indicator Heating element active indicator MANUAL / AUTOMATIC function indicator COMFORT / ECO / ANTI-FROST mode indicator Control panel locked through keypad 1.1.3. Symbol information SYMBOL DESCRIPTION SYMBOL... -
Page 4: Adjust The Day And Time
SYGMA 1.3. Adjust the day and time To adjust the day and time, please ensure you are in MANUAL function (see section 1.8.) Then press and hold the button on the keypad for 3 seconds. Use the buttons to set the hour, then press to confirm. -
Page 5: Manual/Automatic Functions
1.8. MANUAL/AUTOMATIC functions To change or choose the MANUAL or AUTOMATIC function, press the button on the keypad. You can change from AUTOMATIC to MANUAL and vice versa by pressing the button again. On the display panel, the symbol will appear for the AUTOMATIC function and the symbol for the MANUAL function. -
Page 6: Open Windows Function
SYGMA • STEP 4 - Select the Hours Once step 3 has been completed, 0h appears on the display panel. 0h is equal to the time, midnight. Use the buttons to select the hour you wish to change. Use the button to change the mode (COMFORT, ECO or ANTI-FROST) for the hour you wish to modify for all the days selected in step 3. - Page 7 ELEMENT 10 x 40 mm Rawl Plug Bracket 5.5 x 50 mm Screw 5 x 12 mm Screw Bracket Insert Bracket Head 8 x 26 mm Screw Product 568912473 2.2. Connecting instructions Connection to the mains must be made observing the voltage stated on the product technical data label. This product is designed to be permanently installed connected to fixed facilities.
-
Page 8: Maintenance And Cleaning
SYGMA Figure 2: 2.3. Specific Regulations for bathrooms This product is in compliance with CLASS II safety regulations (double insulation). It can be installed according to Figure 3 (in positions A and B in areas 2 and 3 only) whenever it observes the following regulations: •... -
Page 9: Installation And Safety Precautions
ROINTE. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support. - Page 10 SYGMA 5.1. ROINTE guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees the steel body for a period of 120 months and any electronic and electrical components for 24 months, provided that they have not been modified in any way.
-
Page 11: European Directive
5.3. The Technical Service department of ROINTE will advise you if you need to purchase any parts not covered under the guarantee or out of guarantee. -
Page 12: Dimensions & Technical Characteristics
SYGMA 7. Dimensions & Technical Characteristics MODEL STI030SE*2 STI050SE*2 STI075SE*2 STI100SE*2 DIMENSIONS Width (mm) Height without control panel 1,200 1,600 1,800 (mm) Height with control panel (mm) 1,300 1,700 1,900 Depth (mm) Installed Depth (mm) WEIGHTS & FINISHES Weight (kg) Finish White RAL 9016 / Chrome ELECTRICAL CHARACTERISTICS... - Page 15 NOTES:...
- Page 16 ROINTE UK Catalyst House, 720 Centennial Court, Centennial Park Elstree, Herts, WD6 3SY 0203 321 5928 0208 953 5861 Technical Support 0203 321 5929 E: support@rointe.co.uk www.rointe.co.uk MSSUK17V2...
