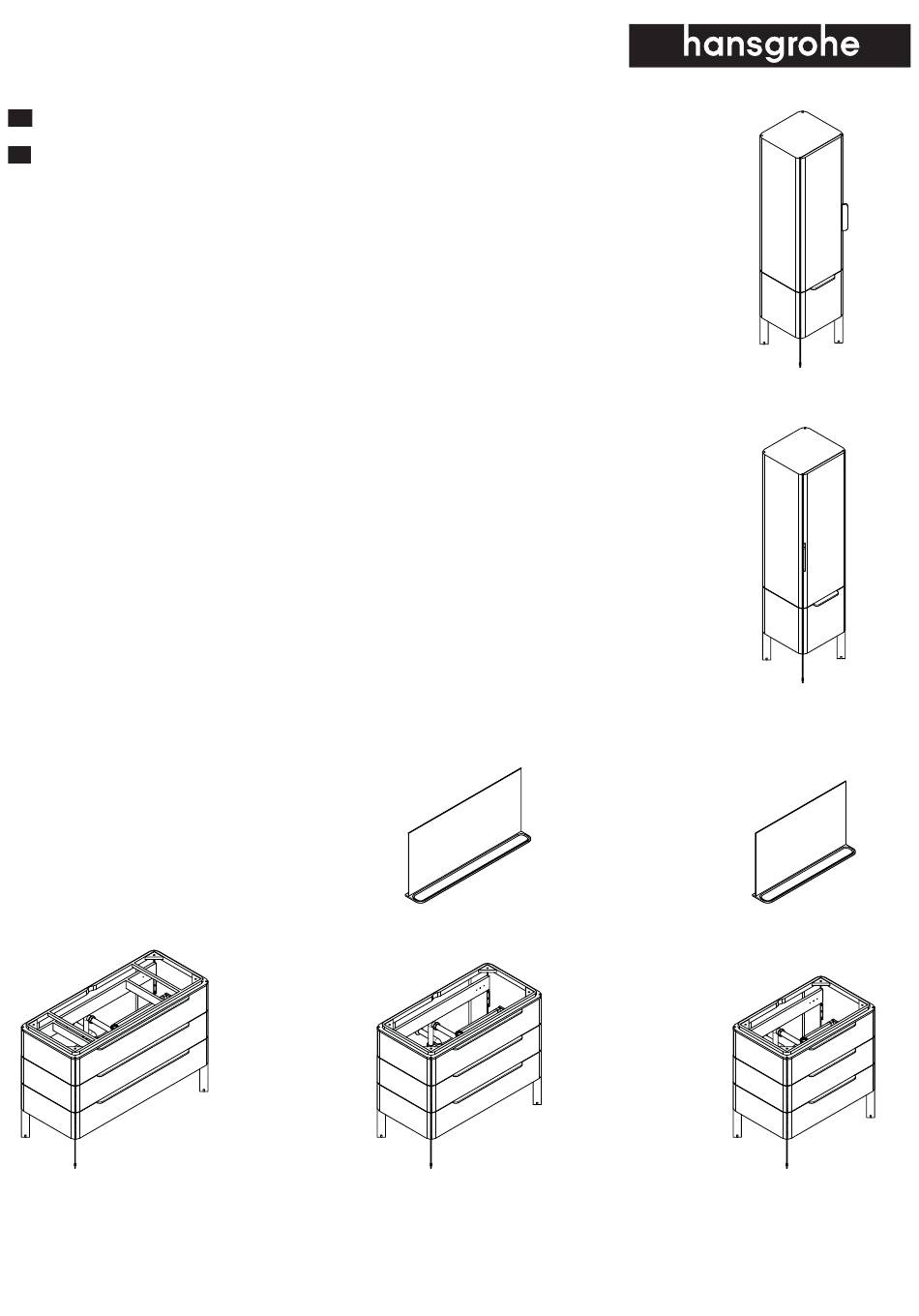

ZH 用户手册 / 组装说明
EN Instructions for use / Assembly instructions
MoonWake 120 x 50 cm
54102467
2
2
MoonWake 100 x 13,5 cm
54106467
MoonWake 100 x 50 cm
54101467
MoonWake 40 x 38 cm
54108467
MoonWake 40 x 38 cm
54107467
MoonWake 80 x 13,5 cm
54105467
MoonWake 80 x 50 cm
54100467

Advertisement

loading
Need help?

Need help?

Do you have a question about the MoonWake 54108467 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hans Grohe MoonWake 54108467

Summary of Contents for Hans Grohe MoonWake 54108467

  • Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / Assembly instructions MoonWake 40 x 38 cm 54108467 MoonWake 40 x 38 cm 54107467 MoonWake 100 x 13,5 cm MoonWake 80 x 13,5 cm 54106467 54105467 MoonWake 120 x 50 cm MoonWake 100 x 50 cm MoonWake 80 x 50 cm 54102467 54101467 54100467...
  • Page 2 中文 安全技巧 符合规定的使用 54105467, 54106467: 该产品能够在 2 类保护区域下安装。 本产品只允许作为洗浴、卫生和洁身之用。 54105467, 54106467: 总电源供应通过一个240V/N/PE/50HZ的交流电 源接口实现。 其它或者超出此范围的使用方式均视为不符合规定。 注意使用说明/ 安装说明以及遵照清洁和维修描述也属于按规定使用范围。 54105467, 54106467 电气安装 电气安装人员  由获得许可的电气专业人员按照 DIN VDE 0100 第701部分 / IEC 60364-7-701 规定，实施安装和检查工作。 电气连接  供电: 220V/N/PE/50Hz 缺陷电流保护装置  必须通过一个故障电流保护装置 (RCD / FI) 进行保险，设计电流差 ≤30 mA。  必须定期检查保护装置的功能。 安装提示 • 安装前必须检查产品是否受到运输损害。 安装后将不认可运输损害或 表面损伤。 • 装配时为避免挤压和切割受伤，必须戴上手套。 • 所有的工作只能在没有电压的状况下进行。 其中通过总开关或电源插 头可靠断开供电。 • 安装时只允许使用符合标准要求的材料。 • 所有组件必须保持可供使用。 • 周围环境温度不得高于 40 ºC 。 • 光源和照明用具工作时发热。光源必须与可燃物距离至少 50 cm。 • 在安装产品的位置，安装人员必须确保安装面的墙面是平的 (没有突出 物或瓷砖没有突起) ，墙体结构适合产品的安装并没有弱点。包装内的 膨胀螺丝只适用于混凝土墙体。对于其他墙体结构必须咨询膨胀螺丝 生产商的建议。 54105467, 54106467 技术参数...

  • Page 3: Installation Instructions

    English • Wipe surface with a soft dry or damp cloth. Safety Notes • Ensure no moisture or fluid into the light. Intended Use • Damage caused by using incorrect cleaners or misuse is not covered by our guarantee. 54105467, 54106467: The product may be installed in protected zone 2. The product may only be used for bathing, hygienic and body cleaning purposes. 54105467, 54106467: The entire power is supplied via a 240V/N/PE/50Hz AC connection. A different or excessive use is considered non-intended. The intended use includes the adherence to the operating instructions and the observance of the inspection and maintenance guidelines. 54105467, 54106467 Electrical installation Electrician  The installation and test work must be performed by an authorized electrician under consideration of DIN VDE 0100 part 701 / IEC 60364-7-701. Electrical connection  Voltage supply: 220V/N/PE/50Hz Residual current protection system  The circuit must be protected via a ground fault protector (RCD / FI) with a measured differential current of ≤ 30 mA.  The proper function of this protective device must be checked at regular intervals. Installation Instructions • Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
  • Page 4 MoonWake 80 x 50 cm 54100467 MoonWake 100 x 50 cm 54101467 MoonWake 120 x 50 cm 54102467 Ø MoonWake 80 x 50 cm MoonWake 80 x 50 cm 54100467 22417007 MoonWake 100 x 50 cm MoonWake 100 x 50 cm 54101467 22419007 MoonWake 120 x 50 cm...
  • Page 5 Ø MoonWake 80 x 13,5 cm 54105467 MoonWake 100 x 13,5 cm 54106467 16 8 LED Driver XX/XX Model: AED30 - 12VLSTB-IP44 Input: 220-240VAC 50/60Hz 38W 0.20A PF≥0.9 Output: 12VDC Max. 2.5A 30W Max: 15V (no load) ta: 40°C tc: 80°C MIRROR DEFOGGER Code: RE-1624 Size: 320*600mm...
  • Page 6 > 4 Ø MoonWake 80 x 50 cm MoonWake 100 x 50 cm 54100467 54101467 8 0 0 5 2 0 10 0 0 5 2 0 10 0 8 0 0 10 0 6 0 0 5 0 0 5 0 0 4 4 0 4 4 0...
  • Page 7 MoonWake 40 x 38 cm MoonWake 40 x 38 cm 54108467 54107467 4 0 0 3 8 0 3 8 0 4 0 0 2 5 8 3 9 2 3 9 2 2 5 8 3 41 3 2 0 3 41 MoonWake 80 x 13,5 cm MoonWake 100 x 13,5 cm...

  • Page 8: Warranty

    English Cleaning Recommendation for Hansgrohe Products Today, modern sanitary and kitchen tapware, showers, accessories, washstands, tubs and radiators consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and reclamations, it is necessary to consider certain criteria when cleaning.
  • Page 9 MoonWake 80 x 13,5 cm 54105467 MoonWake 100 x 13,5 cm 54106467 产品中有害物质的名称及其含量 有害物质 化妆镜（镜柜）主体组件 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 （Pb） （Hg） （Cd） （Cr6+） （PBB） （PBDE） ○ ○ ○ ○ ○ ○ 化妆镜（镜柜）主体组件 ○ ○ ○ ○ ○ ○ LED套管灯带组件...

  • Page 11: Warranty Card

    Warranty Card Customer Model No. Name Purchasing Seller Date Customer Invoice No. Contact No. Distributer Distributer Contact No. Stamp Thank you for purchasing our product! We will provide you with free warranty service: the basin part for 30 years, the cabinet and mirror part for one year. After successful registration on official service platform, warranty service for the cabinet and mirror part will be extended for one more year.
  • Page 12 ON / OFF ON / OFF MoonWake 80 x 13,5 cm 54105467 MoonWake 100 x 13,5 cm > 1s 54106467 100 % - 0 % Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
