REAR PANEL

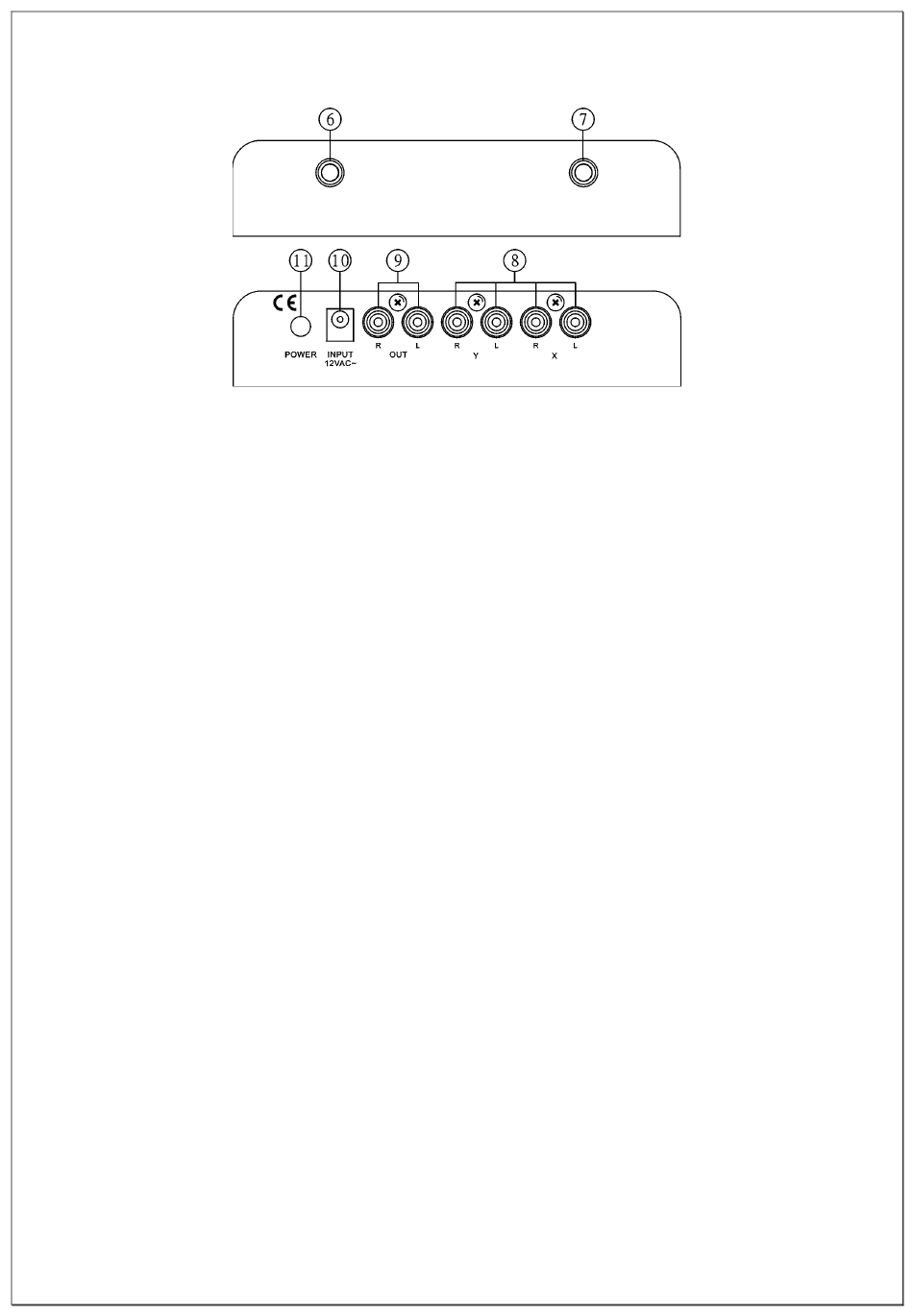

6. DJ Microphone Input:
An unbalanced 1/4" jack socket is mounted on the bottom face of the mixer for
connecting your microphone.
7. PHONES:
This is a 1/4" stereo jack socket mounted on the bottom side of the mixer for you to
attach your headphones.
8. LINE/CD Inputs:
These inputs are unbalanced RCA jacks; connect stereo audio from Hi Fi VCRs,
cassette and reel-to-reel tape decks, CD players, VDPs, Tuners, even synthesizers or
other mixing consoles.
9. MASTER Output:
There stereo outputs are low impedance, unbalanced RCA jacks; the output level is
controlled by the Master fader.
10. AC Supply Socket:
This mixer is supplied with an external AC power supply unit.
11. POWER Switch:
This switches the AC power to the mixer ON or OFF.
Note: Be sure to switch on the power to your mixer before switching on the
amplification system.
