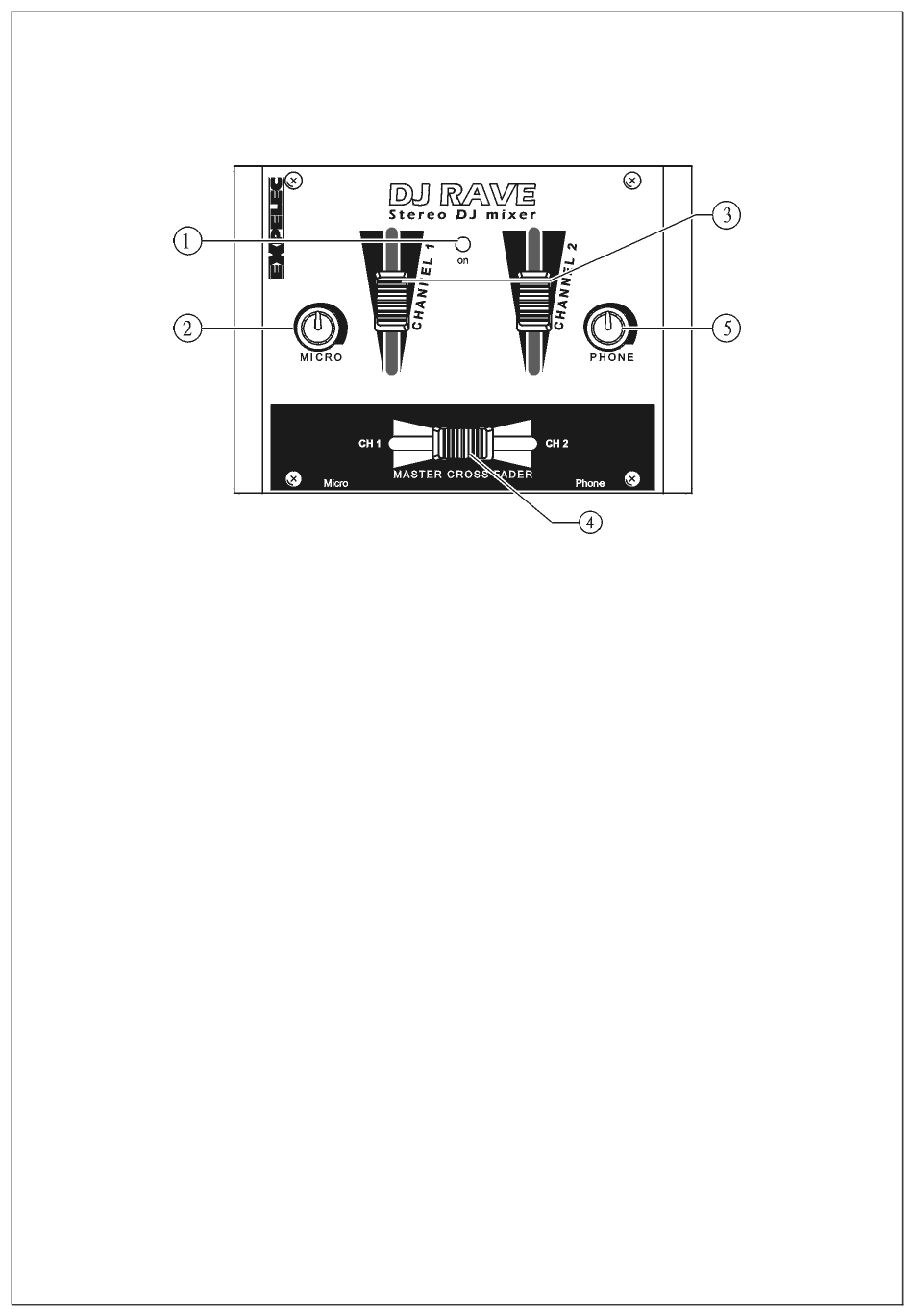

FRONT PANEL

1. POWER ON INDICATOR
The "Power On" LED illuminates when the AC power is applied to the mixer and the
POWER switch is on.
2. MICROPHONE LEVEL CONTROL
Controls the overall level of the DJ Microphone being mixed onto the Master outputs.
3. CHANNEL LEVEL CONTROL
The channel fader adjusts the overall volume of the channel. The faders of the
stereo channels control both left and right signal at same time.
4. CROSSFADER
This dip less horizontal slider provides clean segues between the sources on channel
1 and channel 2. This allows for effortless cross fading between the 1 and 2 side of
the cross fader.
5. PHONES LEVEL CONTROL
This control varies the volume in your
headphones, the volume of the signal heard
through the headphones.
