Jøtul C 620 Installation And Operating Instructions Manual page 10

ENGLISH

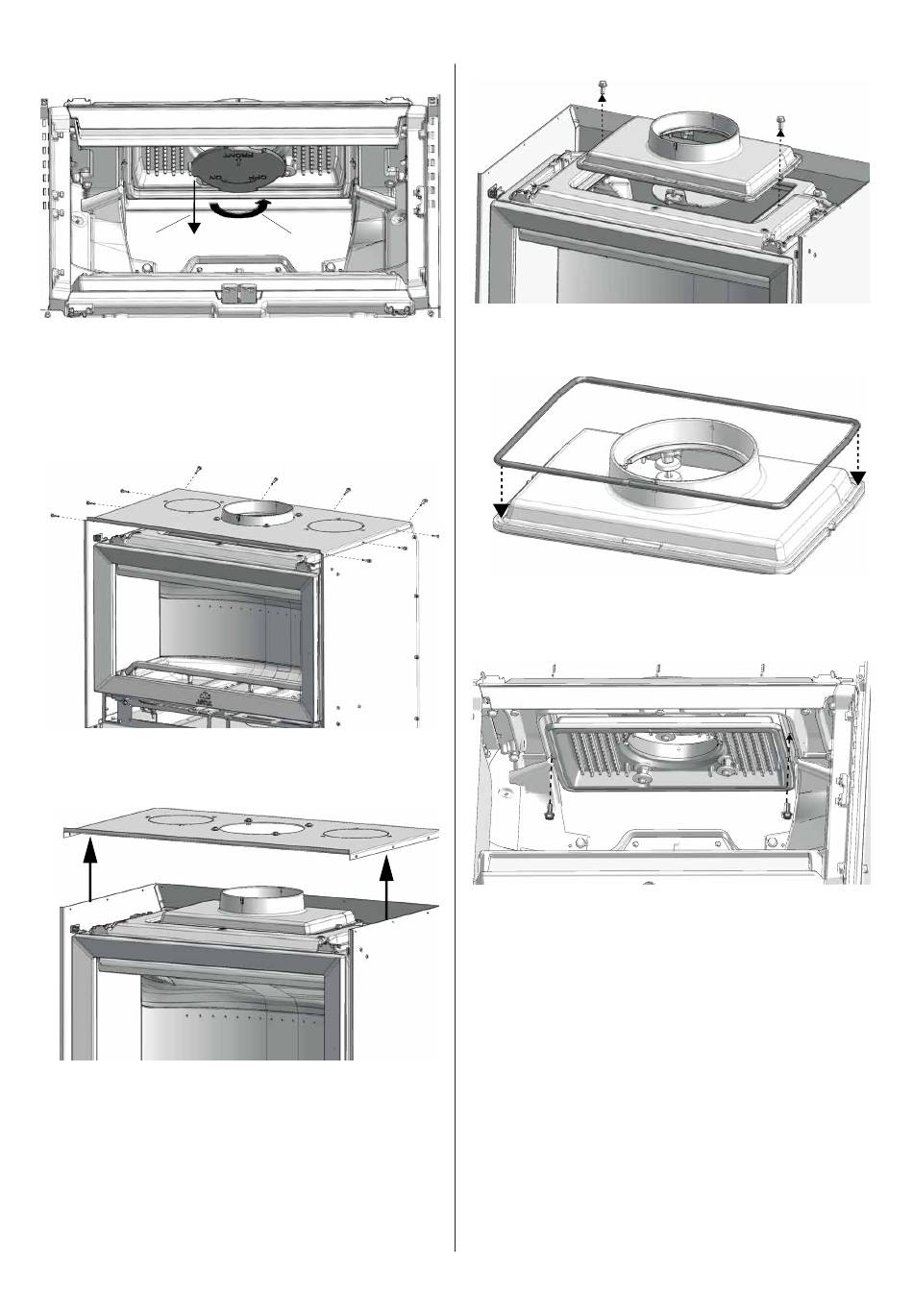

Fig. 6
2
1. Lift and turn the upper exhaust defl ector in the direction of
the arrow to loosen it.
2. Remove the upper exhaust defl ector.
3. When refi tting, follow the same procedure in reverse order.
Fig. 7a
1. Unscrew the screws around the top of the cassette.
Fig. 7b
2. Remove the top
3. When refi tting, follow the same procedure in reverse order.
10
1
Fig. 8
1. Unscrew two screws and remove the smoke outlet
Fig. 9
1. Pull off the protective paper from the supplied gasket, and
put it on the smoke outlet
Fig. 10
1. Place the smoke outlet into the burn chamber, and up
through the opening. Attach with the screws from fi g 8.
