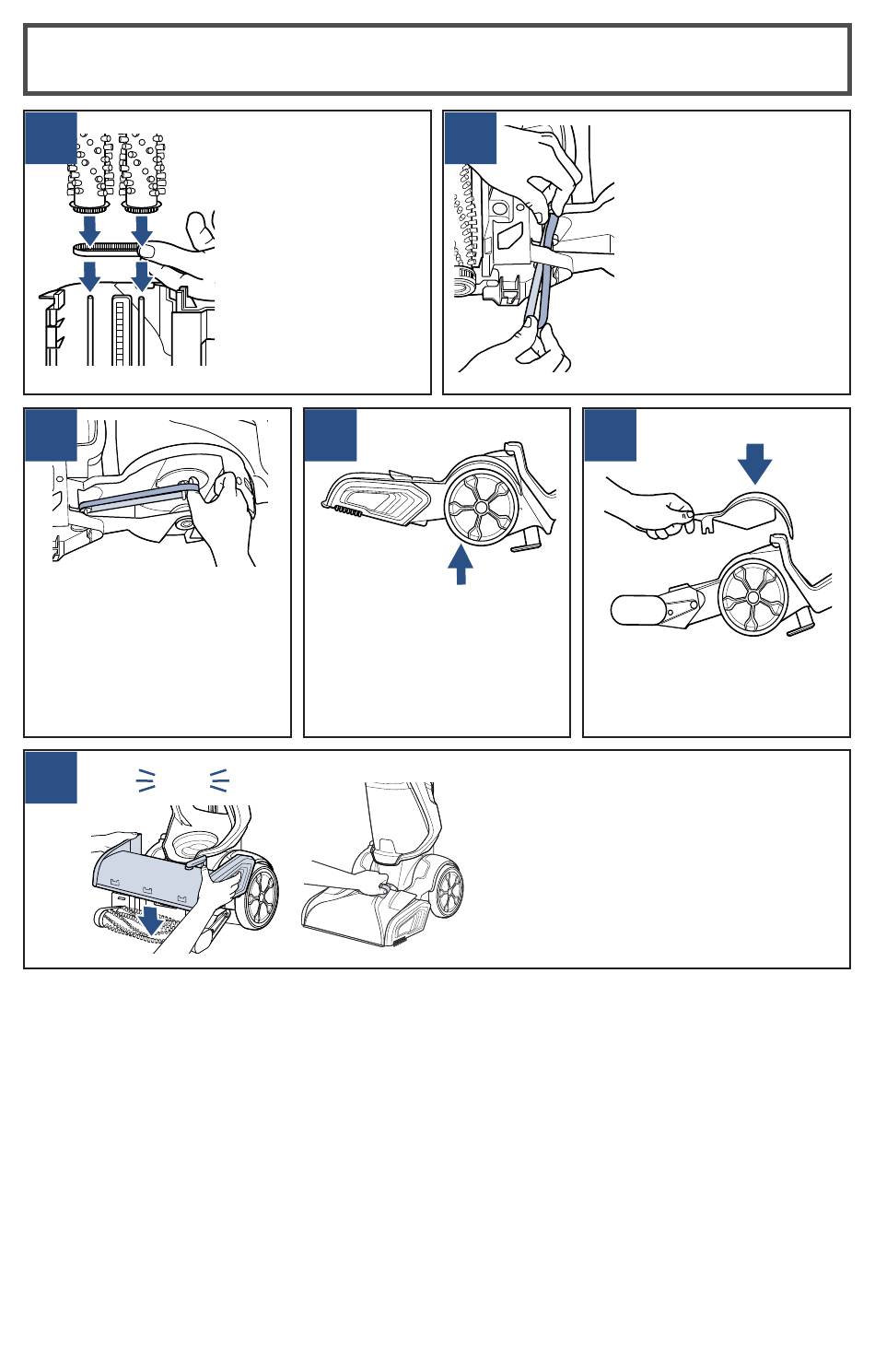

Replacing Belts & Brush Rolls (cont.)
7
9
Keep it wrapped on the
red pulley and adjust the
machine so it is laying on
its back again. Use your
thumb to stretch the flat
belt back to wrap around
the metal axle.
12
click
14
www.BISSELL.com.au
Align Brush Rolls
with belt at other
end. To ensure
alignment, hold the
end of one Brush
Roll and twist. The
other Brush Roll
rotates with it. Check
that washers are in
place. Reassemble
the belt and end cap,
securing with screws
you removed.
10
Resecure the Wheel and
Belt Access Door:
Slide the wheel up back
into the slot and secure
with the screw that was
removed.
8
11
Snap the Belt Access
Door back down into
place.
When finished, return the Brush
Roll cover by pushing it straight
down. You will hear a "click"
from each push button when
the cover is pushed into place.
Line up the nozzle from the edge
near the floor and rotate to snap
back into place.
If the flat belt is
broken, gently
remove it. If it needs
to be replaced, make
sure the gear belt
is removed before
removing the flat belt.
Turn the machine on
its side. Feed the new
flat belt through the
opening so it wraps
around the red pulley.
