Replacing Belts & Brush Rolls
WARNING
disconnect plug from electrical outlet before performing maintenance or troubleshooting.
What you will need: 1 Phillips-head screwdriver & 1 flathead screwdriver

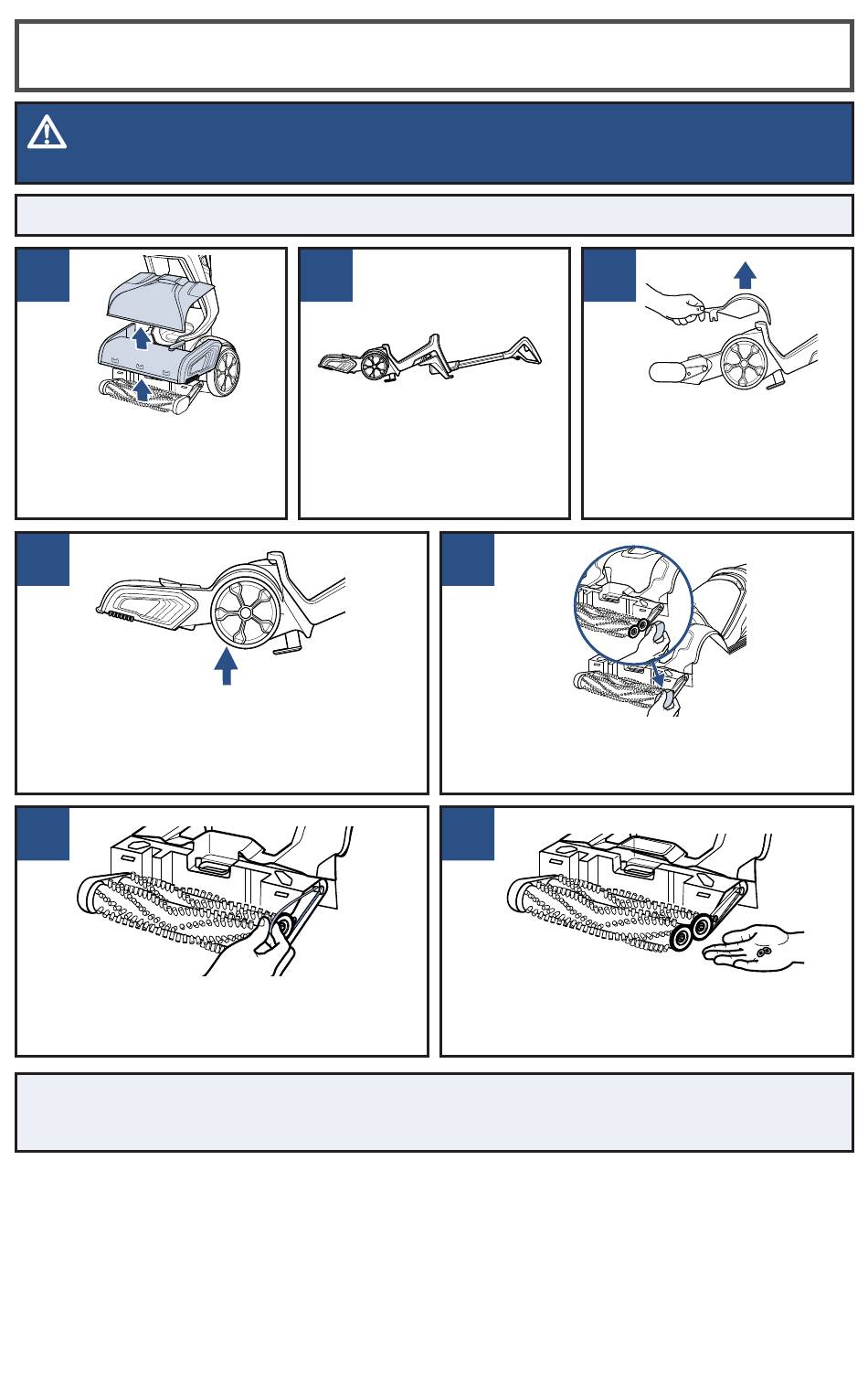

1
Unplug the machine
and remove both tanks.
Remove the nozzle and
Brush Roll cover.
3
Turn the machine on its side and use a
Phillips-head screwdriver to remove the
screw just underneath the wheel. Slide the
wheel down to remove.
5
If the Gear Belt is broken, gently remove it.
If you are replacing your Brush Rolls, gently
remove the belt.
NOTE: To replace Brush Rolls, remove them from the metal posts and replace. Make sure
the metal post goes completely through the end of the Brush Roll. The Brush Roll bristles
should be aligned in a 'V' pattern as pictured.
To reduce the risk of fire, electric shock or injury, turn power OFF and
2
Press the Recline Pedal
and lay the machine on
its back.
3
Press a flathead
screwdriver in the slot
in the back and then the
front of the Belt Access
Door. Lift to remove.
4
Lay the machine down on its back. Use a
Phillips-head screwdriver to remove the
screw on the brush roll end cap.
6
There are washers at the ends of the
Brush Rolls, be careful that these do not
fall off or get lost.
