Read this quick start guide carefully before using the
product. Pictures shown in this document are for
reference only. Different models and specifications
are subject to actual product. Refer to SW-42 User
Manual for more details on installing, configuring,
and operating the SW-42Plus 4 x 2 HDMI 2.0 Switch.
Important Downloads
Download the latest documents from the product
page of the zigencorp.com website. The product page
contains the latest documents to ensure a successful
deployment of SW-42Plus. Important documents
include:
•
SW-42 Quick Start Guide
•
SW-42 User Manual
Overview
The SW-42Plus is an HDMI 2.0 switch with four inputs
and two scalable outputs for mixed resolution
environments. The unit can be configured to connect
any of the four inputs to any of the two outputs. The
device supports video formats up to 4K UHD (up to
1
5

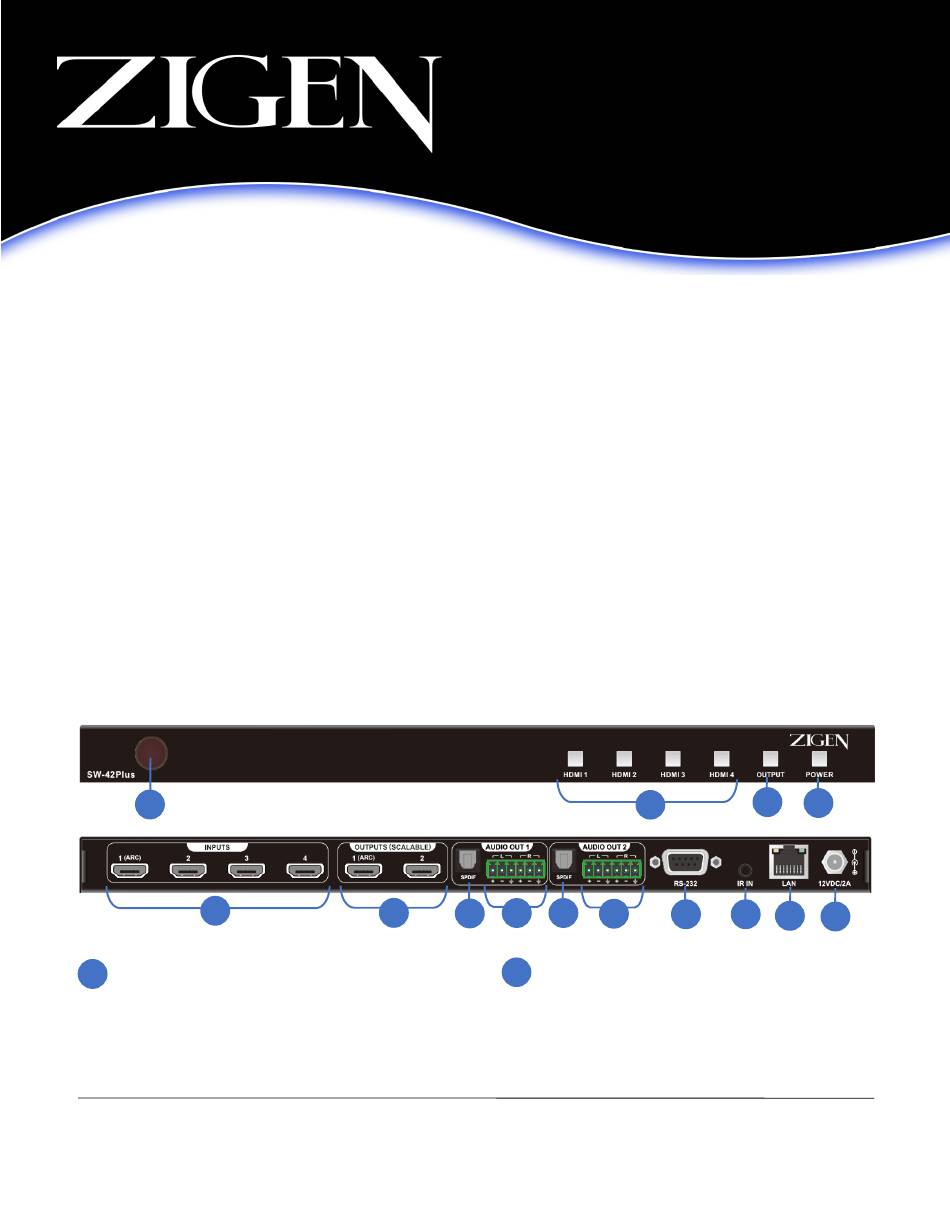

IR Sensor
1
This sensor is used for the IR Remote Control
(included).
When pressing the Remote Control
buttons, aim the Remote Control in this window.
SW-42 Plus Quick Start Guide
QS-002-0002-000-00 | December 18, 2020
SW-42Plus
MKIII (2020)
4 x 2 HDMI 2.0 Switch
Quick Start Guide
2160p60 @ 4:4:4) with support for HDCP 2.2 or 1.4
content protection.
Audio from selected HDMI inputs or Audio Return
Channel (ARC) from Output #1 can be extracted and
sent to the device's audio output interfaces. The ARC
audio can also be embedded to HDMI output #2.
Refer to the SW-42Plus User Manual for more
information.
Packing List
1x SW-42Plus 4 x 2 HDMI 2.0 Switch
1x Universal 100-240 VAC, 12V/2A Power Supply
1x IR Remote Control with CR2025 battery
1x RS-232 Cable (male DB9 to female DB9)
2x Wall Mounting Ears including Hardware
2x Rack Mounting Ears (1/2 Rack Height)
4x Plastic Cushions
1x Quick Start Guide
6
7
8
7
HDMI 1-4 Input Buttons
2
HDMI 1-4 corresponds to HDMI Inputs 1-4. Press one
of these buttons to connect it to the selected output.
Both video and embedded audio will be routed. The
selected button will illuminate blue.
1 of 2
3
2
8
9
10
11
© 2020 Zigen Corporation
www.zigencorp.com
4
12
Advertisement
Related Manuals for Zigen SW-42Plus
Summary of Contents for Zigen SW-42Plus
- Page 1 Refer to SW-42 User content protection. Manual for more details on installing, configuring, and operating the SW-42Plus 4 x 2 HDMI 2.0 Switch. Audio from selected HDMI inputs or Audio Return Channel (ARC) from Output #1 can be extracted and sent to the device’s audio output interfaces.
- Page 2 Parity: None | Flow Control: None Example: Connect HDMI In #4 to HDMI Out #2 a. Press Output until red illumination. Refer to the SW-42Plus User Manual for a complete b. Press HDMI 4, this button will illuminate red. description of the RS-232 control protocol.
