KEF Silverstar 75 Manual

Belt grinding machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
Belt Grinding Machines
SILVERSTAR

Advertisement

Table of Contents
loading

Related Manuals for KEF Silverstar 75

Summary of Contents for KEF Silverstar 75

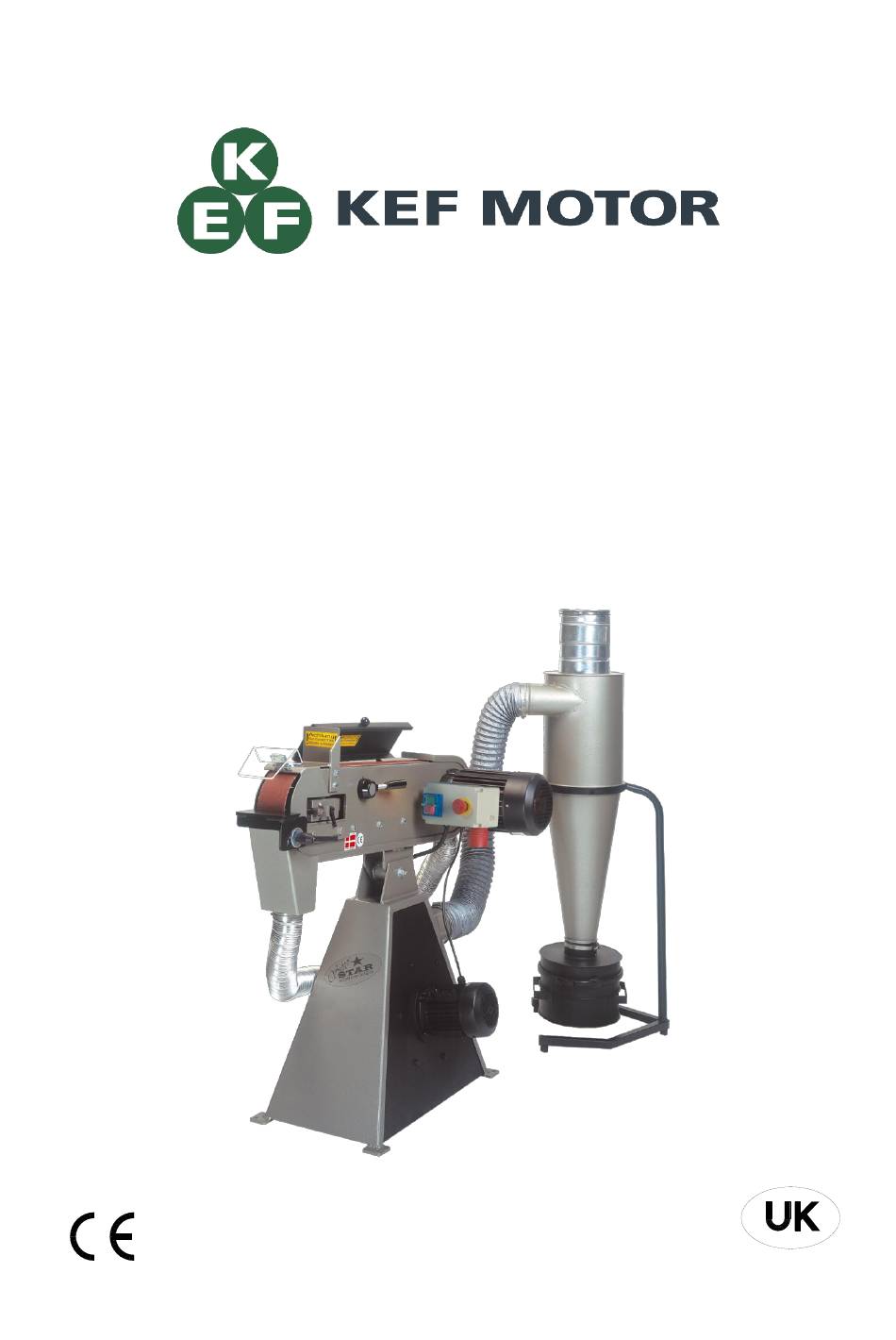

  • Page 1 Manual Belt Grinding Machines SILVERSTAR...
  • Page 2 PLEASE READ THIS MANUAL BEFORE USE...

  • Page 3: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY KEF-MOTOR A/S Industrivej 3-9 DK-9460 Brovst, Danmark www.scantool-group.dk Tlf: +45 98 23 62 66 Fax.: +45 98 23 61 44 hereby declare that Silverstar Belt Grinding Machines are manufactured in accordance with the provisions of the...

  • Page 4: Table Of Contents

    Table of Contents EC DECLARATION OF CONFORMITY 1.0 TRANSPORT & HANDLING 1.1 T RANSPORT 1.2 H ANDLING 1.3 P LACING 2.0 DIRECTIONS 2.1 O PERATION 2.2 S ECURITY 2.3 M AINTENANCE 3.0 SPARE PARTS LIST 3.3 D RAWING FOR RINDING ACHINE WITH XHAUST YSTEM...

  • Page 5: Transport & Handling

    1.0 Transport & Handling 1.1 Transport The Silverstar belt grinding machine is packed in protective wrapping and delivered on a pallet with the following measures: 120 x 80 x 120 cm 1.2 Handling The machine can easily be transported on the pallet on which it is delivered. 1.3 Placing Mounting of the belt grinder must take place on a firm and level ground.

  • Page 6: Directions

    2.0 Directions 2.1 Operation After adjustment and connection, the belt grinding machine is ready for use. The grinding can take place by the contact wheel (E) or on the surface grinding table by opening the cover (H). The lifetime of a new belt is prolonged if the grinding starts with a light pressure.

  • Page 7: Maintenance

    Keep children and visitors away. All children and visitors should be kept a safe distance from work area. E. Maintenance Disconnect machine from power source when making repairs. Check damaged parts. To read every details of trouble shooting, repair it very crefully and make sure the operator won´t get injurt and damage the machine.
  • Page 8 Fig.: 2.2 To change the contact wheel remove the grinding belt, tool rest and spark arrester. Use a 6 mm mandel to hammer out the pin (L). Now the contact wheel with axle and bearings can be taken out. One of the lock rings (M) and the axle (N) can be taken out. The new contact wheel (O) is fitted in in reverse order.

  • Page 9: Spare Parts List

    3.0 Spare Parts List 3.3 Drawing for Belt Grinding Machine with Exhaust System...

  • Page 10: Spare Parts List For Belt Grinding Machine With Exhaust System

    3.4 Spare parts List for Belt Grinding Fig.: 3.2 Machine with Exhaust System When ordering spare parts please state machine type and serial number together with item number and description of the part according to this list. Item No. Description Belt release handle 0102267 Belt guard...
  • Page 11 Lock nut M8 0231347 Contact for DISA switch 0110049 Sheet metal screw 0110050 2.9x6.5 Screw CH M5x10 0120628 Blind stopper Ø20 0105153 Box for DISA switch 0105152 Cable disc PG 11 0105154 Split pin Ø4x50 mm 3454351 Disc 10x45x4 0860327 Disc 10mm 0101491 Disc 10mm...

  • Page 12: Cylon With Stand

    3.3 Cylon with stand. 3.4 Spare Parts List for Cylon with stand. When ordering spare parts please state machine type and serial number together with item number and description of the part according to this list. Pos. Nr. Benævnelse 75X-2000 Exhaust System 700681300 Cylon w/...

  • Page 13: Technical Data

    Technical Data 4.1 Technical Specifications Model Grinding belt 75x2000 Motor 3x380-440 V 50 Hz 4,1 HK Class IEC 34-1 IP Class r/min. 2800 10.6/6.1 Cos  0,91 Belt speed 30 m/s Contact wheel Ø200x75 Fan motor 0,5 HK Weight 111 kg The noise level for Silverstar belt grinding machine has been measured to 85 dB(A) according to the measuring instruction in the note 561 from the Work Inspection Department on device of technical aids.
  • Page 14 4.3 Wiring diagram Belt grinding machines can be connected to 3 x 400/440 V, 50/60 cycles and to Below please find a wiring diagram informing how to connect the machine to the wiring supply. 3x400/440 Volt, 50/60 cycles with exhaust system...

  • Page 15: Warranty

    5.0 Warranty 5.1 Guarantee If within 2 year of purchase this machine supplied by KEF A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: The product is returned complete to one of our Service Branches or Official Service Agents.
