Summary of Contents for Fieldmann FDUK 70305 - 0

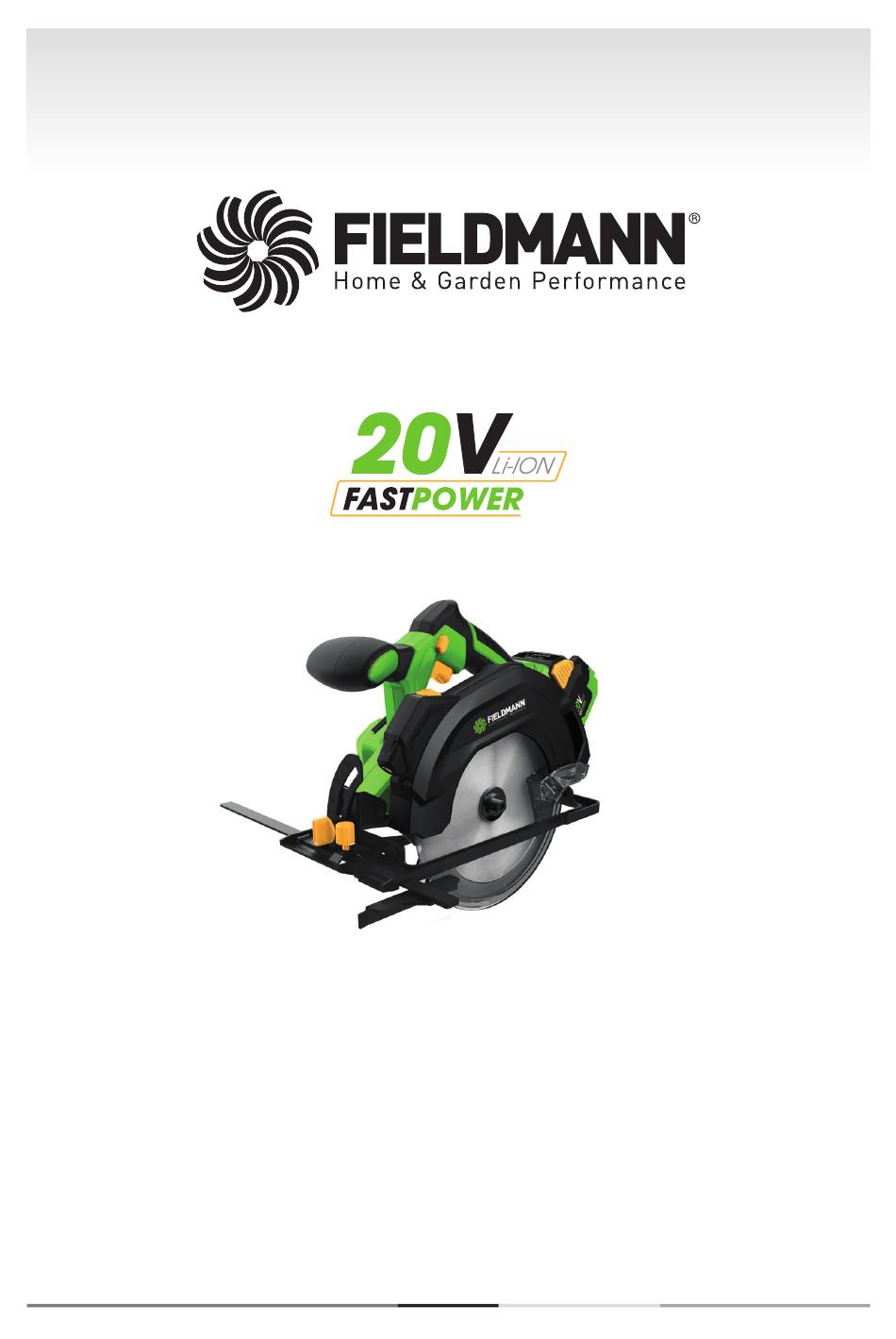

- Page 1 FDUK 70305 - 0...
- Page 2 English ....................................7–24 Čeština .....................................25–42 Slovenčina ..................................43–60 Magyarul ..................................61–78 Polski ....................................79–96 FDUK 70305 - 0...

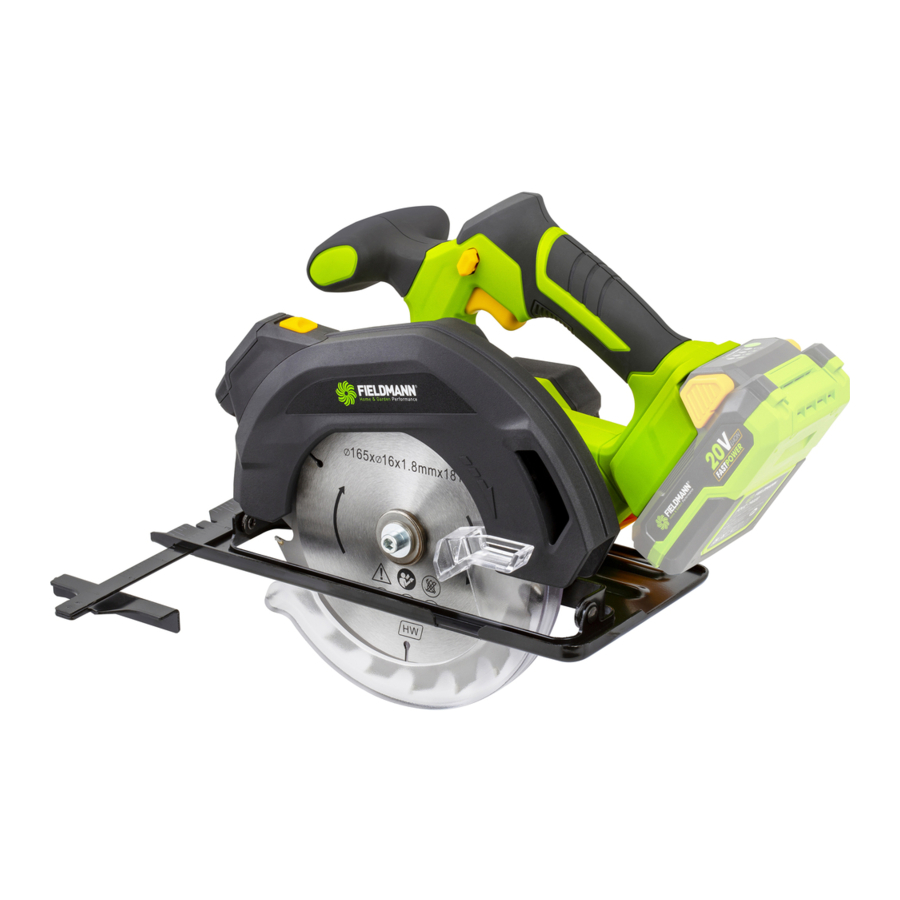

- Page 3 Cordless circular saw CORDLESS CIRCULAR SAW USER’S MANUAL...
- Page 4 FDUK 70305 - 0...
- Page 5 CORDLESS CIRCULAR SAW USER’S MANUAL...
- Page 6 FDUK 70305 - 0...
-
Page 7: Table Of Contents
Table of contents Cordless Circular Saw USER’S MANUAL Thank you for purchasing this Cordless Circular Saw FIELDMANN. Before you start using it, please carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. SAFETY INSTRUCTIONS ............................... 8 2. -
Page 8: Safety Instructions
Do not use the product for any other purpose. Use of the product for operations different from intended could result in a hazardous situation. FDUK 70305 - 0... -
Page 9: Symbols
Symbols 2. SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Use eyes protective equipment Use ears protective equipment AC laser: danger of injury – do not stare into beam CORDLESS CIRCULAR SAW USER’S MANUAL... -
Page 10: Machine Description And Items Delivered
Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included. Circular saw Parallel edge guide 1 pc of circular saw blade Warranty card Instruction Manual Should the components be missing or damaged, contact the dealer of the machine. FDUK 70305 - 0... -
Page 11: General Safety Instructions
General safety instructions 4. GENERAL SAFETY INSTRUCTIONS Please read these safety instructions carefully, remember them and keep them in a safe place WARNING! When using electric machinery and power tools, it is important to abide by and adhere to the following safety instructions for reasons of protection against injury caused by electric current, injury of persons and risk of starting fi... - Page 12 Regularly check the setting of moving parts and their movability. Check if the protective cover or other parts that can limit the safe functioning of the power tool are not damaged. If the FDUK 70305 - 0...
-
Page 13: Specific Safety Instructions
Specifi c safety instructions tool is damaged, ensure its proper repair before the next use. Many injuries are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained and sharpened tools make work easier, limit the risk of injury and work with them is much more easily controlled. -
Page 14: Hearing Protection
Make sure the latches on each side of the battery pack snap in place and that battery pack is secured in the product before beginning operation. Depress the latches to remove the battery pack. For complete charging instructions, see the operator’s manuals for your battery pack and charger. FDUK 70305 - 0... - Page 15 Operation WARNING! Battery tools are always in operating condition. There- fore, switch should always be locked when not in use or carrying at your side. KICKBACK See Figures 4 - 7, page 4. Kickback occurs when the blade stalls rapidly and the saw is driven back towards you. Blade stalling is caused by any action which pinches the blade in the wood.
- Page 16 For more depth of cut accuracy, a scale is located on the upper blade guard. Loosen the depth lock lever by lifting it upward away from the base. Determine the desired depth of cut. Locate the depth of cut scale on the back of the upper blade guard. FDUK 70305 - 0...
- Page 17 Operation Hold the base fl at against the workpiece and raise or lower the saw until the indicator mark on bracket aligns with the notch on the blade guard. Tighten the depth lock lever securely by pushing it down- ward toward the base. DANGER! OPERATING THE SAW See Figures 11 - 13, page 5.
- Page 18 Cutting in the reverse direction could cause the saw to climb up on the workpiece and back toward you. Release the trigger and allow the blade to come to a complete stop. Lift the saw from the workpiece. Clear corners out with a hand saw or sabre saw. FDUK 70305 - 0...
-
Page 19: Assembly
Assembly WARNING! Never tie the lower blade guard in a raised position. Leaving the blade exposed could lead to serious injury. 8. ASSEMBLY UNPACKING This product requires assembly Carefully remove the product and any accessories from the box. All items listed in the Includes section must be included at the time of purchase. -
Page 20: Adjustments
CHECKING 0° BEVEL STOP Remove battery pack. Place the saw in an upside down position on a workbench. Check the squareness of the saw blade plate to the base of the saw using a carpenter’s square. FDUK 70305 - 0... -
Page 21: Machine Care
Machine care 10. MACHINE CARE Overload Never use excessive force when cutting. Too much pressure reduces the speed of the machine, and the required power is greatly reduced. This may result in overload which can damage the motor of the machine. When the machine becomes too hot, allow it to run for two minutes at no load and then interrupt working for a short time. -
Page 22: Technical Data
6. The battery heats up while charging: This is normal and is the result of chemical reactions taking place inside the battery during the charging process. 7. The charging unit will heat up while charging: This is normal and is caused by the reduction of voltage from 230V to 20V. FDUK 70305 - 0... -
Page 23: Disposal
Disposal 14. DISPOSAL The machine, rechargeable batteries, accessories and packaging should be sorted for environmental friendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. - Page 24 FDUK 70305 - 0...
