Your safety, and the safety of others, is very important. To help you make informed decisions about safety, we have provided
installation and operating instructions and other information on labels and in this guide. This information alerts you to potential
hazards that could hurt you or others. It is not possible to warn you about all potential hazards associated with this product, you must
use your own good judgment.
CARELESS INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY OR EQUIPMENT DAMAGE.
READ AND UNDERSTAND ALL SAFETY PRECAUTIONS AND OPERATING INSTRUCTIONS BEFORE INSTALLING
AND OPERATING THIS PRODUCT.
This guide identifies potential hazards and has important safety messages that help you and others avoid personal injury or death.
WARNING and CAUTION are signal words that identify the level of hazard. These signal words mean:
WARNING signals a hazard that could cause serious injury or death, if you do not follow recommendations.
CAUTION signals a hazard that may cause minor to moderate injury, if you do not follow recommendations.
This guide uses NOTICE to call attention to important mechanical information, and Note: to emphasize general information worthy of
special attention.
SEVERE INJURY OR DEATH MAY RESULT IF YOU IGNORE ANY OF THE
FOLLOWING.
• Read the Plow Operator's Manual, the Winch Operator's Manual, and all warning
labels before operating.
• Operate ATV at a walking speed with the blade installed. Do Not exceed 5mph
(8 km/h) even with the blade up.
• Plow Cautiously, impact with a hidden or stationary object may cause the ATV to
stop suddenly or go out of control.
• Do Not operate the ATV on slopes greater than 10° with the plow installed.
• Do Not stand or ride on the plow.
• Stay clear of moving parts and joints. Keep others away when operating or
adjusting plow.
• Inspect the plow mechanism, fasteners, cable, and adjustments before operating.
Replace all worn or damaged parts before operating.
• Lower the plow to the down position before leaving the ATV unattended.
WARN INDUSTRIES
INSTALLATION INSTRUCTIONS
ATV SNOW PLOW

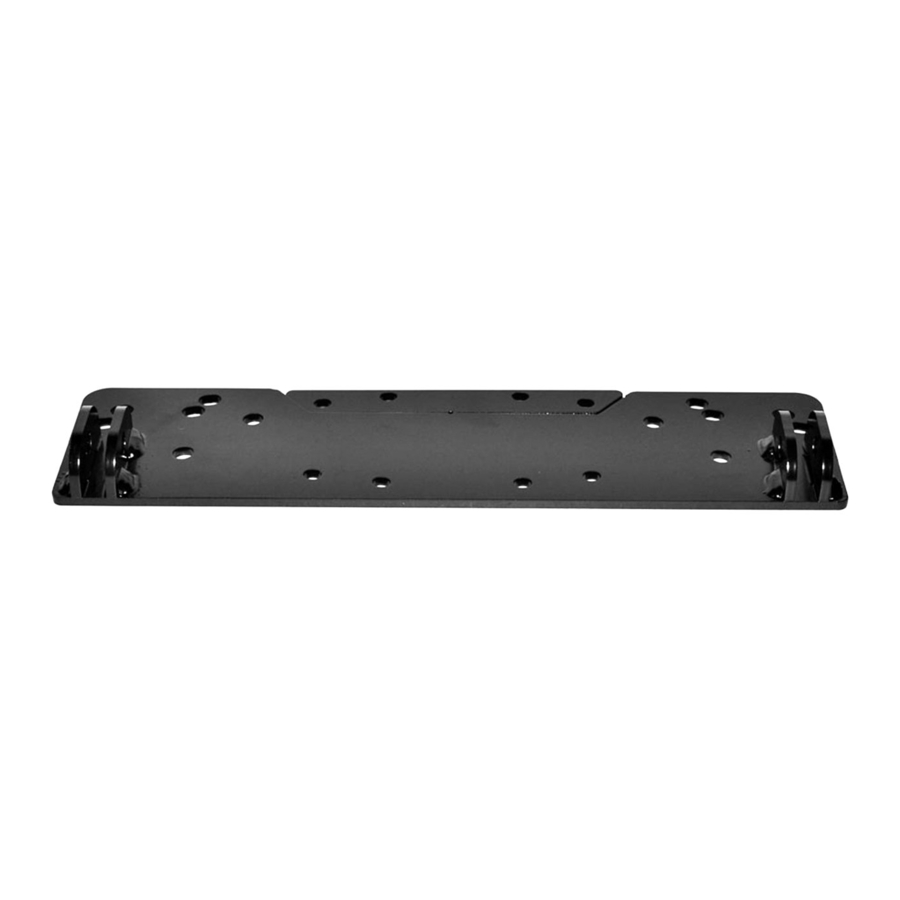

Mounting Kit: PN 37851
Application: HONDA 400
WARNING
TOOLS REQUIRED:
Ratchet
Sockets: 7/16, 1/2, 9/16"
Wrenches: 7/16, 1/2, 9/16"
Phillips Screwdriver (optional)
PAGE 1
39527 Rev A1
Advertisement
Table of Contents
Related Manuals for Warn 37851
Summary of Contents for Warn 37851
- Page 1 This information alerts you to potential hazards that could hurt you or others. It is not possible to warn you about all potential hazards associated with this product, you must use your own good judgment.
- Page 2 REMOVE THE “BREAK-OFF” PORTION FROM THE MOUTING BRACKET. IF THIS IS NOT DONE, DAMAGE TO BIKE CAN OCCUR IF THIS PIECE BECOMES TWISTED AND THEN GETS SNAGS OR CAUGHT ON SOMETHING ON THE GROUND AS THE BIKE IS TRAVELING. WARN INDUSTRIES PAGE 2 39527 Rev A1...
- Page 3 Install the 5/16” Nylock nuts onto the U-bolts and torque to approximately 15ft.-lb (20 N-m). The bracket should fit to the frame as shown in Figure #4. USE THESE HOLES FOR THE HONDA MODEL 400 FIGURE #3: FRAME MOUNTING HOLE LOCATIONS WARN INDUSTRIES PAGE 3 39527 Rev A1...
- Page 4 Frame Mounting Bracket should be loosened and the plow adjustments made to make it straight. Then retighten and torque the nuts on the Frame Mounting Bracket to approximately 15ft.-lb (20 N-m). WARN INDUSTRIES PAGE 4 39527 Rev A1...
- Page 5 ATV prior to raising it. If the J-bolt breaks, replace it with the spare hardware found in this kit. Read the Plow Operators Guide for more information. THE INSTALLATION SHOULD NOW BE COMPLETE. READ THE OPERATOR’S MANUAL PRIOR TO USE OF THIS PRODUCT. WARN INDUSTRIES PAGE 5 39527 Rev A1...
