Your safety, and the safety of others, is very important. To help you make informed decisions about safety, we have provided installation
and operating instructions and other information on labels and in this guide. This information alerts you to potential hazards that could
hurt you or others. It is not possible to warn you about all potential hazards associated with this product, you must use your own good
judgment.
CARELESS INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY OR EQUIPMENT DAMAGE. READ
AND UNDERSTAND ALL SAFETY PRECAUTIONS AND OPERATING INSTRUCTIONS BEFORE INSTALLING AND
OPERATING THIS PRODUCT.
This guide identifies potential hazards and has important safety messages that help you and others avoid personal injury or death.
WARNING and CAUTION are signal words that identify the level of hazard. These signal words mean:
WARNING signals a hazard that could cause serious injury or death, if you do not follow recommendations.
CAUTION signals a hazard that may cause minor to moderate injury, if you do not follow recommendations.
This guide uses NOTICE to call attention to important mechanical information, and Note: to emphasize general information worthy of
special attention.
SEVERE INJURY OR DEATH MAY RESULT IF YOU IGNORE ANY OF THE FOLLOWING.
• Always read the Plow Operator's Manual, the Winch Operator's Manual, and all warning labels
before operating or using your ATV plow.
• Always operate ATV at a walking speed with the blade installed. Do Not exceed 5mph (8 km/h)
even with the blade up.
• Always plow CAUTIOUSLY, impact with a hidden or stationary object may cause the ATV to
stop suddenly or go out of control.
• Never operate the ATV on slopes greater than 10° with the plow installed.
• Never stand or ride on the plow.
• Always stay clear of moving parts and joints. Keep others away when operating or adjusting
plow.
• Always inspect the plow mechanism, fasteners, cable, and adjustments before operating. Replace
all worn or damaged parts before operating.
• Always lower the plow to the down position before leaving the ATV unattended.
WARN INDUSTRIES
INSTALLATION INSTRUCTIONS
ATV SNOW PLOW

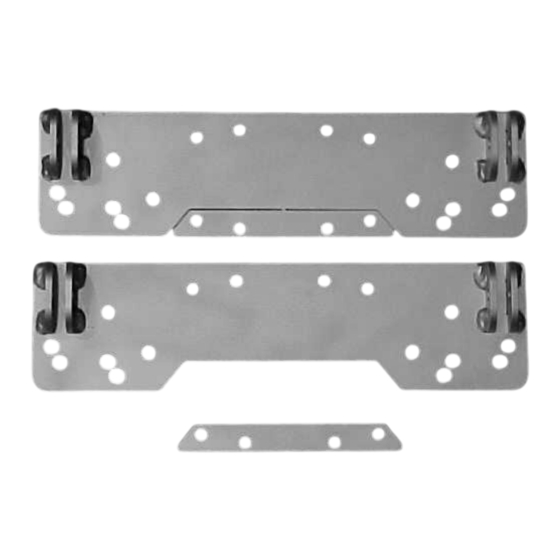

Mounting Kit: PN 37850
Application: HONDA 300
WARNING
TOOLS REQUIRED:
Ratchet
Sockets: 7/16, 1/2, 9/16"
Wrenches: 7/16, 1/2, 9/16"
Phillips Screwdriver (optional)
PAGE 1
39525 Rev B1
Advertisement
Table of Contents
Related Manuals for Warn ATVS-37850
Summary of Contents for Warn ATVS-37850
- Page 1 This information alerts you to potential hazards that could hurt you or others. It is not possible to warn you about all potential hazards associated with this product, you must use your own good judgment.
- Page 2 Frame Mounting Bracket to the frame. This is because this bracket is use on other Honda bikes that use the other holes. Use only the holes as shown in Figure #3 for this Honda model 300. WARN INDUSTRIES PAGE 2 39525 Rev B1...
- Page 3 Bracket is parallel and straight with the frame. Then, torque Nylock nuts to approximately 15ft.-lb (20 N- m). The bracket should fit to the frame as shown in Figure #4. USE THESE HOLES FOR THE HONDA MODEL 300 FIGURE #3: FRAME MOUNTING HOLE LOCATIONS WARN INDUSTRIES PAGE 3 39525 Rev B1...
- Page 4 WORKING WITH OR AROUND A WINCH AS SEVERE INJURY OR DEATH MAY OCCUR. A roller fairlead must be used for lifting and lowering the plow. Cable damage will occur if a roller fairlead is not used. WARN INDUSTRIES PAGE 4 39525 Rev B1...
- Page 5 ATV prior to raising it. If the J-bolt breaks, replace it with the spare hardware found in this kit. Read the Plow Operators Guide for more information. THE INSTALLATION SHOULD NOW BE COMPLETE. READ THE OPERATOR’S MANUAL PRIOR TO USE OF THIS PRODUCT. WARN INDUSTRIES PAGE 5 39525 Rev B1...
