INSTALLATION INSTRUCTIONS

Part No. Quantity
38636 1
34007 4
25342 2
11524 10
The fasteners for attaching the fairlead and winch to the mounting plate are packaged
with the winch. Refer to the winch installation instructions for the fastener torque spec.
1. For ease of installation, assemble the mounting plate, winch and fairlead before
installing the mounting plate onto the vehicle. Note: the square nuts fit into the
pockets in the mounting feet of the winch.
2. Remove the plastic shroud located just forward of the vehicle grille. If the vehicle
has factory fog lights mounted on the bumper, relocate the lights outboard.
3. Remove the two Torx head bumper bolts on each side. Some vehicles may have the
factory optional tow hooks mounted here. Remove the forward bolt of each stabilizer
bar bracket.
4. Place three or four flat washers on each stabilizer bar bracket to act as spacers
(see figure 1). Failure to use the washers as spacers, will result in the winch
rubbing on the grille once the fasteners are tightened down.
WARN
Winch Mounting Kit 38671 for
Jeep Wrangler TJ

Parts List

Description

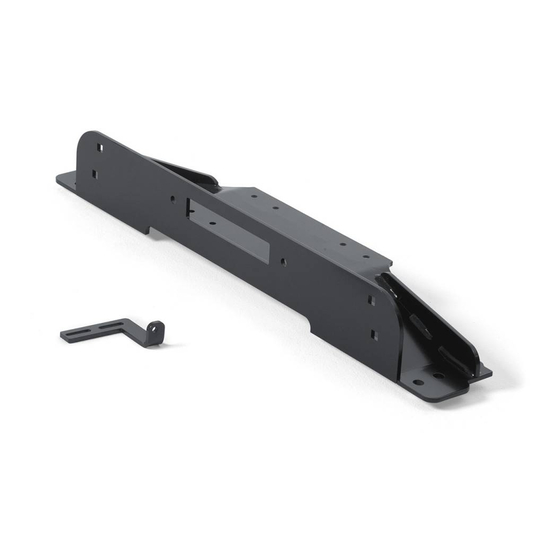

Winch Mounting Plate
1/2-13 x 1-1/2 Torx Bolt
M10 x 1.50 x 35mm Bolt
3/8 Flat Washer
Page 1
Torque
75 lb-ft (102 N-m)
32 lb-ft (43 N-m)
38670 Rev A0
