Item #: 38435830
Monaco Book/Display Case
Congratulations on your latest Atlantic purchase. Follow these instructions, and you'll have this
new product assembled in no time. If you need any help or to order replacement / missing parts,
please call 1-800-747-2660 or email customer_relations@atlantic-inc.com.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlantic Monaco 38435830
Summary of Contents for Atlantic Monaco 38435830

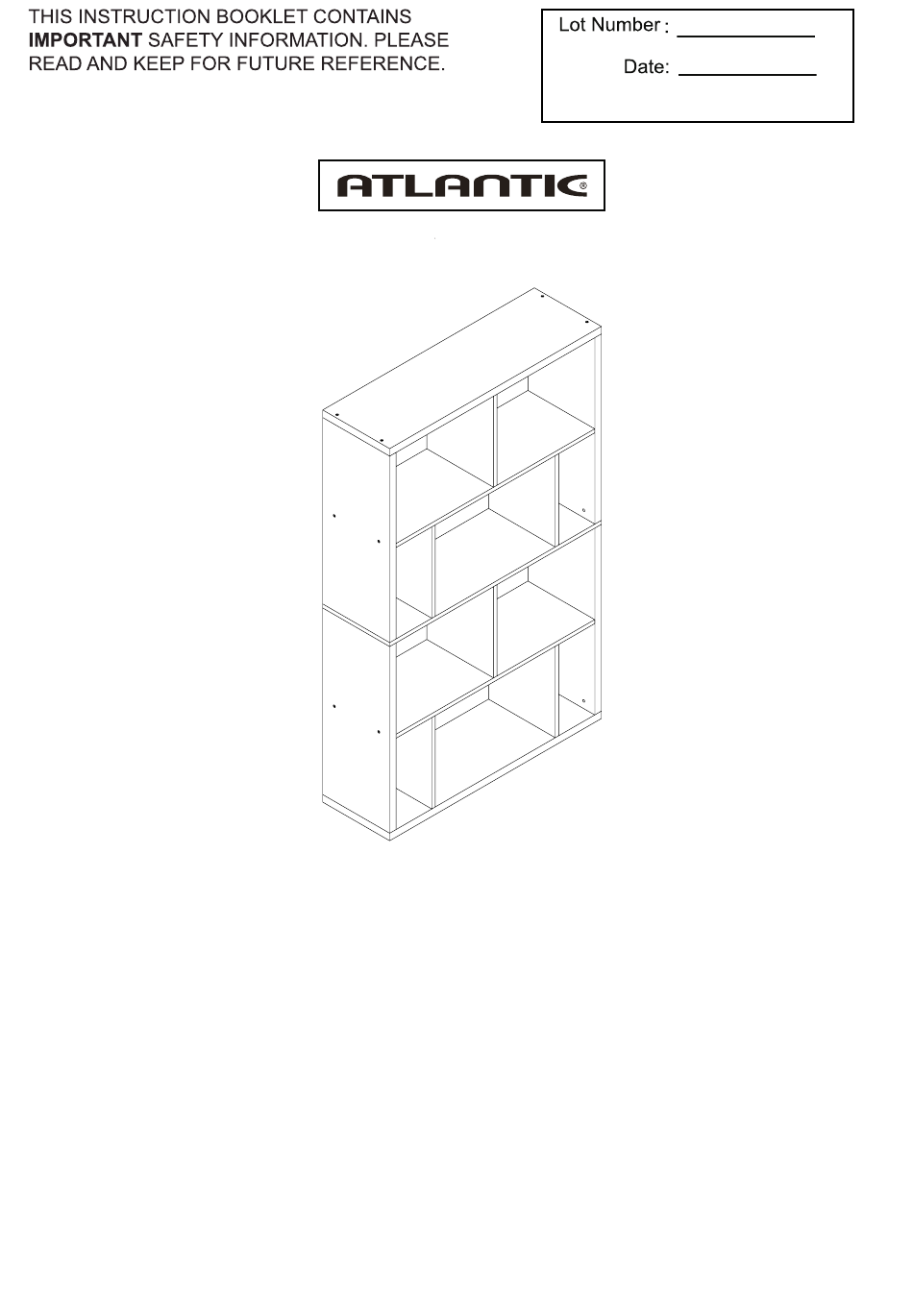

- Page 1 Item #: 38435830 Monaco Book/Display Case Congratulations on your latest Atlantic purchase. Follow these instructions, and you’ll have this new product assembled in no time. If you need any help or to order replacement / missing parts, please call 1-800-747-2660 or email customer_relations@atlantic-inc.com.
- Page 2 Parts List Item Components Components Item y t ’ y t ’ Philips screwdriver needed (not included)
- Page 3 Bulid 2 sets Attach wood panel (C) and wood shelf (D) with wood dowels (J) and fasten them with screws (K). Bulid 2 sets Insert wood dowels (J) and fasten cam screws (M) into wood shelf (D). Insert cam locks (N) into wood panels (C). Attach panels (C) to shelf (D). Turn cam locks (N) clockwise to tighten.
- Page 4 Figure 1 Top Section Insert cam locks (N) into wood panel (C). Insert wood dowels (J) and fasten cam screws (M) into wood shelf (A). Attach shelf (A) to panels (B1 and C). Turn cam locks (N) clockwise to tighten. Insert dowels (J) in panels (B1 and C). Attach shelf (E) to panels (B1 and C) with screws (K).
- Page 5 Top Section Figure 1 Bottom Section Figure 2 Insert dowels (J) and fasten cam screws (M) into wood shelf (E). Insert cam locks (N) into panels (B2 and C). Attach bottom section to top section. Turn cam locks (N) clockwise to tighten.
- Page 6 Product Warranty Atlantic Inc. warrants to the original purchaser that its products are free from defects in materials or workmanship. If after inspection, we find that the product was defective in materials or workmanship, we shall repair or replace the product at our discretion. This warranty does not cover accidental damage, misuse, improper care or alteration and excludes claims for incidental or consequential loss.
