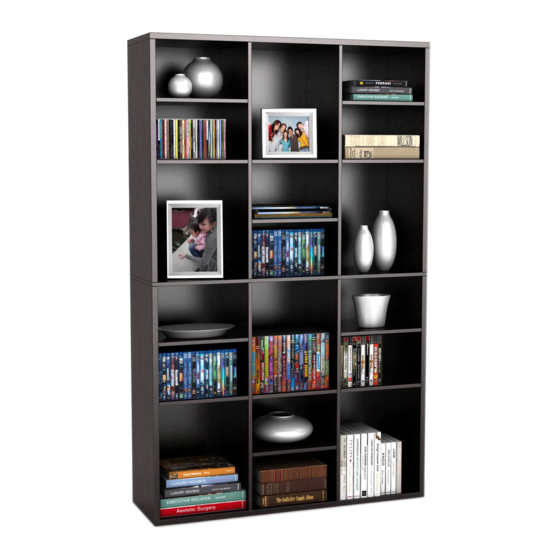

Versa 18 Wall Unit
Congratulations on your latest Atlantic purchase. Follow these instructions, and you'll have this
new product assembled in no time. If you need any help or to order replacement / missing parts,
please call 1-800-747-2660 or email customer_relations@atlantic-inc.com.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Versa 18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantic Versa 18

Summary of Contents for Atlantic Versa 18

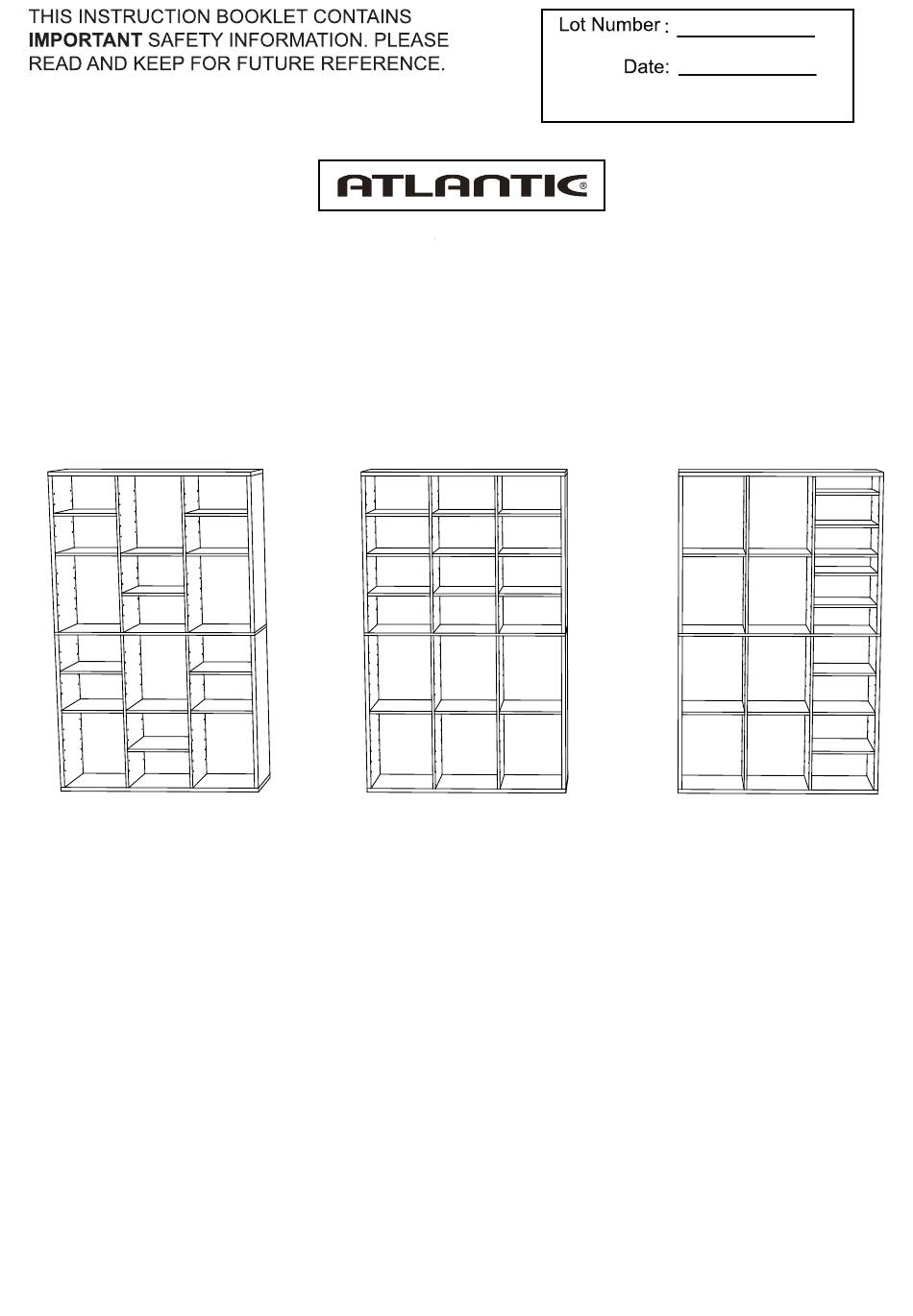

  • Page 1 Item #: 38435833 Versa 18 Wall Unit Congratulations on your latest Atlantic purchase. Follow these instructions, and you’ll have this new product assembled in no time. If you need any help or to order replacement / missing parts, please call 1-800-747-2660 or email customer_relations@atlantic-inc.com.
  • Page 3 Philips screwdriver needed (not included)

  • Page 4: Top Section

    Bulid 2 sets Insert shelf(F) into vertical panels(G). Bulid 2 sets Insert wood dowels(Z) cam screws(M) into side panels(D&E), insert cam locks(L) into shelf(F). Attach side panels(D&E) to shelf(F), then turn cam locks(L) clockwise to tighten. Top Section Insert wood dowels (Z) into side panel(D&E) and vertical panels(G). Attach middle shelf (B) to side panels(D&E) and vertical panels(G), then fasten them with screws (W).

  • Page 5: Bottom Section

    Figure 1 Top Section Insert cam screws(P) and wood dowels(Z) into top panel(A), insert cam locks(N) into panels (D,E&G),Attach top panel(A) to panels(D,E&G), then turn cam locks(N) clockwise to tighten. See Figure 1. Figure 2 Bottom Section Insert wood dowels (Z) into panels (D,E&G). Attach bottom panel(C) to panels(D,E&G) and fasten them with screws (W).
  • Page 6 Option 3 Product Warranty Atlantic Inc. warrants to the original purchaser that its products are free from defects in materials or workmanship. If after inspection, we find that the product was defective in materials or workmanship, we shall repair or replace the product at our discretion. This warranty does not cover accidental damage, misuse, improper care or alteration and excludes claims for incidental or consequential loss.

  • Page 7: Mounting Instructions

    Brevets en cours pour les États-Unis et autres pays / U.S. und andere ausländische Patente sind hängig All rights reserved / Derechos Reservados / Tous droits réservés Made in China / Hecho en China / Fabriqué en Chine www.atlantic-inc.com R1.0 121130 #38435833...
