Robern SS476 MP Instructions Manual

General Notes
1. Unpack the cabinet. Check the box thoroughly
for all hardware and loose parts as follows:
A. Cabinet
B. Hardware Bag
C. Shelving
D. "Z' Bracket
E. Swing Out Magnifying Mirror
(or mail in card for SOMM)
2. Remove the doors from the cabinet and store the
doors in the cabinet box. Be sure edges of the doors
are protected. Removing the doors allow for easy and
fast installation of the cabinet system.
3. A square and plumb installation insures proper door
operation. A square and level are necessary for
proper installation.
4. Improper installation voids the warranty. Installed
cabinets cannot be returned.
5. If you experience any problems with your cabinet,
contact your dealer or Robern directly.
Robern• 701 N. Wilson Ave • Bristol, PA 19007
Limited Warranty One Year Term on page 8
A • Arch
F • Flat
Cabfax #0476
SS476 MP CABINET INSTRUCTIONS
MODEL NUMBER DESIGNATIONS
PLEASE NOTE: The MP-L3.5 light fixture requires special consideration concerning overall
dimensions and brackets. Refer to instructions supplied with the fixture.

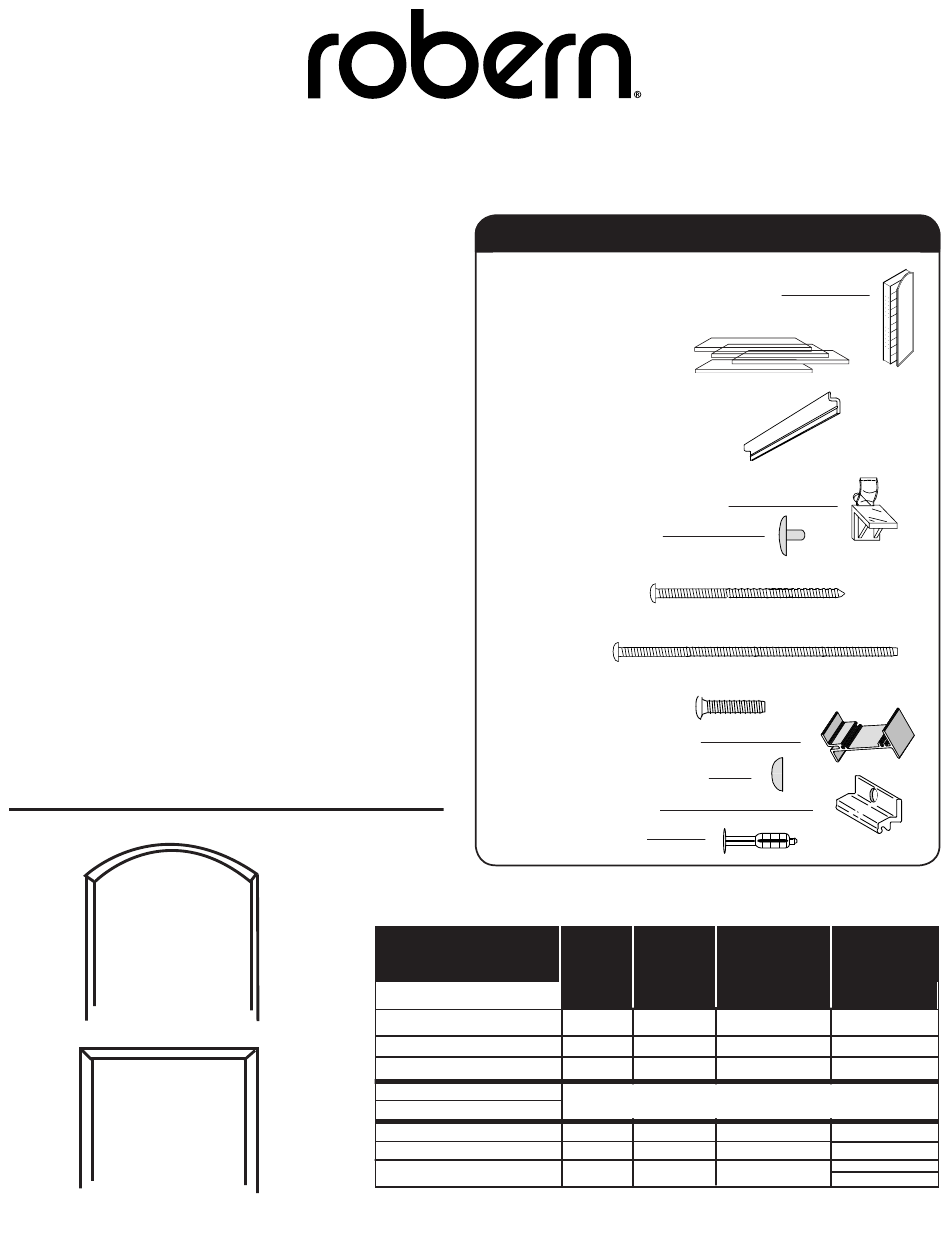

Part List – MP Cabinet
1. MP Cabinet
Refer to model number designations below
to determine if cabinet was ordered.
2. Glass Shelves
– 4 Shelves are provided
with each cabinet
– 3 Shelves are provided
with each "E" option cabinet
3. "Z" Mounting Brackets
– Bracket used for surface
mounted cabinets.
4. Hardware Bag • Contains the Following
A. 12 Clear Snap-In Shelf Clips
B. 46 Shelf Hole Plugs
C. 6 SMS/WOOD Screws #10 X 2"
D. 5 SMS/Wood Screws #10 X 3"
E. 8 Connector Block Screws #10 X 1/2"
F. 2 MP65 Connector Blocks
G. 15 Black Screw Head Caps
H. 3 Top Mount "Z' Clip
I. 6 Plastic Anchors
Product
Type
CABINETS 4"D 6"D 8"D
MP16 (D4) D6 D8
MP20 (D4) D6 D8
MP24 (D4) D6 D8
LIGHTS
MP-L1.5 or MP-L3.5
SIDEKIT
MPSK40
1
Mirror Mirror Hand
Shape Edge
A • Arch B • Bevel N • L or R Hand
F • Flat P • Plain L • Left Hand
R • Right Hand
See note below for MP-L3.5
B • Bevel
P • Plain
Robern
701 N. Wilson Ave.
Bristol, PA 19007
800.877.2376
Options
E • Electric
D8 - 8" Deep
D6 - 6" Deep
D8SR - 8" Semi Rec 4"
D6SR - 6" Semi Rec 4"
SS476 MP Cabinet
