Robern SCULPT Installation Instructions Manual

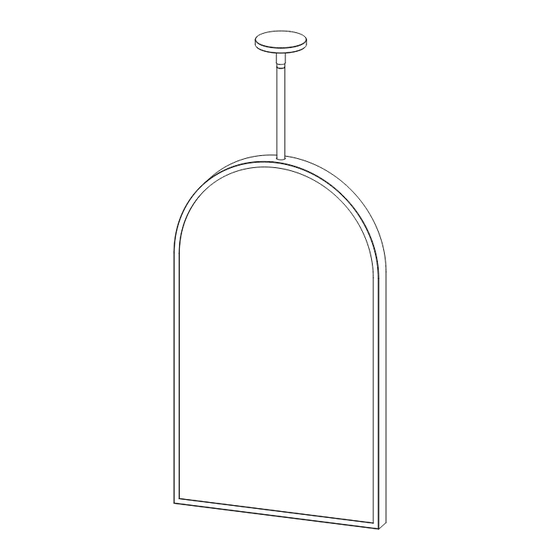

Hanging mirror

Hide thumbs

Quick Links

Download this manual

CONTENTS

Notes - 2

Tools Needed - 3

Parts - 3

Layout Dimensions - 4

Arch Height - 6

Pill Height - 7

Ceiling Mount - 8

Mirror Assembly - 12

Mounting the Mirror - 14

Final Assembly - 16

Use and Maintenance - 17

Warranty - 18

GENERAL INFORMATION

This instruction manual contains information on how to install the Sculpt Hanging Mirror. This series comes in several designs. Please

refer to hte box or product label for the specific model number.

Save these instructions for future use and reference. An improper installation voids the warranty. Carefully inspect the mirror for

doamage. Installed products cannot be returned.

If you experience any problems with your cabinet, contact your dealer or Robern directly.

Limited Warranty - One Year Term

800.877.2376

www.robern.com

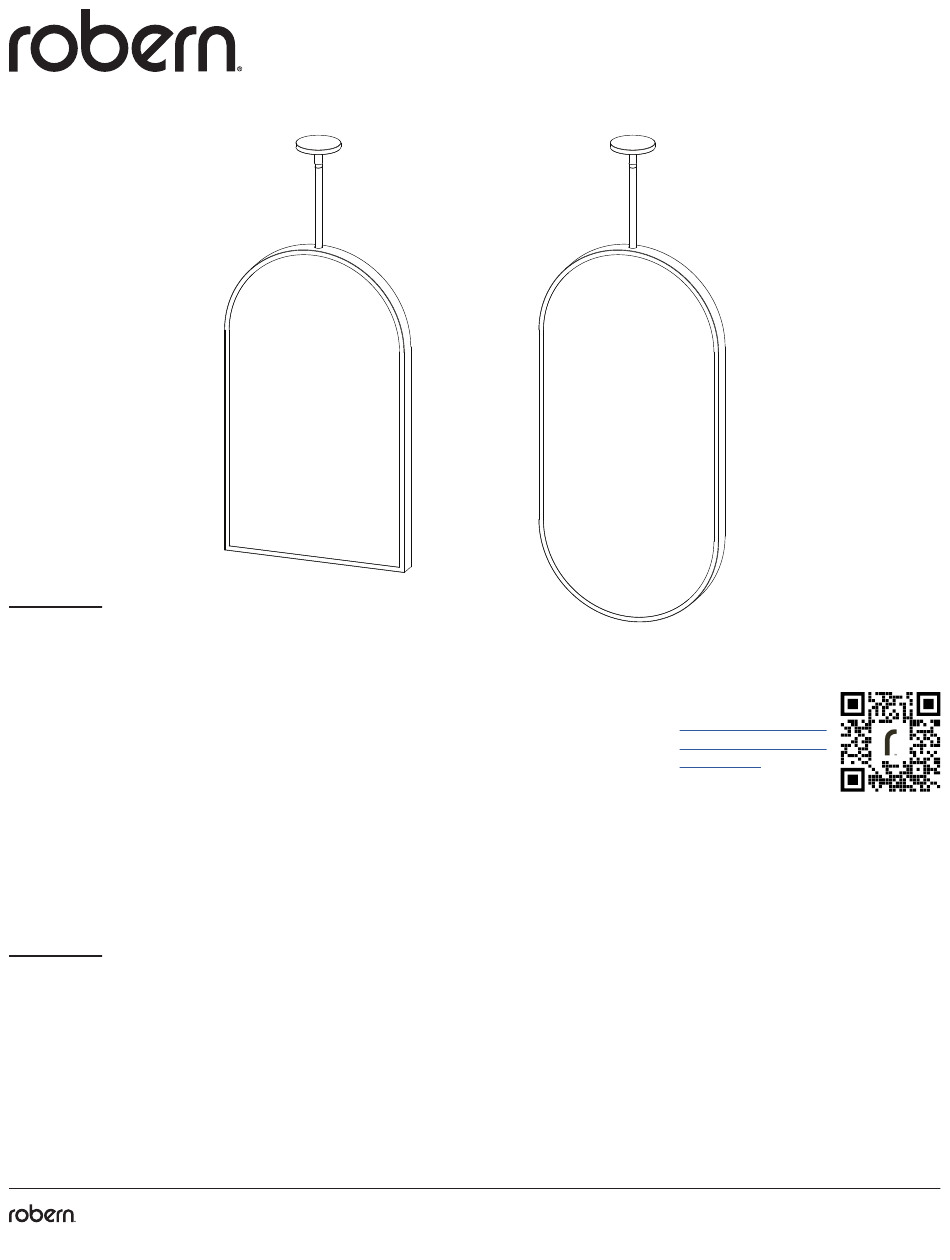

SCULPT HANGING MIRROR

INSTALLATION INSTRUCTIONS

Important safety instructions - Save these instructions

Scan the QR code to

see the Sculpt series

of products.

Use the camera app on your mobile

device to look at this and other QR

codes. This will allow you to quickly

access web pages and other relevant

documents.

Part no. CB-209-1455 01/25/2024

Sculpt Hanging Mirror Installation

Chapters

Need help?

Do you have a question about the SCULPT and is the answer not in the manual?

Questions and answers

Summary of Contents for Robern SCULPT

Page 1: Table Of Contents
Warranty - 18 GENERAL INFORMATION This instruction manual contains information on how to install the Sculpt Hanging Mirror. This series comes in several designs. Please refer to hte box or product label for the specific model number. Save these instructions for future use and reference. An improper installation voids the warranty. Carefully inspect the mirror for doamage.
Page 2: Notes
NOTE: It is recommended that this product be installed using a 4" round ceiling box rated for a minimum of 50 lbs (23 kg). SAVE THESE INSTRUCTIONS © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 3: Tools Needed
[220-1265-XX] (1) 24" Down Rod Extension (1) Escutcheon Depending on the installation required, not all parts will be used. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 4: Layout Dimensions
Recommended 2” (51mm) Fixtures and Mirror Minimum Between Fixtures and Mirror Recommended Recommended Height Height 45” 42-1/2” (1143mm) (1079.5mm) © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 5 Lofted Joist: Minimum Distance to Wall 2-1/2” (63.5mm) Minimum Distance to Wall 2-1/2” (63.5mm) 1-9/16” 1-1/8” (40mm) (29mm) © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 6: Arch Height
79-1/8" (2009mm) 10' Ceiling + 12" & 24" Extension Rods 80-1/8" (2034mm) 91-1/8" (2314mm) 11' Ceiling Total Height © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 7: Pill Height
85-1/2" (2171mm) 10' Ceiling + 12" & 24" Extension Rods 86-1/2" (2196mm) 97-1/2" (2476mm) 11' Ceiling Total Height © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 8: Ceiling Mount
Adapter's position. NOTE: For reference, the following steps show the Ceiling Adapter in a vertical, flat ceiling orientation. 0° 45° © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 9 3. Pass the Ceiling Adapter through the Adapter Slip [220-1266-XX], Crossbar Plate, Lockwasher [203-1679], and Hex Nut [203-1678]. Tighten the Hex Nut using an 11/16" wrench. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 10 4B. Attach the Ceiling Mount assembly to the joist using #8 x 1-1/2" wood screws (not provided) and the two flat washers [203-1198] provided. 3” (76mm) Distance from 1” 1/2” Wall Surface (25mm) (13mm) © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 11 6. Thread the two Sleeve Nuts [203-1681-XX] provided onto the screws coming through the Escutcheon. Using a flat head screwdriver, turn the Sleeve Nuts until the Escutcheon is tight to the ceiling. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 12: Mirror Assembly
NOTE: The back panel is heavy. Attaching a couple of pieces of masking tape can lift the panel enough to ease removal. 2. Insert the Adjustable Down Rod [220-1261-XX] through the opening in the top of the mirror and internal bracket. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 13 NOTE: Do NOT insert the screw through the bracket hole yet. This will lock Down Rod in position and prevent further assembly. 4. As needed, attach the Down Rod Extension(s) using the provided Down Rod Connectors [219-1747]. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 14: Mounting The Mirror
2. Turn the Down Rod until tight. NOTE: Check that the Down Rod pin locations align with the mirror's internal bracket. Rotate the Down Rod until the holes align. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 15 4. Reinsert the M5 screw with an included split washer [203-1696] through the mirror bracket and Down Rod. Attach the remaining split washer and hex nut on the other side of the Mirror Bracket. If needed, adjust the height before fully tightening the hardware. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 16: Final Assembly
1. With a second person, lift and hold the back panel in place and attach it to the mirror with the screws previously set aside. 2. Turn the set screw on the back of the Ceiling Adapter to lock the mirror angle. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376...
Page 17: Use And Maintenance
When cleaning, spray the cloth, not the cabinet, mirror, or surround surfaces. Do not use abrasive cleansers on any part of the product. No Ammonia No Ammonia Sans Ammoniac No Vinegar Sin Amoniaco No Vinegar Sans Vinaigre Sin Vinagre © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. Part no. CB-209-1455 01/25/2024 800.877.2376 www.robern.com Sculpt Hanging Mirror Installation...
Page 18: Warranty
ROBERN in writing within one (1) year from the date of delivery. ROBERN is not responsible for installation costs. The warranty is void in the event the product is damaged in transit, or if damage or failure is caused by abuse, misuse, abnormal usage, faulty installation, damage in an accident, improper maintenance, or any repairs other than those authorized by ROBERN.
Page 19 Robern. concessionnaire ou directement avec Robern. Garantía limitada — Un año Garantie limitée — Un an © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 20: Remarques
50 lbs (23 kg). 50 lbs (23 kg). CONSERVER CES INSTRUCTIONS GUARDE ESTAS INSTRUCCIONES © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 21: Outils Nécessaires
* Selon l'installation requise, toutes les pièces ne seront pas utilisées. Extensión de Varilla * Dependiendo de la instalación requerida, no se utilizarán todas las piezas. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 22: Dimensions De La Mise En Page
45" (1143mm) Altura Recomendada 45” 42-1/2” (1143mm) Altura (1079.5mm) Recomendada © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 23 Minimum Distance to Wall 2-1/2” (63.5mm) 1-9/16” 1-1/8” (40mm) (29mm) © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 24: Hauteur De L'arc
+ Varillas de Extensión 12" y 24" Hauteur Totale Total Altura Total Height © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 25: Hauteur De La Pilule
+ Varillas de Extensión 12" y 24" Hauteur Totale Total Altura Total Height © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 26: Montage Au Plafond
0° 45° © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 27 [203-1678]. Serrez l'écrou hexagonal à l'aide d'une clé de [203-1678]. Apriete la tuerca hexagonal con una llave de 11/16".d'une clé de 11/16". 11/16". © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 28 1” 1/2” Wall Surface Distancia a la Pared (25mm) (13mm) © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 29 Con un destornillador de punta plana, gire la Tuerca de l'Écusson soit bien serré au plafond. Manguito hasta que el escudo quede ajustado al techo. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 30: Assemblage Du Miroir
© 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376...
Page 31 4. Según sea necesario, conecte la extensión de varilla tringle fourni [219-1747]. usando el conector de varilla provisto [219-1747]. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 32: Montage Du Miroir
Gire la varilla tringle jusqu'à ce que les trous soient alignés. hasta que los agujeros se alineen. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 33 Si es necesario, ajuste la altura antes de apretar completamente los herrajes. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 34: Assemblage Final
2. Gire el tornillo de fijación en la parte posterior del adaptador plafond pour verrouiller l'angle du miroir. de techo para bloquear el ángulo del espejo. © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com...
Page 35: Uso Y Mantenimiento
Sin Vinagre Sin Amoniaco No Vinegar Sans Vinaigre Sin Vinagre © 2024 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A. No. de pièce / Pieza n.° CB-209-1455 01/25/2024 800.877.2376 www.robern.com Miroir Suspendu de Sculpt / Espejo Colgante Sculpt...
Page 36: Garantía
à ROBERN par écrit dans un délai d'un (1) en material o mano de obra y que se reporten a ROBERN por escrito an suivant la date de livraison. ROBERN n'est pas responsable des frais en menos de un (1) año a partir de la fecha de entrega.
