  • Page 1 INSTRUCTIONS PX2 ADVANCED LIGHTING CONTROLLER APDPX2...

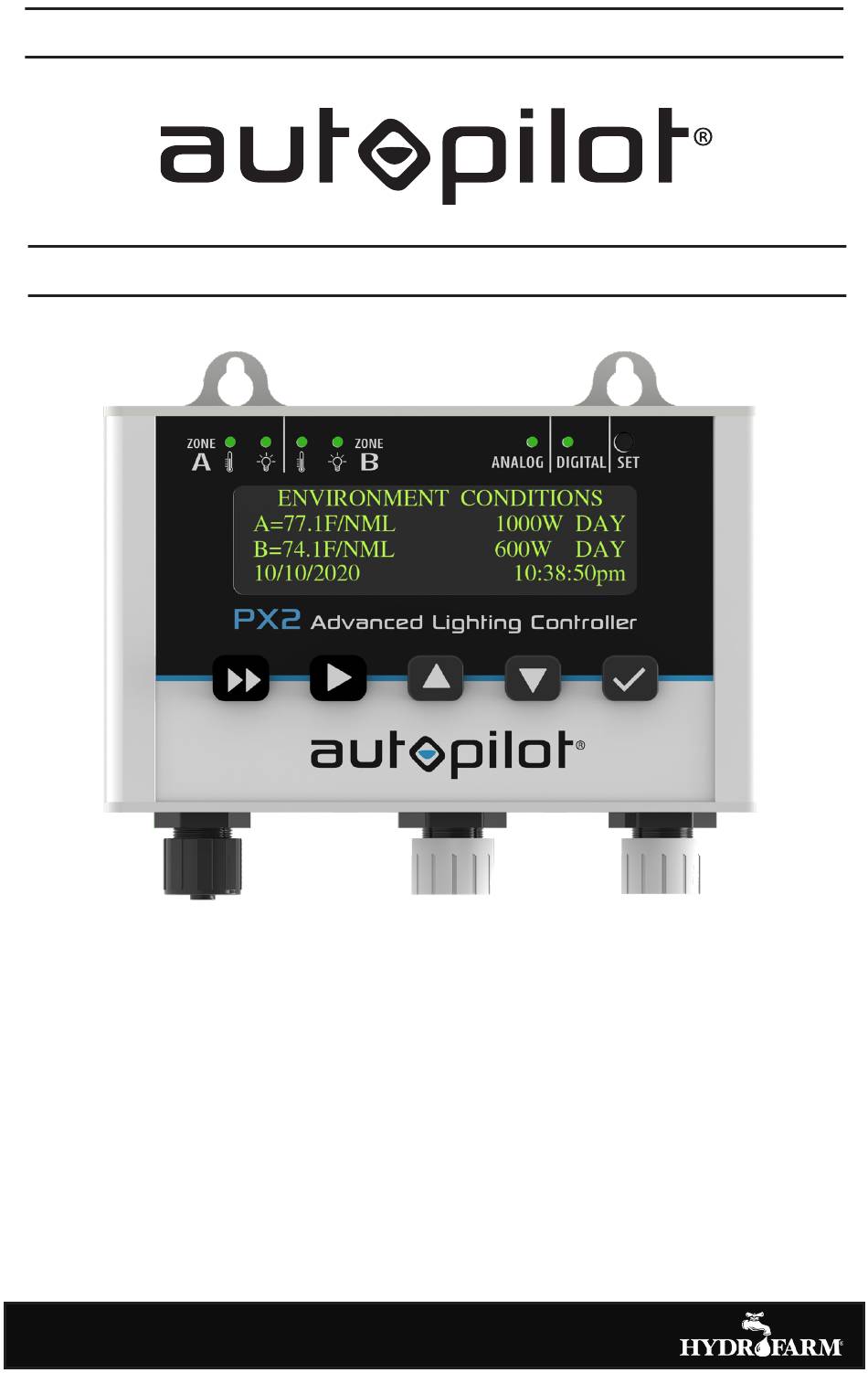

  • Page 2 OVERVIEW The Autopilot PX2 Advanced Lighting Controller provides precision photoperiod control of up to 512 fixtures in two independently controlled zones, all from one centralized location. Designed to work with any controllable Phantom or Core HID fixtures, as well as PHOTOBIO and Phantom LED fixtures, the PX2 can control 512 digital HID fixtures (256 per zone), or 25–100 analog LED fixtures (depending on installation differences).

  • Page 3: Installation

    OVERVIEW button Turn the page Cursor Right Increase Decrease Menu/ Confirm/Save 5" (127.5 mm) Power supply port Temperature probe port Zone A Signal port Zone A Temperature probe port Zone B Signal port Zone B INSTALLATION INSTALLING THE PX2 Mounting holes 1.
  • Page 4 Power unit % or W Hour format 12H or 24H mode Time Hours/Minutes (AM/PM will adjust automatically) Date Month/Day/Year Reset Resets to factory default settings 3. Repeat step 2 to set all values. 4. Press to save the settings. Hydrofarm.com...
  • Page 5 INSTRUCTIONS ZONE A SETUP Press s to cycle through the following options: Zone A Setup; Zone A Output Schedule; Zone B Setup; Zone B Output Schedule; and System Setting. NOTE: All settings must be saved by pressing for the controller to operate. Pressing twice will take you back to the ENVIRONMENT CONDITIONS home screen.

  • Page 6: Led Indicators

    The ANALOG and DIGITAL indicators are both on. E, F ZONE A is the analog signal output, and ZONE B is the digital signal output. The output signal mode can be switched by clicking the SET button with a pen. Hydrofarm.com...

  • Page 7: Troubleshooting

    TROUBLESHOOTING PROBLEM CHECK SOLUTIONS Unplug DC connector from the Check if the power supply/ controller momentarily then Screen does not work after adapter/controller works reconnect taking care to ensure connecting power supply normally the connector is fully inserted and tightened Check if the signal cable is Reconnect the signal cable and connected well and is fully...

  • Page 8: Cable Guide

    CABLE GUIDE Hydrofarm.com...
  • Page 9 CABLE GUIDE...
  • Page 10 CABLE GUIDE Hydrofarm.com...
  • Page 11 CABLE GUIDE...
  • Page 12 CABLE GUIDE Hydrofarm.com...
  • Page 13 CABLE GUIDE...
  • Page 14 CABLE GUIDE Hydrofarm.com...
  • Page 15 CABLE GUIDE...
  • Page 16 CABLE GUIDE Hydrofarm.com...
  • Page 17 CABLE GUIDE...
  • Page 18 CABLE GUIDE Hydrofarm.com...
  • Page 19 CABLE GUIDE...
  • Page 20 CABLE GUIDE Hydrofarm.com...
  • Page 21 CABLE GUIDE...
  • Page 22 CABLE GUIDE Hydrofarm.com...
  • Page 23 CABLE GUIDE...

  • Page 24: Warranty

    Hydrofarm’s warranty liability extends only to the replacement cost of the product. Hydrofarm will not be liable for any consequential, indirect, or incidental damages of any kind, including lost revenues, lost profits, or other losses in connection with the product. Some states do not allow limitation on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
