Summary of Contents for Hydrofarm Xtrasun LT1

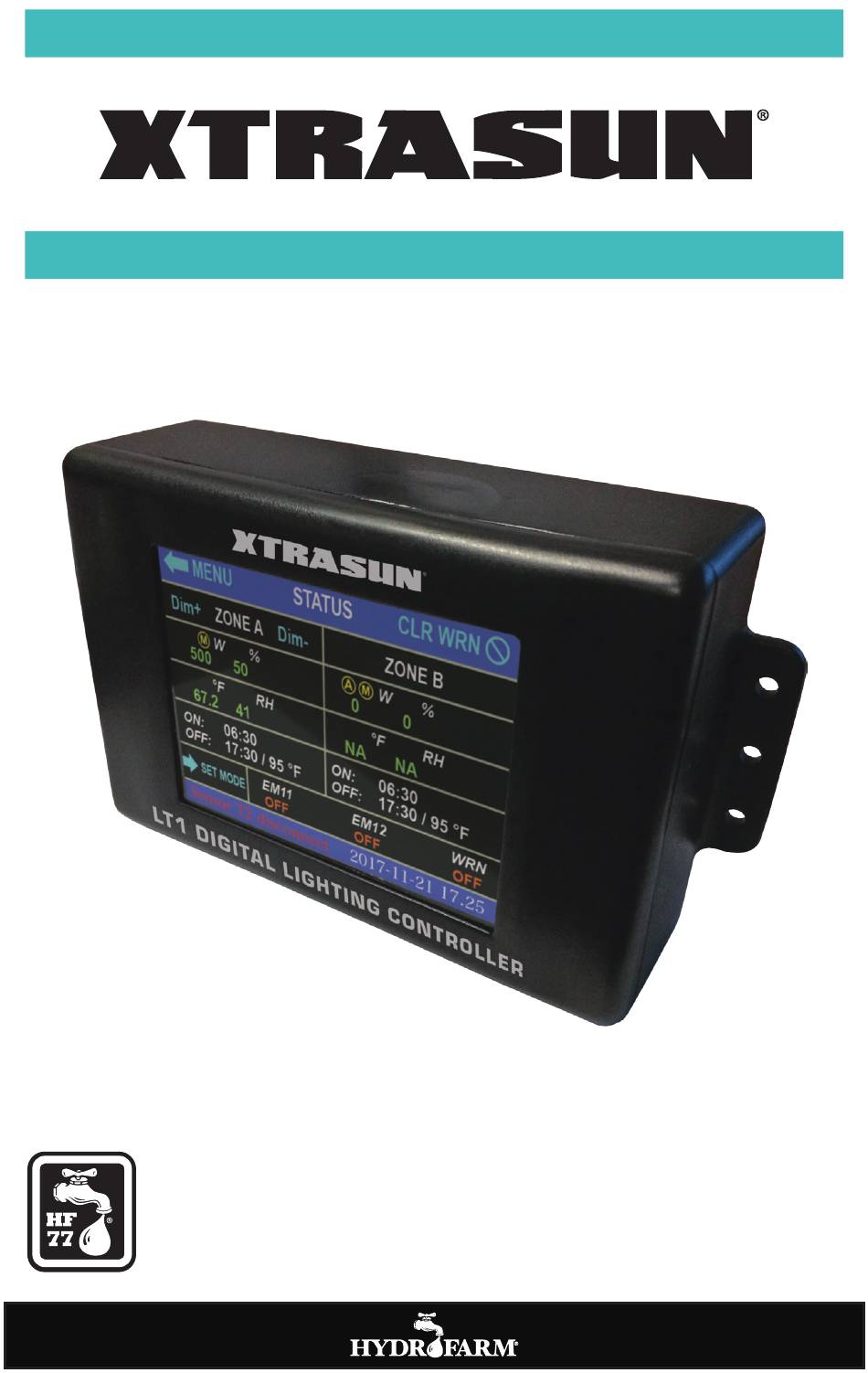

- Page 1 USER MANUAL LT1 DIGITAL LIGHTING CONTROLLER XTC1100...
-
Page 2: Parameter Interface
Hydrofarm.com... -
Page 3: Table Of Contents
TABLE OF CONTENTS OVERVIEW SPECIFICATIONS TOOLS NEEDED (FOR ASSEMBLY) PARTS LIST (WHAT’S IN THE BOX) DIMENSIONS PORT CONNECTIONS INSTALLATION CONNECTING THE CONTROLLER TO COMPLETE LIGHTING FIXTURES CONNECTING THE CONTROLLER TO REMOTE BALLASTS OPERATING INSTRUCTIONS MAIN MENU INTERFACE PARAMETER INTERFACE PARAMETER INTERFACE 2 SYSTEM INTERFACE WARRANTY... -
Page 4: Overview
LT1 offers Auto-dimming and Auto-shutdown in event of overtemperature, sunrise/sunset simulation, and two connections for external equipment such as dehumidifiers and air conditioning systems. For additional information on Xtrasun and Hydrofarm products, please visit Hydrofarm.com. SPECIFICATIONS Voltage input... -
Page 5: Parts List (What's In The Box)
PARTS LIST (WHAT’S IN THE BOX) A - Controller E - RJXX cables (2) (Length: 10'/3 m) B - Power adapter F - Screw pack (not shown) (6 pcs) C - Temperature/humidity sensor (2) (Length: 20'/6 m) D - Dry contact adapter... -
Page 6: Dimensions
DIMENSIONS LT1 DIGITAL LIGHTING CONTROLLER PORT CONNECTIONS 1 - 5V 2A DC power input port 6 - External extension port of Zone A output (normally open) 2 - 0-11V Zone B output port (RJ9) 7 - Zone B temperature sensor input 3 - 0-11V Zone A output port (RJ9) 8 - Zone A temperature sensor input 4 - Alarm light (normally open) -
Page 7: Installation
INSTALLATION CONNECTING THE CONTROLLER TO COMPLETE LIGHTING FIXTURES 1. Switch the rotary knob on all ballasts to EXT. 2. Insert the RJ9 end of the provided cable into the Zone A (P1) or Zone B (P2) port of the LT1 controller. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS • Touch “MENU” (1) to enter into the main menu. • Touch “CLR WRN” (2) to clear the warning information (as seen at point 13). (After the temperature returns to the normal value after auto dimming over T-Limit 1 or auto-shutoff over T-Limit 2.) •... -
Page 9: Main Menu Interface
refers to the auto-shutdown temperature. If the room temperature exceeds this value, the LT1 will shut the dimming output and close the WRN dry connect, also disconnect EMI1 and close EMI2. • Touch “SET MODE” (11) to choose the output mode. The output setting here is only temporarily effective (it is not stored when the unit is powered down). -
Page 10: System Interface
PARAMETER INTERFACE 2 • Touch “DEFAULT” (1) to restore factory default settings. It will display a confirmation prompt to avoid unintentional operation. • Sunrise/sunset setting. Touch the minutes field (2) to set a sunrise and sunset duration between 0-60 minutes. This setting is made the same way in Zone B to the right. Note: This feature is only available in Auto mode. - Page 11 TROUBLESHOOTING PROBLEM POSSIBLE REASON RESULT SOLUTION The icon displays in the corresponding TA (Zone A control zone. The temperature sensor) No temperature sensor Connect the output will be shut or TB (Zone B connection temperature sensor down and all dry temperature sensor) is contacts will be disconnected...
-
Page 12: Warranty
Hydrofarm will, at our discretion, repair or replace the XTC1100 covered under this warranty if it is returned to the original place of purchase. To request warranty service, please return the XTC1100, with original sales receipt and original packaging, to your place of purchase.
